Does Temperature Affect Aero Gas Turbine Fuel Flow Meters?

Temperature is one of the most significant variables affecting aero gas turbine fuel flow meter accuracy and reliability. In aviation applications where precision is paramount for safety, performance, and fuel efficiency, understanding how thermal conditions impact fuel flow measurement is essential for engineers, maintenance technicians, and operators alike.

This comprehensive guide explores the complex relationship between temperature and aviation fuel flow meters, examining the physical phenomena at play and practical solutions for maintaining measurement accuracy across extreme operating conditions.

Figure 1. Experimental air flow test setup used to evaluate temperature influence on fuel flow meter accuracy and system stability.

Fuel Flow Meters in Aero Gas Turbines

Jet engine fuel flow sensors serve as critical components in aircraft propulsion systems, continuously monitoring fuel consumption rates to ensure optimal engine performance, accurate fuel management, and compliance with safety protocols. These precision instruments must operate reliably across the extreme temperature ranges encountered in aviation—from sub-zero conditions at high altitude to elevated temperatures near hot engine components.

Modern gas turbine fuel metering systems employ various measurement technologies, each with distinct characteristics and temperature sensitivities. The most common types include volumetric flow meters, mass flow meters, turbine-type sensors, and Coriolis meters. Understanding how temperature affects each technology is fundamental to selecting appropriate instrumentation and implementing effective compensation strategies.

The Primary Temperature Effects on Fuel Flow Measurement

Fuel Density Variations

The most significant temperature effect on fuel flow meters stems from density changes in the fuel itself. Aviation fuels, typically Jet A or Jet A-1, exhibit substantial density variation with temperature—approximately 0.8 kg/m³ decrease per degree Celsius increase. This relationship directly impacts volumetric flow measurements.

When aircraft fuel flow meters measure volume, a temperature-induced density change means the actual mass of fuel differs from what raw volumetric data suggests. For instance, fuel measured at -40°C (typical cruise altitude temperature) contains significantly more mass per unit volume than the same fuel at +30°C (ground operations in hot climates). Without compensation, this can lead to measurement errors exceeding 10% across operational temperature ranges.

Need precision fuel flow metering solutions for your aircraft? Contact our aviation instrumentation experts for temperature-compensated systems designed for demanding aerospace environments.

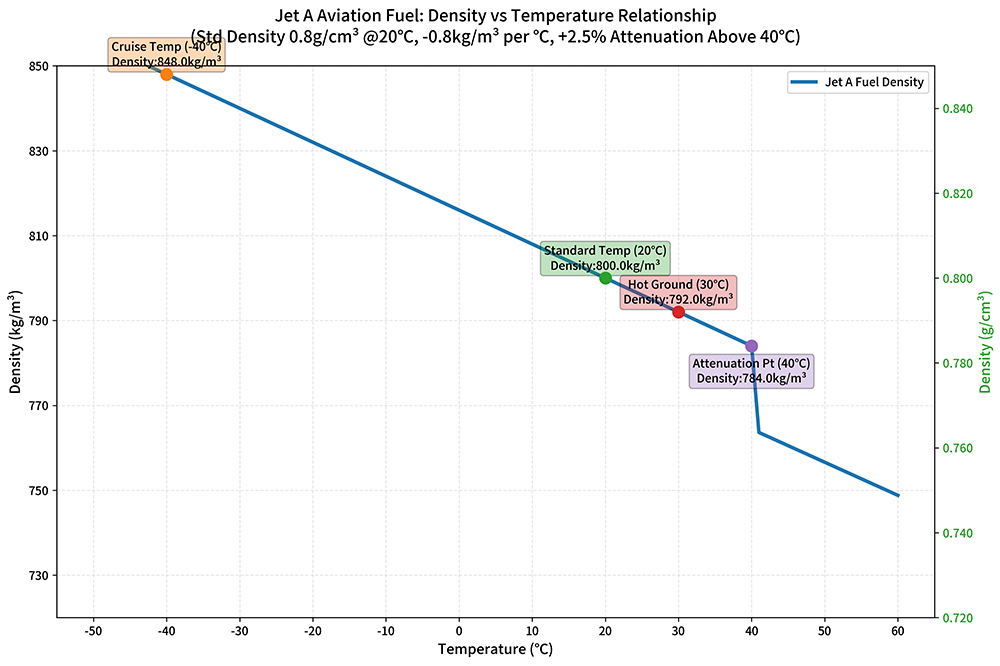

Figure 2. Relationship between fuel density and temperature — demonstrating how heat decreases density and affects flow meter readings.

Fuel Viscosity Changes

Temperature dramatically affects fuel viscosity, with warmer fuel flowing more easily than cold fuel. This viscosity variation impacts certain fuel flow transmitter technologies differently. Turbine-type meters experience changes in bearing friction and rotor dynamics as viscosity shifts, while positive displacement meters encounter varying internal leakage rates.

Cold, viscous fuel increases mechanical resistance in moving parts, potentially causing measurement lag or reduced response time. Conversely, hot fuel with reduced viscosity may increase internal bypass in volumetric meters, leading to under-registration. Aviation fuel metering devices must account for these viscosity-related phenomena to maintain accuracy specifications.

Thermal Expansion

The physical dimensions of jet fuel flow meter components change with temperature according to their thermal expansion coefficients. Meter bodies, rotors, gears, and chambers expand when heated and contract when cooled. These dimensional changes alter internal clearances and calibrated volumes.

For precision volumetric meters, even small dimensional changes translate to measurement errors. A meter body expanding by 0.1% due to temperature increase causes a corresponding shift in indicated flow rate. High-quality aircraft turbine fuel measurement systems use materials with low and well-characterized thermal expansion properties, combined with compensation algorithms that adjust readings based on operating temperature.

Electronic Component Performance

Modern gas turbine fuel flow meters incorporate sophisticated electronics for signal processing, transmission, and compensation. Temperature affects electronic component characteristics including sensor sensitivity, amplifier gain, and timing circuit frequencies. Semiconductor devices exhibit temperature-dependent behavior that must be compensated or controlled.

Temperature-stable electronics with wide operating ranges (-55°C to +125°C is common for aerospace applications) ensure consistent performance. Advanced systems employ temperature sensors integrated with flow meter electronics, enabling real-time compensation for thermal effects on both the mechanical measurement element and electronic signal chain.

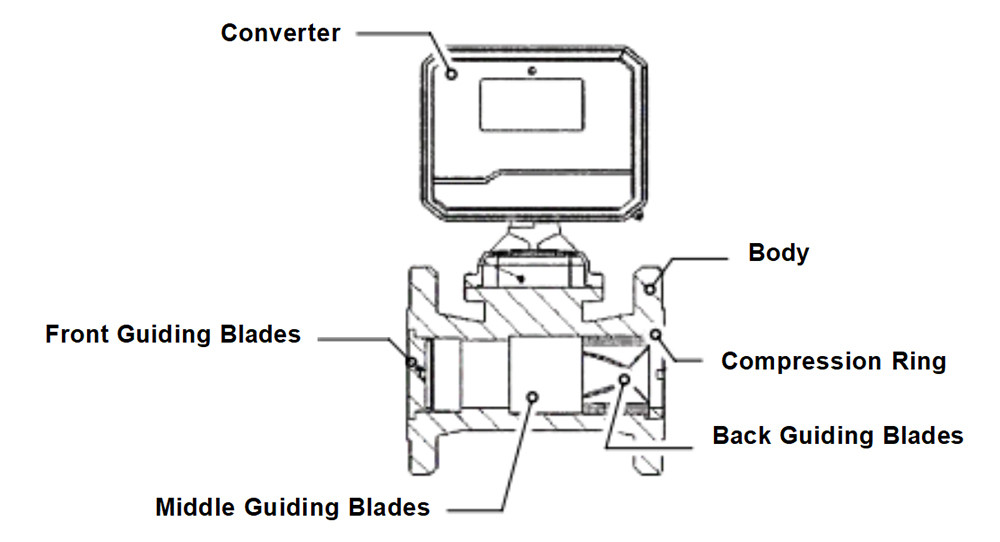

Figure 3. Internal structure of a turbine flow meter — illustrating key components responsible for accurate fuel flow measurement.

Concerned about measurement accuracy in extreme temperatures?  Request technical specifications today.

Temperature Sensitivity Across Different Meter Technologies

Volumetric vs. Mass Flow Measurement

Volumetric aviation fuel flow meters measure the volume of fuel passing through per unit time but require density information to determine mass flow. Since fuel density varies with temperature, volumetric meters without compensation produce readings that don’t reflect actual fuel mass delivered to the engine.

Mass flow meters, particularly Coriolis-type devices, directly measure mass independent of density variations. These fuel flow meter temperature insensitive designs maintain accuracy without complex compensation, making them increasingly popular for critical aerospace applications despite higher costs.

Turbine Flow Meters

Turbine-type jet engine fuel flow sensors use a rotor whose rotational speed correlates with flow velocity. Temperature affects rotor bearing friction, blade tip clearances, and fluid dynamics within the meter. Quality turbine meters incorporate temperature sensors and compensation algorithms that adjust the flow coefficient based on operating conditions.

Modern turbine meters achieve excellent accuracy (typically ±0.25% of reading) when properly compensated for temperature, pressure, and viscosity effects. They remain popular in aviation due to their proven reliability, compact size, and relatively simple mechanical design.

Coriolis Mass Flow Meters

Coriolis meters measure mass flow directly by detecting phase shifts in vibrating tubes caused by Coriolis forces acting on flowing fluid. While fundamentally less sensitive to density variations, they’re not entirely temperature-immune. Temperature affects tube material properties, mounting stresses, and electronics.

High-performance Coriolis aircraft fuel flow meter systems incorporate multiple temperature sensors throughout the meter assembly, enabling sophisticated compensation that maintains accuracy typically within ±0.1% across wide temperature ranges. This exceptional performance comes at premium cost and increased complexity.

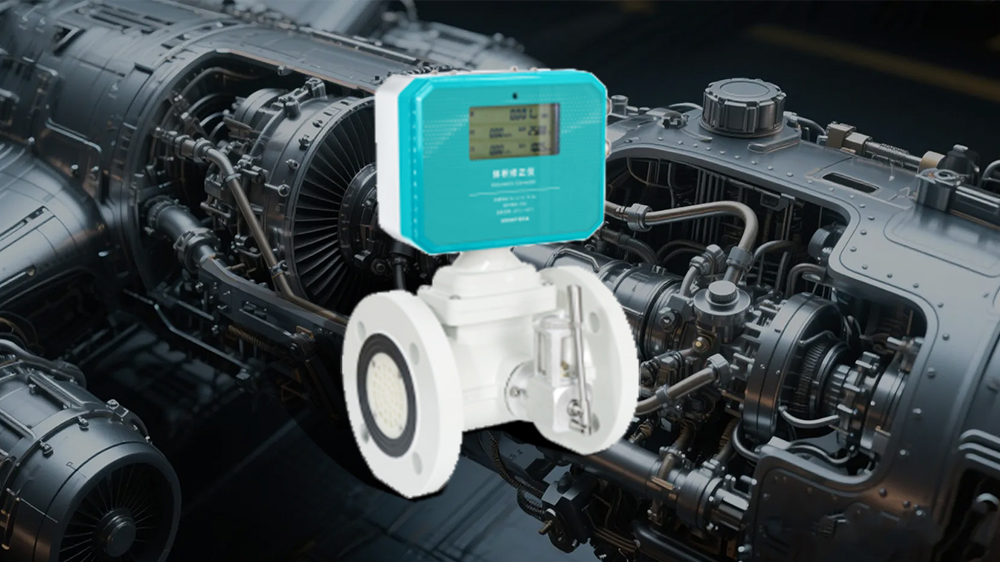

Figure 4. PokcenserTech’s fuel flow meter designed for aero engines, combining precision measurement with robust industrial-grade construction.

Temperature Compensation Strategies

Automatic Density Correction

Modern gas turbine fuel metering systems employ automatic temperature compensation using integrated temperature sensors that continuously monitor fuel temperature. The system applies density correction factors based on established fuel properties and measured temperature, converting volumetric readings to mass flow with high accuracy.

Compensation algorithms account for the specific fuel grade in use (Jet A, Jet A-1, JP-8, etc.) since different formulations exhibit slightly different temperature-density relationships. Advanced systems may also incorporate pressure compensation for comprehensive accuracy under varying conditions.

Calibration Procedures

Proper calibration at multiple temperature points establishes the meter’s performance envelope. Aviation fuel flow measurement calibration typically occurs at minimum, normal, and maximum expected operating temperatures using certified reference standards. The resulting calibration curves enable accurate interpolation across the full temperature range.

Regular recalibration—typically annually or per manufacturer recommendations—ensures continued accuracy as components age and characteristics drift. Temperature-controlled calibration facilities capable of simulating operational conditions are essential for aerospace-grade certification.

Real-Time Correction Algorithms

Sophisticated fuel flow transmitter systems implement dynamic correction algorithms that adjust readings in real-time based on multiple input parameters including temperature, pressure, flow rate, and fuel properties. These algorithms may incorporate machine learning elements that refine compensation accuracy over time based on operating history.

Digital signal processing enables complex calculations without adding significant cost or weight to the meter assembly. Modern microprocessors handle multivariable compensation seamlessly, delivering corrected mass flow data to engine control systems with minimal latency.

Extreme Temperature Challenges in Aviation

High-Altitude Cold Conditions

During cruise flight at 35,000-40,000 feet, ambient temperatures reach -55°C or lower. Fuel in wing tanks approaches these temperatures over extended flights. Jet fuel flow meters must maintain accuracy and mechanical function despite potential fuel waxing, increased viscosity, and extreme thermal contraction.

Cold-soak testing validates meter performance at temperature extremes. Heated variants exist for applications where fuel temperatures may drop below meter operating limits, though these add complexity, power consumption, and potential failure modes.

Engine Hot Zone Installations

Meters installed near hot engine components face opposite challenges—elevated temperatures that may exceed +150°C. Fuel passing through these regions experiences reduced density and viscosity. Meter materials must withstand thermal stress without degradation while maintaining calibration stability.

Thermal insulation, heat shields, and strategic placement minimize temperature exposure. Some installations incorporate fuel coolers upstream of critical measurement points to maintain more consistent conditions.

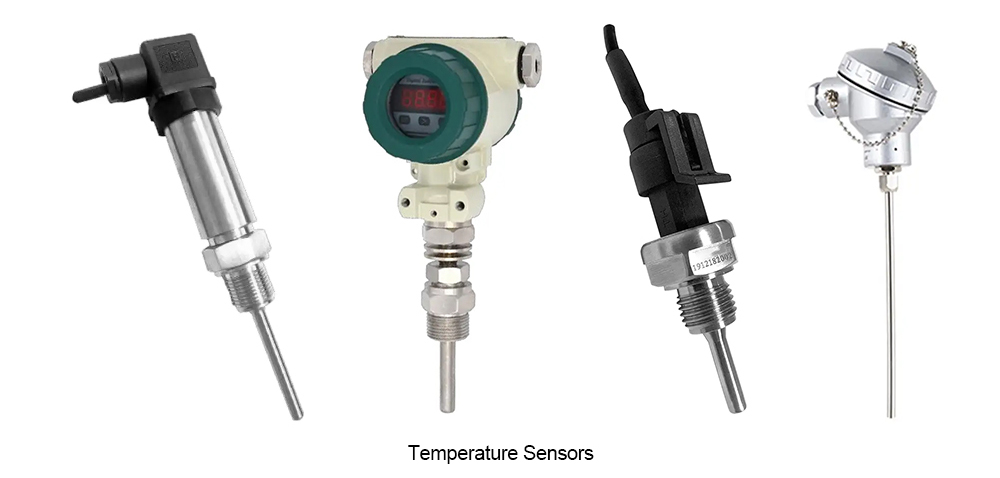

Figure 5. Temperature sensors applied in flow meter systems to correct measurement deviation caused by thermal expansion and fuel viscosity changes.

Thermal Transients

Rapid temperature changes during flight operations—takeoff, climb, cruise, descent—subject aircraft turbine fuel measurement systems to thermal stress and transient errors. Meters with large thermal mass respond slowly to temperature changes, potentially introducing temporary measurement errors during transitions.

Lightweight designs with rapid thermal response minimize transient effects. Predictive algorithms that anticipate temperature changes based on flight phase can pre-emptively adjust compensation factors, reducing errors during dynamic conditions.

Ensure your fuel flow metering meets the most stringent aviation standards. Download our free whitepaper: “Temperature Management in Aerospace Fuel Measurement Systems.”

Maintenance and Best Practices of Aero Gas Turbine Fuel Flow Meters

Regular inspection and calibration of aero gas turbine fuel flow meters ensures continued accuracy despite temperature cycling and aging effects. Key maintenance activities include:

• Temperature sensor verification and replacement per schedule
• Leak testing of meter seals and connections that may degrade with thermal cycling
• Calibration verification at operational temperature points
• Electronic system diagnostics to detect compensation algorithm failures
• Physical inspection for corrosion, contamination, or mechanical wear accelerated by temperature extremes

Documentation of temperature conditions during operation helps identify measurement anomalies and predict maintenance needs. Trending analysis comparing flow data against temperature records reveals developing issues before they cause significant errors.

Temperature profoundly affects aero gas turbine fuel flow meter performance through multiple physical mechanisms including fuel property changes, mechanical dimensional shifts, and electronic component variations. Understanding these effects is essential for accurate aviation fuel flow measurement in the demanding thermal environment of aircraft operations.

Modern compensation strategies including automatic density correction, multi-point calibration, and real-time algorithms enable high accuracy despite temperature extremes from -55°C to +150°C. Selecting appropriate meter technology—volumetric with compensation, turbine, or Coriolis mass flow—depends on accuracy requirements, installation constraints, and budget considerations.

Proper installation, regular maintenance, and adherence to calibration schedules ensure jet engine fuel flow sensorsdeliver the precision performance required for safe, efficient aircraft operations. As technology advances, increasingly sophisticated solutions will further minimize temperature-related measurement uncertainties.
