Mastering Temperature Sensors in Automation Systems: A Comprehensive Guide

Temperature sensors are essential for industrial automation, ensuring precise control and operational efficiency. This guide provides a detailed overview of temperature sensors, their types, selection criteria, and applications. Understanding these components helps optimize system performance and reliability.

Understanding the Role of Temperature Sensors in Automation

Accurate temperature monitoring is critical in various industrial processes. Temperature directly impacts product quality, operational safety, and energy consumption. Maintaining optimal temperatures prevents equipment damage and ensures consistent output.

Why Accurate Temperature Monitoring is Crucial for Industrial Processes

Precise temperature data allows for real-time adjustments, preventing deviations that could lead to costly errors or safety hazards. In manufacturing, even small temperature fluctuations can alter material properties, affecting the final product. For example, in chemical reactions, temperature control is paramount for desired yields and safety. In many applications, temperature sensors are integrated with other devices, such as the PT6500 Online TDS Meter Controller, which features automatic temperature compensation for accurate TDS measurement.

Impact on Efficiency, Safety, and Product Quality

Temperature control directly influences energy efficiency. Overheating or underheating processes waste energy and increase operational costs. Safety is also a major concern; extreme temperatures can create hazardous conditions, leading to equipment failure or accidents. Consistent temperature regulation ensures product quality, meeting stringent industry standards. Optimizing these factors requires reliable temperature sensing.

Types of Temperature Sensors for Automation Systems

Various types of temperature sensors cater to different industrial needs. Each type offers unique advantages in terms of accuracy, range, and response time. Selecting the appropriate sensor type is crucial for effective process control.

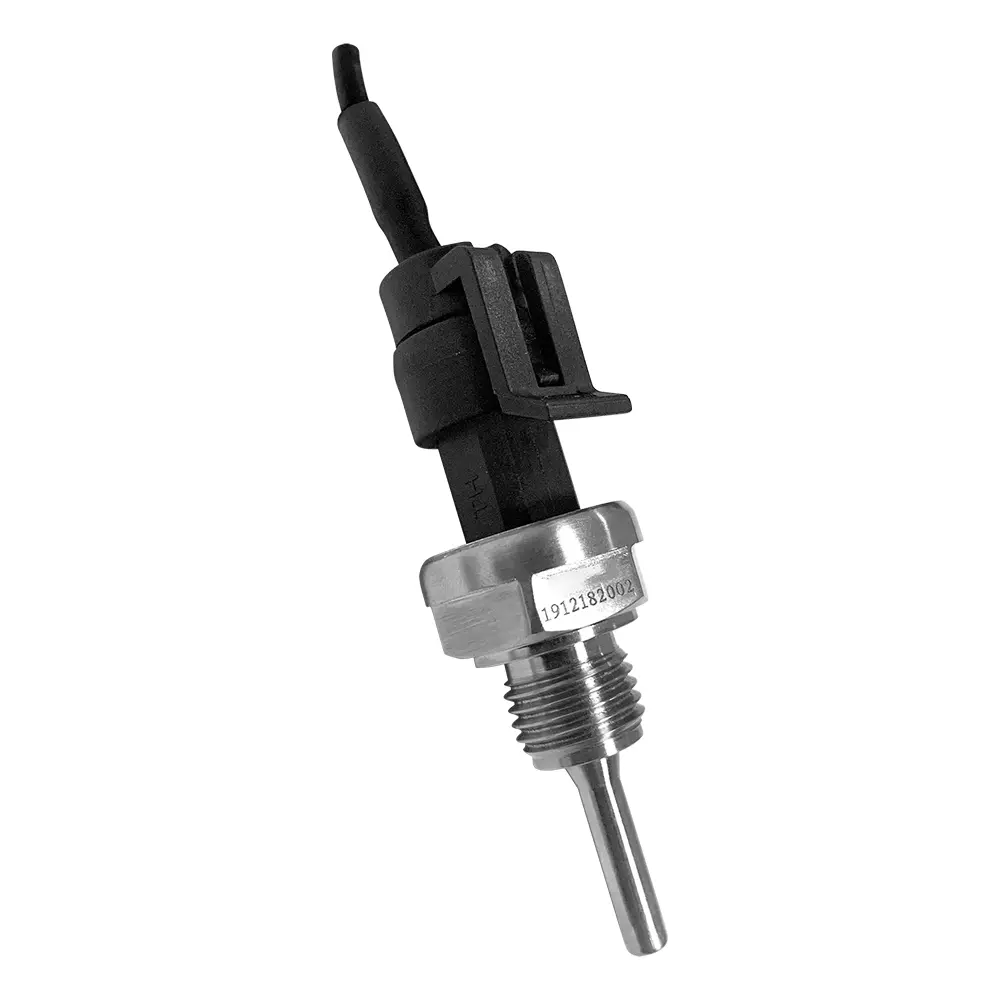

Resistance Temperature Detectors (RTDs) and Their Applications

Resistance Temperature Detectors (RTDs) measure temperature by correlating resistance with temperature. They are highly accurate and stable, making them suitable for applications requiring precision. Platinum RTDs, like Pt100 and Pt1000, are common due to their linearity and wide operating range. Our PWT4100 RTD is an example of a reliable RTD sensor.

Applications:

• Industrial Ovens: Monitoring precise temperatures for curing and drying processes.
• Pharmaceutical Production: Ensuring sterile environments and accurate drug synthesis.
• HVAC Systems: Maintaining consistent climate control in large buildings.

Thermocouples: Principles, Types, and Industrial Uses

Thermocouples measure temperature using the Seebeck effect, generating a voltage proportional to the temperature difference between two dissimilar metals. They are robust and can withstand high temperatures, making them ideal for harsh industrial environments. Our PWT4400 Armored Thermocouple Temperature Sensor offers durability in demanding conditions.

Types of Thermocouples:

• Type K: Nickel-Chromium/Nickel-Aluminum, widely used due to its broad temperature range (-200 to 1250 °C) and affordability.
• Type J: Iron/Constantan, suitable for slightly lower temperature ranges (-40 to 750 °C) and often used in older equipment.
• Type T: Copper/Constantan, offers high accuracy for lower temperatures (-200 to 350 °C).

Thermistors: Characteristics and Niche Applications

Thermistors are temperature-sensitive resistors whose resistance changes significantly with temperature. They are highly sensitive and cost-effective, but typically operate within a narrower temperature range compared to RTDs and thermocouples. They are commonly used in applications where small temperature changes need to be detected quickly.

Characteristics:

• NTC Thermistors: Negative Temperature Coefficient, resistance decreases as temperature increases.
• PTC Thermistors: Positive Temperature Coefficient, resistance increases as temperature increases.

Niche Applications:

• Medical Devices: Monitoring body temperature in critical care.
• Consumer Electronics: Overheat protection in batteries and power supplies.
• Automotive Systems: Engine temperature monitoring.

Infrared (Non-Contact) Temperature Sensors for Specific Environments

Infrared (IR) sensors measure temperature remotely by detecting the infrared radiation emitted by an object. This non-contact method is valuable in applications where direct contact is impossible or unsafe. Examples include measuring the temperature of moving parts or extremely hot surfaces.

Specific Environments:

• High-Temperature Furnaces: Monitoring molten metal temperatures without physical contact.
• Food Processing: Ensuring food safety by measuring surface temperatures.
• Hazardous Environments: Avoiding direct contact with corrosive or volatile substances.

Key Considerations for Selecting Temperature Sensors

Choosing the right temperature sensor involves evaluating several factors to ensure optimal performance and cost-effectiveness. These factors include accuracy, environmental conditions, integration capabilities, and maintenance requirements.

Accuracy, Range, and Response Time Requirements

The required accuracy depends on the application. High-precision processes, such as those in the Pharmaceutical Industries, demand sensors with minimal error margins. The temperature range must match the process conditions, from cryogenic to extreme heat. Response time is crucial for dynamic processes where rapid temperature changes occur. For instance, a fast response is vital in safety-critical systems.

Environmental Factors: Harsh Conditions and Material Compatibility

Industrial environments often present challenges like vibration, moisture, corrosive chemicals, or electromagnetic interference. Sensors must be built with materials compatible with the media being measured and the surrounding environment. For instance, our PCS1753CD Plastic pH Sensor is made of PP (polypropylene) for chemical resistance and features IP68 waterproofing for durability in harsh conditions. For extremely hazardous environments, considering hazardous area sensors is essential.

Integration with Automation Systems: Analog vs. Digital Outputs

Sensors need to integrate seamlessly with existing automation infrastructure. Analog outputs (e.g., 4–20 mA, 0–10 V) are common for simpler systems, while digital outputs (e.g., RS485 Modbus RTU) offer enhanced data integrity and remote monitoring capabilities. Many of our products, such as the PT4000 ORP Controller, offer both analog and digital output options, providing flexibility for various control systems.

Calibration and Maintenance for Long-Term Reliability

Regular calibration ensures the accuracy of temperature sensors over time. Maintenance schedules should account for sensor type, operating conditions, and manufacturer recommendations. Proper calibration and maintenance extend sensor lifespan and prevent costly downtime.

Advanced Features and Technologies in Modern Temperature Sensing

Modern temperature sensors incorporate advanced features to improve performance and integration. These innovations enhance precision, enable predictive maintenance, and facilitate remote control.

Automatic Temperature Compensation for Enhanced Precision

Temperature compensation corrects measurement errors caused by ambient temperature changes affecting the sensor itself. This feature is particularly useful in applications where environmental temperatures fluctuate significantly, ensuring that readings remain accurate. Our PT6500 Online TDS Meter Controller includes automatic temperature compensation.

Data Logging and Trend Analysis for Predictive Maintenance

Many modern sensors offer data logging capabilities, storing historical temperature data. This data can be used for trend analysis, identifying patterns that indicate potential equipment issues before they lead to failure. This approach supports predictive maintenance strategies, reducing unexpected downtime. The PT6000 Online Turbidity Meter is an example of a device with data logging and trend charting features.

Remote Monitoring and Control via RS485 Modbus RTU

RS485 Modbus RTU communication allows for remote monitoring and control of temperature sensors over long distances. This digital protocol provides robust and reliable data transmission, enabling operators to manage processes from a central control room or even off-site. Our PCS2700CD Digital ORP Sensor utilizes RS485 Modbus RTU for remote monitoring.

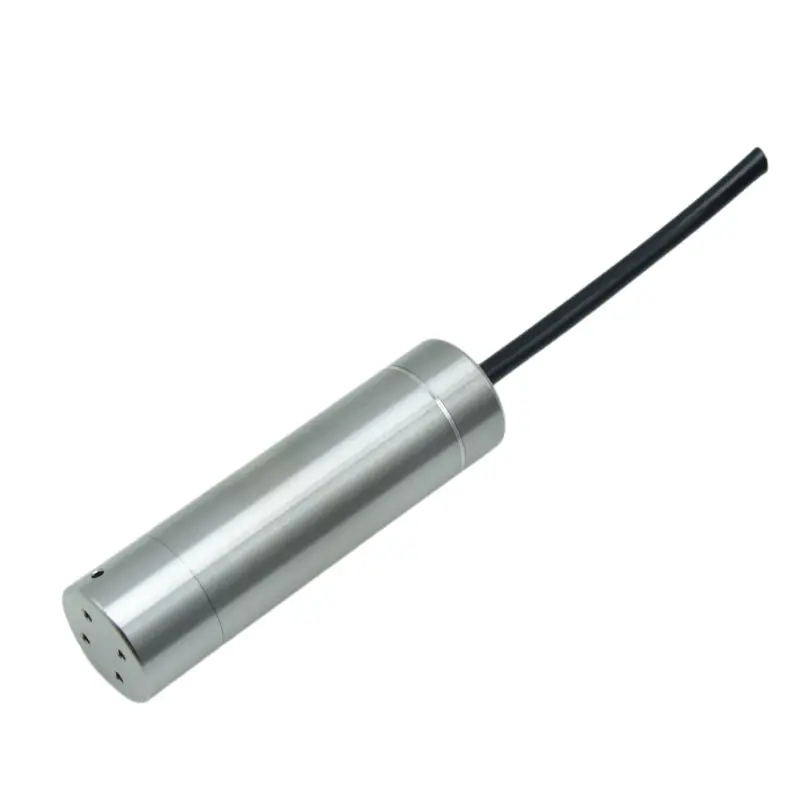

Pokcenser Automation Technology Company Limited’s Solutions for Integrated Temperature Measurement

Pokcenser Automation Technology Company Limited offers a range of high-quality temperature sensors and integrated solutions. Our products are designed for durability, accuracy, and seamless integration into diverse automation systems. We provide reliable tools for critical temperature monitoring needs. For instance, the PWP412-T3 SDI-12 Hydrostatic Water Level and Temperature Transmitter combines level and temperature measurement in a single, robust unit, ideal for demanding applications like deep well water level transmitter.

Applications of Temperature Sensors Across Industries

Temperature sensors are indispensable across a wide array of industries, each with unique requirements and challenges.

Process Control in Manufacturing and Chemical Plants

In manufacturing, temperature sensors regulate heating and cooling processes, ensuring product consistency and quality. In chemical processing plants, precise temperature control is vital for reaction kinetics and safety. For example, our sensors monitor reactor temperatures to prevent runaway reactions.

HVAC Systems and Building Automation

Temperature sensors are fundamental to HVAC systems, maintaining comfortable indoor climates and optimizing energy usage. In building automation, they contribute to smart energy management by adjusting heating and cooling based on occupancy and external conditions. This contributes to overall Environmental Monitoring efforts.

Food and Beverage Processing and Storage

Food safety and quality depend heavily on accurate temperature control during processing, cooking, and storage. Sensors prevent bacterial growth and maintain product integrity. For example, our solutions ensure optimal temperatures in pasteurization and refrigeration units.

Environmental Monitoring and Water Treatment

Temperature sensors are crucial for monitoring water quality in natural bodies and treatment plants. They help track environmental changes and ensure compliance with regulatory standards. For example, our sensors contribute to effective Water and Wastewater Treatment by monitoring influent and effluent temperatures.

Enhance Your Automation with Precise Temperature Sensing

Accurate temperature measurement is vital for ensuring efficiency, safety, and quality in industrial processes. Choosing the correct sensor type and integrating it effectively into your automation system can significantly improve operational outcomes.

Explore our comprehensive range of temperature sensors and integrated solutions designed to meet the most demanding industrial requirements. Contact our specialists today to discuss your specific application needs and discover how our advanced sensing technologies can optimize your operations.

FAQs

What are the main types of temperature sensors used in automation?

The primary types of temperature sensors commonly used in automation are Resistance Temperature Detectors (RTDs), thermocouples, thermistors, and infrared (non-contact) sensors. Each type offers distinct advantages in terms of accuracy, temperature range, and response time, making them suitable for various industrial applications.

How does temperature compensation work in a sensor?

Temperature compensation in a sensor adjusts the output readings to account for the effects of ambient temperature changes on the sensor’s own components. This ensures that the measured temperature reflects the actual process temperature, rather than being influenced by external thermal conditions, thereby enhancing measurement accuracy.

Why is calibration important for temperature sensors?

Calibration is crucial for temperature sensors to maintain their accuracy and reliability over time. Sensors can drift from their initial calibration due to aging, environmental factors, or prolonged use. Regular calibration against known standards ensures that the sensor provides precise measurements, preventing errors that could impact process quality or safety.

Can temperature sensors integrate with existing automation systems?

Yes, modern temperature sensors are designed for seamless integration with various automation systems. They typically offer standard output signals like 4–20 mA analog outputs or digital communication protocols such as RS485 Modbus RTU. This flexibility allows them to connect with PLCs, DCS systems, and other control platforms.

What factors should be considered when choosing a temperature sensor?

When selecting a temperature sensor, key factors include the required accuracy and measurement range, the environmental conditions (e.g., corrosive media, vibration), the desired response time, and compatibility with existing automation systems. Material compatibility and ease of calibration are also important for long-term reliability and maintenance.
