Optimizing Drinking Water Treatment with Advanced Chlorine Sensors

Ensuring safe drinking water is a fundamental responsibility for municipalities and industries worldwide. Effective disinfection is crucial, and chlorine remains a primary agent for this purpose. However, maintaining optimal chlorine levels requires precise and continuous monitoring. This ensures both public health protection and compliance with stringent regulatory standards. Our focus here is on how advanced chlorine sensors provide the accuracy and reliability needed for modern drinking water treatment.

The Critical Role of Chlorine Monitoring in Drinking Water Safety

Chlorine is a powerful disinfectant, effectively eliminating harmful pathogens in water. Its application requires careful management. Too little chlorine risks microbial contamination, while excessive amounts can lead to unpleasant tastes, odors, and the formation of disinfection byproducts (DBPs) that pose health concerns. Therefore, real-time, accurate chlorine monitoring is not merely a best practice; it is an absolute necessity.

Why Residual Chlorine Measurement is Essential

Residual chlorine refers to the amount of chlorine remaining in water after initial disinfection, ensuring continued protection against microbial regrowth in the distribution system. Measuring this residual is essential for several reasons:

• Public Health Protection: Adequate residual chlorine prevents waterborne diseases. This is vital for community well-being.
• Process Optimization: Precise control of chlorine dosage minimizes chemical waste and operational costs. It also ensures efficient disinfection.
• System Integrity: Monitoring residual chlorine throughout the distribution network helps identify potential contamination points or system breaches.
• Consumer Confidence: Consistent water quality, free from excessive chlorine taste or odor, builds trust among consumers.

Health and Regulatory Compliance Standards

Global regulatory bodies, such as the World Health Organization (WHO) and local environmental protection agencies, set strict limits on chlorine residuals in drinking water. For instance, many regulations require a free chlorine residual of 0.2 to 2.0 mg/L in the distribution system. Non-compliance can result in significant fines, public health crises, and severe reputational damage. Advanced chlorine sensors play a key role in meeting these standards consistently.

Understanding Chlorine Sensor Technologies for Water Treatment

Chlorine sensing technology has evolved considerably, offering various methods for accurate measurement. Understanding these technologies helps in selecting the most appropriate solution for specific applications.

Amperometric and Potentiometric Sensor Principles

Two primary types of chlorine sensors dominate the market: amperometric and potentiometric.

• Amperometric Sensors: These sensors measure the electrical current generated by the electrochemical reduction of chlorine at an electrode surface. They are highly sensitive and provide a linear response to chlorine concentration. Amperometric sensors typically require a stable flow rate and pH for optimal performance.
• Potentiometric Sensors: These sensors measure the potential difference between a sensing electrode and a reference electrode. The potential varies with the concentration of chlorine ions. Potentiometric sensors are often more robust in varying water conditions but may have a slower response time compared to amperometric types.

Both technologies offer continuous online monitoring, providing immediate data for process control.

Key Performance Indicators for Chlorine Sensors

When evaluating chlorine sensors, several performance indicators are critical:

• Accuracy: The sensor’s ability to provide readings close to the true chlorine concentration. A high accuracy, typically ±5% F.S., ensures reliable data for critical decisions.
• Stability: The sensor’s ability to maintain its accuracy over time without frequent calibration. This reduces maintenance requirements and operational interruptions.
• Response Time: The speed at which the sensor reacts to changes in chlorine concentration. A fast response time, often within seconds, is crucial for real-time process control.
• Measurement Range: The minimum and maximum chlorine concentrations the sensor can accurately detect. Common ranges for drinking water are 0–5.0 mg/L or 0–20 mg/L.
• Interference Resistance: The sensor’s ability to operate accurately in the presence of other chemicals or water quality parameters.
• Maintenance Requirements: The ease and frequency of cleaning, calibration, and electrode replacement.

Selecting the Right Chlorine Sensor for Your Application

Choosing the optimal chlorine sensor involves balancing technical specifications with practical operational needs. The goal is to ensure reliable, cost-effective monitoring.

Factors Influencing Sensor Choice and Performance

Several factors influence the selection of a chlorine sensor:

• Water Matrix: The presence of other chemicals, pH fluctuations, and temperature variations can affect sensor performance. For example, some sensors are sensitive to pH changes, requiring additional pH compensation.
• Installation Environment: Consider whether the sensor will be used for inline, immersion, or bypass applications. Environmental factors like temperature, humidity, and potential for fouling also play a role.
• Regulatory Requirements: Specific local and national regulations may dictate the required accuracy and measurement range.
• Budget and Maintenance: Initial cost, calibration frequency, and electrode lifespan all contribute to the total cost of ownership.
• Integration with Control Systems: Ensure compatibility with existing SCADA or PLC systems, often through 4–20 mA or RS485 Modbus RTU outputs.

Product Spotlight: Pokcenser Automation’s CS5530C Residual Chlorine Electrode and Meter

Our CS5530C Residual Chlorine Electrode and Meter exemplifies advanced chlorine sensing technology. It is a high-precision instrument designed for online measurement of residual chlorine in water.

Key Features:

• Color LCD Display: Provides clear and intuitive readings, enhancing user experience.
• Multiple Relay Controls: Three control switches with configurable high/low limits and hysteresis settings enable automated process adjustments.
• Constant Pressure Measurement: This method ensures stable and accurate readings, crucial for critical applications.

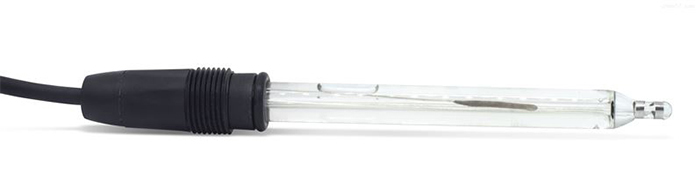

• Flow-Through Electrode: Designed for continuous water monitoring, providing real-time data.
• Automatic Calibration: Multiple calibration functions maintain measurement accuracy with minimal manual intervention.
• Robust Communication: Supports 4–20 mA and RS485 Modbus RTU outputs for flexible integration into existing control systems.

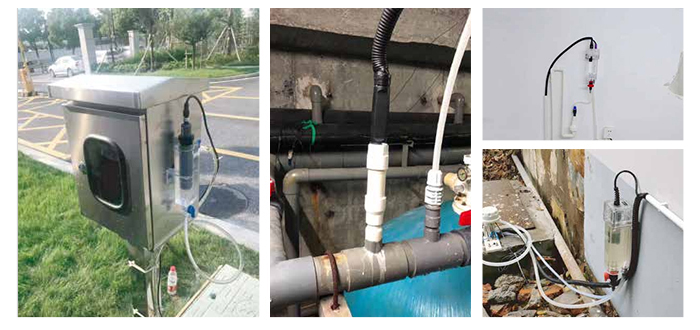

Applications:

The CS5530C is ideal for a wide range of applications, including:

• drinking water systems
• Water and Wastewater Treatment
• River and lake water quality monitoring
• Food and tap water quality control
• Electroplating processes
• Paper making industry

This product delivers reliable performance for diverse water quality monitoring needs.

Installation, Calibration, and Maintenance of Chlorine Sensors

Proper installation, regular calibration, and diligent maintenance are crucial for maximizing the lifespan and accuracy of chlorine sensors. These practices ensure consistent and reliable data.

Best Practices for Accurate and Reliable Measurement

1. Site Selection: Choose an installation location that provides a representative sample of the water, away from turbulence or dead zones.
2. Flow Control: Maintain a stable and consistent flow rate through the sensor’s flow cell. Fluctuations can affect readings.
3. pH and Temperature Compensation: If the sensor does not have built-in compensation, ensure external pH and temperature probes are properly integrated.
4. Grounding: Proper grounding minimizes electrical interference, which can impact measurement accuracy.
5. Initial Calibration: Perform a two-point calibration using certified chlorine standards upon installation.
6. Regular Cleaning: Periodically clean the sensor electrode to prevent fouling from biofilm or mineral deposits.
7. Scheduled Recalibration: Calibrate the sensor regularly, typically weekly or monthly, depending on water quality and manufacturer recommendations.
8. Electrode Replacement: Replace electrodes according to the manufacturer’s specified lifespan, usually every 6-12 months.

Troubleshooting Common Issues with Chlorine Sensors

Common issues with chlorine sensors include drift, inaccurate readings, and no response. Here are some troubleshooting steps:

• Drifting Readings:
  • Check for electrode fouling and clean as necessary.
  • Verify calibration standards are fresh and correctly prepared.
  • Inspect tubing for blockages or inconsistent flow.
  • Ensure temperature and pH compensation are functioning.
• Inaccurate Readings:
  • Recalibrate the sensor with fresh standards.
  • Check for air bubbles in the flow cell.
  • Verify the water sample is representative.
  • Examine the electrode for damage or wear.
• No Response:
  • Confirm power supply to the sensor and controller.
  • Check electrical connections and wiring.
  • Verify communication settings (e.g., RS485 Modbus RTU).
  • Test the electrode with a known standard solution.

Regular attention to these details significantly enhances sensor performance.

Future Trends in Drinking Water Chlorine Monitoring

The field of water quality monitoring is continuously advancing, driven by technological innovations and increasing demands for efficiency and data integration.

Integration with Smart Water Systems and IoT

The future of chlorine monitoring lies in its integration with smart water systems and the Internet of Things (IoT). This involves:

• Real-time Data Transmission: Sensors transmit data wirelessly to cloud-based platforms for instant access and analysis.
• Predictive Analytics: AI and machine learning algorithms analyze historical data to predict chlorine demand and optimize dosing strategies.
• Automated Alarms and Responses: Systems automatically alert operators to deviations and can even trigger corrective actions, such as adjusting chemical pumps.
• Remote Management: Operators can monitor and control chlorine levels from any location, improving operational flexibility.
  This integration enhances efficiency and proactive management of water quality.

Innovations in Sensor Design and Data Analytics

Ongoing research and development are leading to more sophisticated chlorine sensors:

• Miniaturization: Smaller, more compact sensors allow for easier deployment in various points within the distribution network.
• Enhanced Selectivity: New materials and designs reduce interference from other chemicals, improving measurement accuracy.
• Self-Cleaning Mechanisms: Sensors with integrated self-cleaning features reduce manual maintenance and extend operational life.
• Advanced Data Analytics: Sophisticated software platforms provide deeper insights into water quality trends, enabling better decision-making and regulatory reporting.
  These innovations promise even greater reliability and efficiency in drinking water treatment.
  推荐语：《Flow Meter Selection: Turbine vs. Electromagnetic vs. Ultrasonic Flow Meters》

Partner with Us for Advanced Water Quality Solutions

Reliable chlorine monitoring is paramount for ensuring safe drinking water. Our advanced chlorine sensors provide the accuracy, stability, and ease of use required for effective water treatment. Contact our specialists today to discuss your specific needs and explore how our solutions can enhance your water quality management.

FAQs

What is residual chlorine and why is it important in drinking water?

Residual chlorine is the amount of disinfectant remaining in water after initial treatment. Its presence ensures that water remains free from harmful microorganisms as it travels through the distribution system to consumers. Maintaining an adequate residual level is critical for public health protection and regulatory compliance.

How often should chlorine sensors be calibrated?

The frequency of calibration for chlorine sensors depends on several factors, including the water quality, sensor type, and regulatory requirements. Generally, sensors should be calibrated weekly or monthly to ensure optimal accuracy. High-fouling environments may necessitate more frequent calibration.

What are the main types of chlorine sensors available?

The main types of chlorine sensors are amperometric and potentiometric. Amperometric sensors measure electrical current from chlorine reduction, offering high sensitivity. Potentiometric sensors measure potential differences, providing robustness in varying water conditions. Both types offer continuous online monitoring.

Can chlorine sensors be integrated with existing water treatment systems?

Yes, modern chlorine sensors are designed for seamless integration with existing water treatment systems. They typically offer standard output signals like 4–20 mA and RS485 Modbus RTU, allowing connection to programmable logic controllers (PLCs) or supervisory control and data acquisition (SCADA) systems for automated control and data logging.

What factors affect the accuracy of chlorine sensor readings?

Several factors can affect the accuracy of chlorine sensor readings. These include fluctuating pH levels, changes in water temperature, the presence of interfering chemicals, and sensor fouling from biofilm or mineral deposits. Proper installation, regular calibration, and appropriate compensation mechanisms help mitigate these effects.
