Ultrasonic Flow Meter

The clamp on ultrasonic flow meter for water, it is non-contact ultrasonic flow meter BTU meter heat meter and non-invasive flow meter, utilizes the transit-time, or also known as “time of flight” principle to measure the velocity of relatively clean liquids in full pipes. It features clamp on(strap on) designs with transducer arrangements that can detect in-site flow rates from outside of the pipework, without any interruption to flow or process. Clamp on ultrasonic flow meter with logger are specially chosen for water application, such as potable water, wastewater, cooling and heating water, ultrapure water. In this series we provide in-line ultrasonic flow meters as well as portable ultrasonic flow meter.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

PWF-U2000M Module Ultrasonic Flow Meter

Features

  • Measurement accuracy ±1%FS
  • Wide range of pipe materials and sizes: DN15 to DN6000
  • Process temperature from -40℃ to 160℃
  • Powerful recording function, record the totalizer data of the last 64 days/64 months/5 years

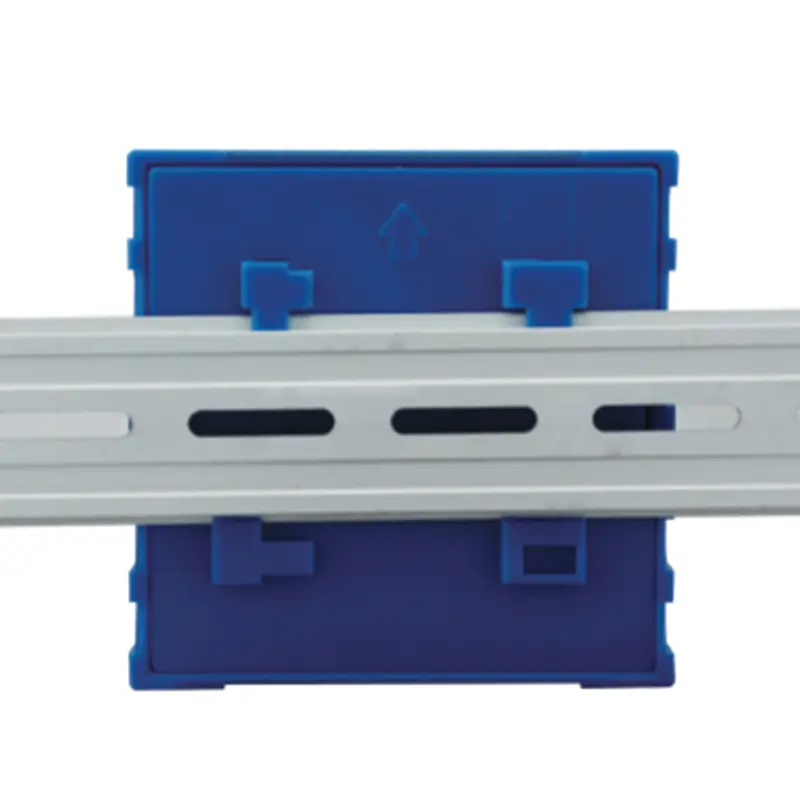

  • DIN rail installation

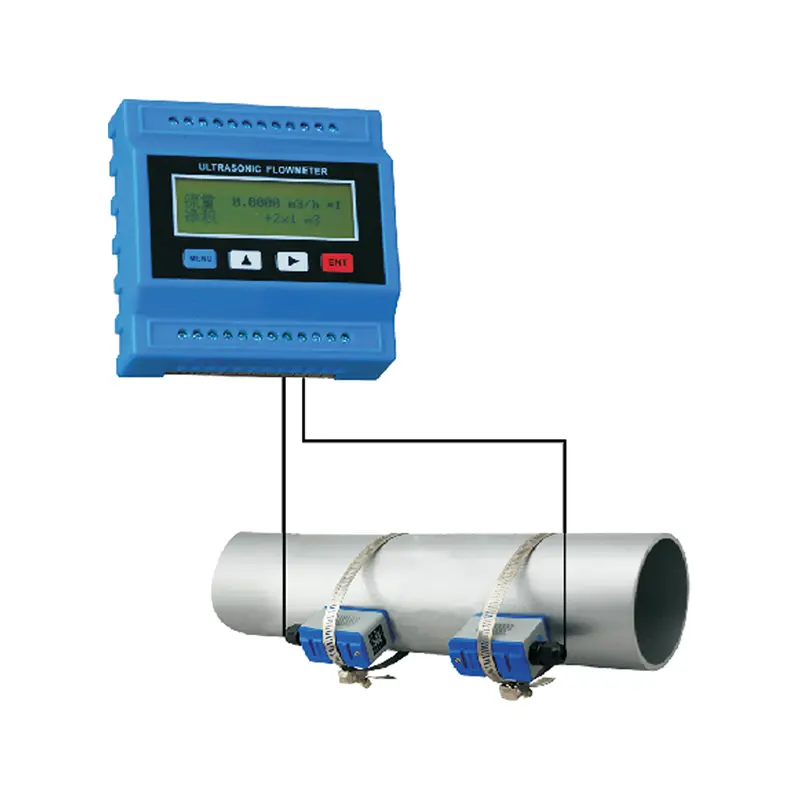

PWF-U2000M Module Ultrasonic Flow Meter

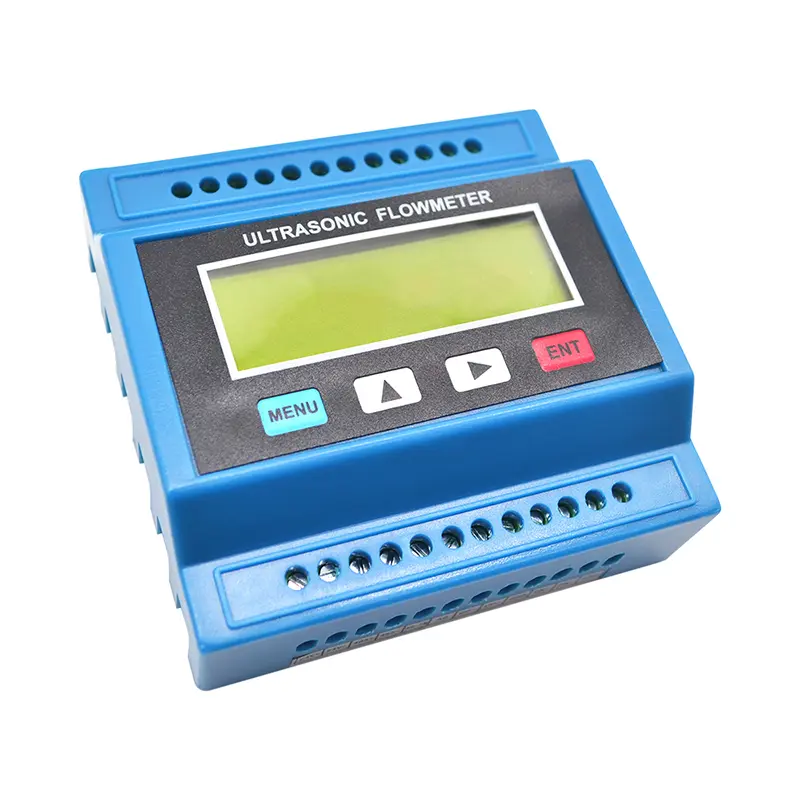

PWF-U2000M Module Ultrasonic Flow Meter

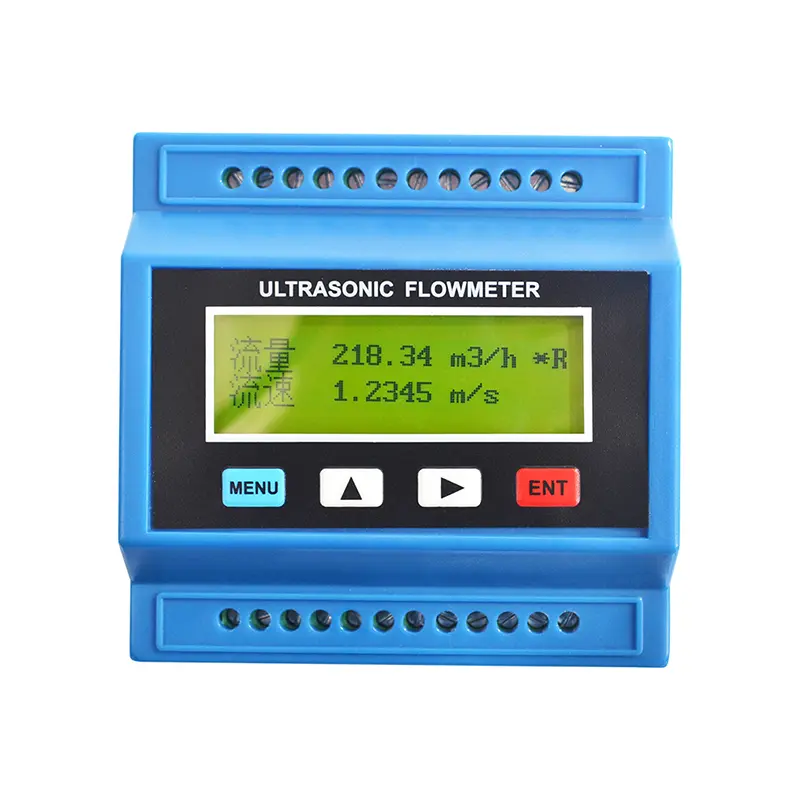

PWF-U2000M Module Ultrasonic Flow Meter
PWF-U2000M Module Ultrasonic Flow Meter

Applications

  • Water distribution flow metering
  • Leak detection
  • Wastewater flow-metering
  • Building services
  • Power/Energy management
  • Inspection of fixed installation meters
  • Pump inspection
  • Light industrial
Request Price PDF Download

Advantages

  • Non-invasive flow monitoring
  • Measurement of non-conductive fluids
  • Easy installed clamp-on sensors with no interruption to flow
  • Integrated heat/energy measurement

Ultrasonic flow meter module has the characteristics of small size, low price, simple operation and complete output interface functions. It is also a strap on ultrasonic flow meters for water, clamp on ultrasonic flow meter for small pipes, is suitable for flow measurement of networked monitoring projects such as supporting projects of system integrators, water conservancy and water resources or heating systems.

Resources

Datasheet

File NameTimeTypeDownload
PWF-U2000M Module Ultrasonic Flow MeterSep 23, 2025PDF

Technical Parameters

ModelPWF-U2000M
Pipe DiameterDN15~DN6000mm
Accuracy±1.0%FS
Signal Output4-20mA/Pulse/RS485/Relay
Power SupplyDC8~36V or AC85~264V
DisplayLCD
Working Temp.Converter: -20~60℃; Sensor -30~160℃
Housing MaterialABS
Liquid Velocity0~±10m/s
Sensor Installation MethodClamp on/Insertion type/Pipe section
Transmitter InstallationRail installation
Cable Length2*5 meters
Heat/Energy measurementAvailable to connect 3-wire PT100 platinum resistor
