Ultrasonic Flow Meter

The clamp on ultrasonic flow meter for water, it is non-contact ultrasonic flow meter BTU meter heat meter and non-invasive flow meter, utilizes the transit-time, or also known as “time of flight” principle to measure the velocity of relatively clean liquids in full pipes. It features clamp on(strap on) designs with transducer arrangements that can detect in-site flow rates from outside of the pipework, without any interruption to flow or process. Clamp on ultrasonic flow meter with logger are specially chosen for water application, such as potable water, wastewater, cooling and heating water, ultrapure water. In this series we provide in-line ultrasonic flow meters as well as portable ultrasonic flow meter.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

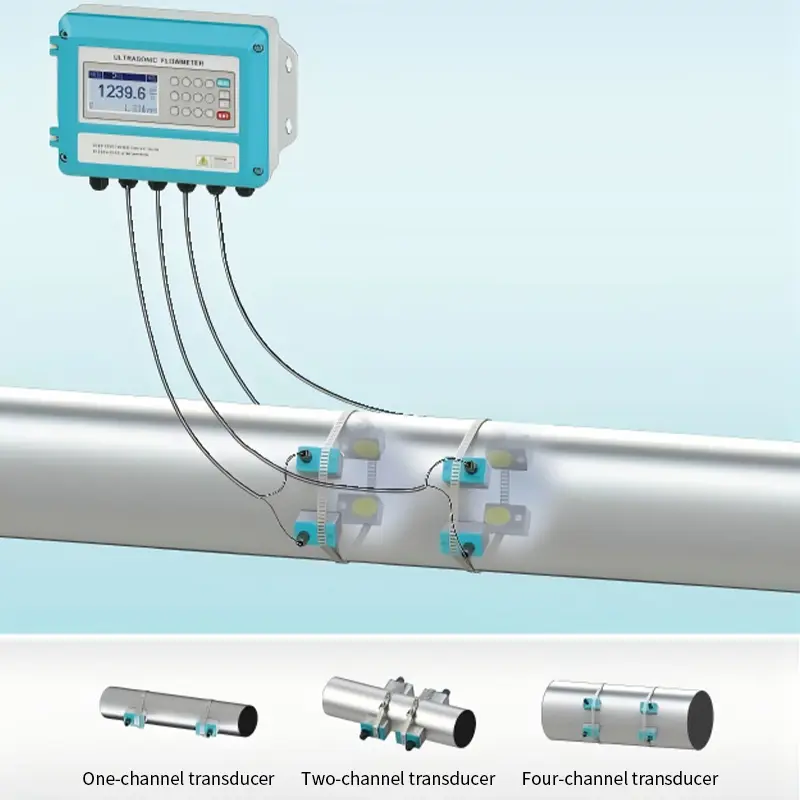

PWF-U2000MCC Multi-channel Clamp-on Ultrasonic Flowmeter

Features

High accuracy ±0.5%FS, ±1.0%FS.
Cast aluminum converter, robust and easy handling with installation hooks.
Adopts 4-line LCD display, rich in content and convenient to operate.
32MB storage, max can store 20,000 pieces data.

PWF-U2000MCC Multi-channel Clamp-on Ultrasonic Flowmeter

Applications

Water distribution flow metering
Leak detection
Water supply and drainage
Building services
Metallurgy
Petrochemical
Pump inspection

Request Price PDF Download

Advantages

Integrated temperature and pressure measure optional
Industrial grade ARM CPU, stronger computing ability and greater anti-interference.
Sensors available with one-channel, two-channel, four-channel.
Supports multiple language systems including English, Italian, Spanish, Turkish, and Chinese.
Upgraded power supply module, added shielding covers to both the power supply and the motherboard to improve anti-interference capabilities.

This high accuracy ultrasonic flow meter is our NEW upgraded clamp on ultrasonic flow meter for water distribution, it can integrate temperature and pressure measurement, and optional with one-channel, two-channel, four-channel. Improved anti-interference capability enables it become a most suitable ultrasonic flow meter with digital output.

Resources

Datasheet

File Name	Time	Type	Download
PWF-U2000MCC Multi-channel Clamp-on Ultrasonic Flowmeter	Nov 18, 2025	PDF

Technical Parameters

Accuracy	±1%(One-channel); ±0.5%(Two-channel); ±0.5%(Four-channel)
Pipe Diameter	DN50~DN6000
Liquid Temp.	-30℃~160℃
Liquid Type	Water, seawater, sewage, acid and alkali solutions, alcohol, beer, and various oils are all single, homogeneous liquids capable of transmitting ultrasonic waves.
Signal Output	1x4-20mA, impedance 0-1K(DC24V), 0.1% accuracy 1xOCT pulse, pulse width 6~1000ms 1xRelay output or frequency output
Communication	Isolated RS485 serial interface, supporting MODBUS protocol
Isolated RS485 serial interface, supporting MODBUS protocol	3x4-20mA, can be a data collector Connect PT100 or PT1000 to achieve heat/energy measurement
Power Supply	DC8-36V; AC10-30V; AC85-264V
Pressure Measure	Support Temperature&Pressure Integrated sensor
Language	English, Italian, Spanish, Turkish, and Chinese
Protection Class	IP67(Converter/Host); IP68(Sensors)
Humidity	≤85%RH(Converter/Host); IP68(Sensors)
Temperature	-20~60℃(Converter/Host); -30~160℃(Sensors)
