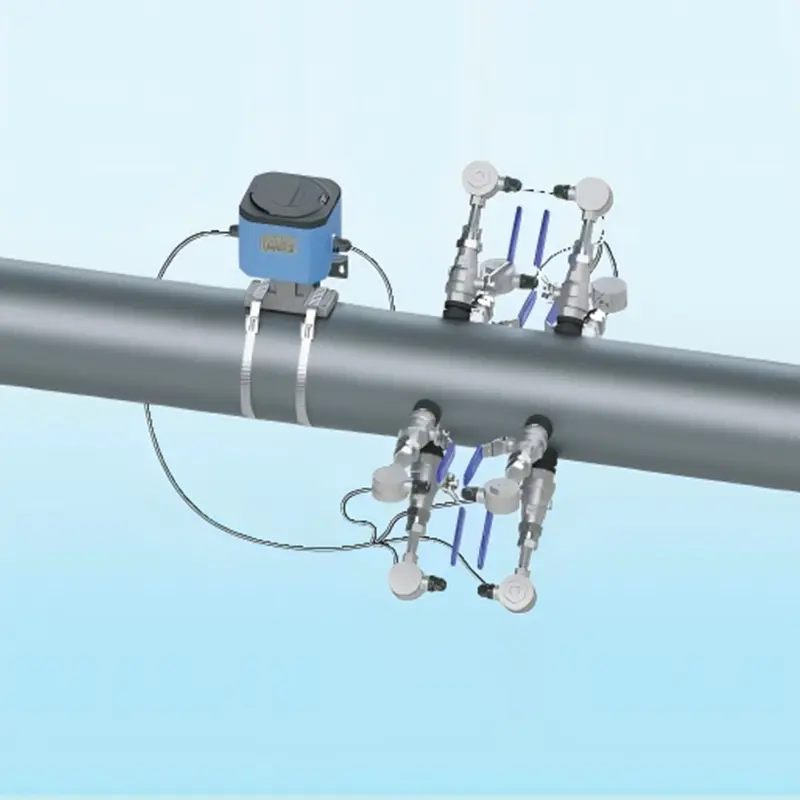

PWF-U2000MCI Multi-channel Insertion Ultrasonic Flowmeter

Features

No need cutoff water with installation.
High accuracy ±0.5%FS, ±1.0%FS.
Measurement pipe diameter DN50-DN6000.
Intelligence and integrative mixed signal processing technology.

PWF-U2000MCI Multi-channel Insertion Ultrasonic Flowmeter

Applications

Process control
Production measurement
Wastewater flow-metering
Building services
Power/Energy management
Water benefit engineering
Energy monitoring industries

Request Price PDF Download

Advantages

Integrated temperature and pressure measure optional
Large LCD, displaying abundant information.

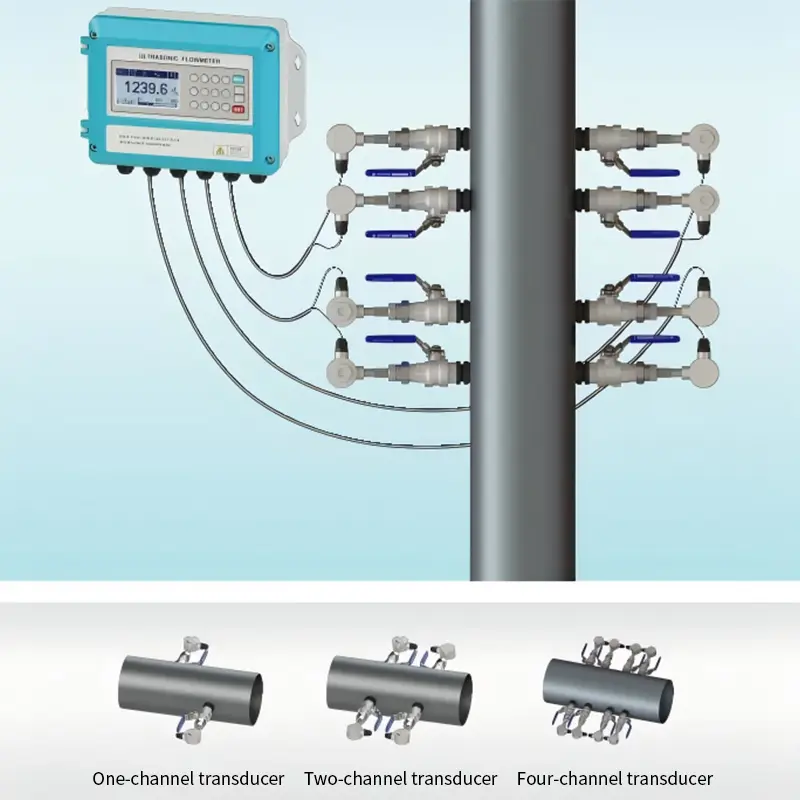

One-channel, two-channel, four-channel transducer can be selected.
Stainless steel transducers, strong durability.

This ultrasonic flow meter with high precision is our NEW upgraded insertion type ultrasonic flow meter for pipeline. Use special opening tool, it can realize installing the insertion transducer without cutoff water, and enable stable and reliable measurement. Improved anti-interference capability enables it become a most suitable ultrasonic flow meter for process control.

Resources

Datasheet

File Name	Time	Type	Download
PWF-U2000MCI Multi-channel Insertion Ultrasonic Flowmeter	Nov 18, 2025	PDF

Technical Parameters

Accuracy	±1%(One-channel); ±0.5%(Two-channel); ±0.5%(Four-channel)
Velocity Range	≥0.3m/s(One-channel); ≥0.3m/s(Two-channel); ≥0.1m/s(Four-channel)
Pipe Diameter	DN50~DN6000
Liquid Temp.	-30℃~160℃
Liquid Type	Water, seawater, sewage, acid and alkali solutions, alcohol, beer, and various oils are all single, homogeneous liquids capable of transmitting ultrasonic waves.
Signal Output	1x4-20mA, impedance 0-1K(DC24V), 0.1% accuracy 1xOCT pulse, pulse width 6~1000ms 1xRelay output or frequency output
Communication	Isolated RS485 serial interface, supporting MODBUS protocol
Signal Input	3x4-20mA, can be a data collector Connect PT100 or PT1000 to achieve heat/energy measurement
Power Supply	DC8-36V; AC10-30V; AC85-264V
Pressure Measure	Support Temperature&Pressure Integrated sensor
Language	English, Italian, Spanish, Turkish, and Chinese
Protection Class	IP67(Converter/Host); IP68(Sensors)
Humidity	≤85%RH(Converter/Host); IP68(Sensors)
Temperature	-20~60℃(Converter/Host); -30~160℃(Sensors)
