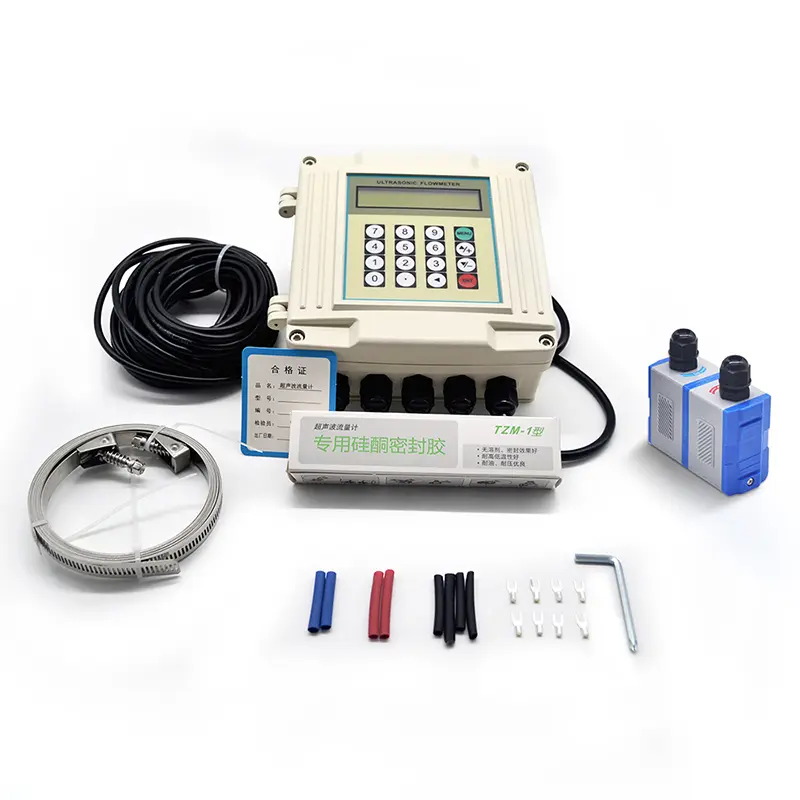

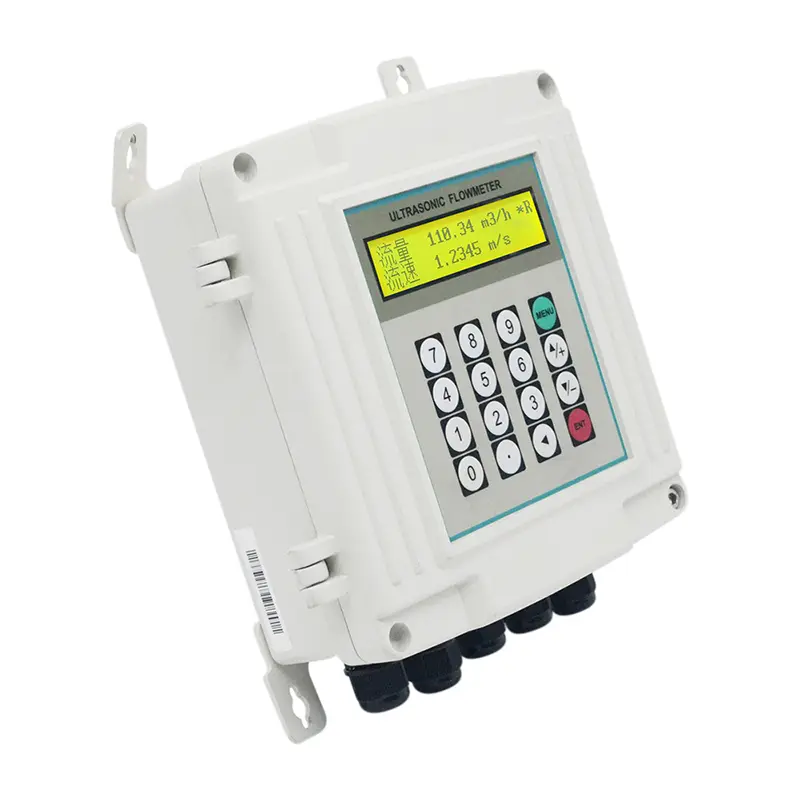

PWF-U2000W Wall mount Ultrasonic Flow Meter

Features

Measurement accuracy ±1%FS
Wide range of pipe materials and sizes: DN15 to DN6000
Process temperature from -40℃ to 160℃
Powerful recording function, record the totalizer data of the last 64 days/64 months/5 years
Protection level: Converter IP65, sensor IP65/IP68

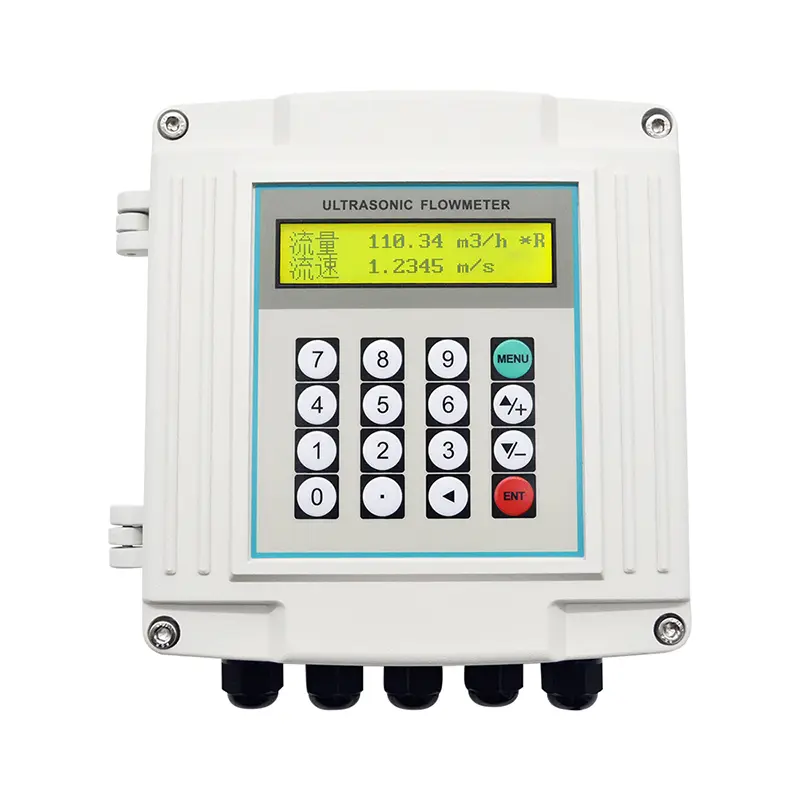

PWF-U2000W Wall mount Ultrasonic Flow Meter

Applications

Water distribution flow metering
Leak detection
Wastewater flow-metering
Building services
Power/Energy management
Inspection of fixed installation meters
Pump inspection
Light industrial

Request Price PDF Download

Advantages

Non-invasive flow monitoring
Measurement of non-conductive fluids
Easy installed clamp-on sensors with no interruption to flow
High reliability: Low voltage, multi-pulse transmission circuit, high measuring accuracy, long service life.
Integrated heat/energy measurement
Strong anti-interference ability: Adopt dual balanced signal differential transmission and receiving circuit.

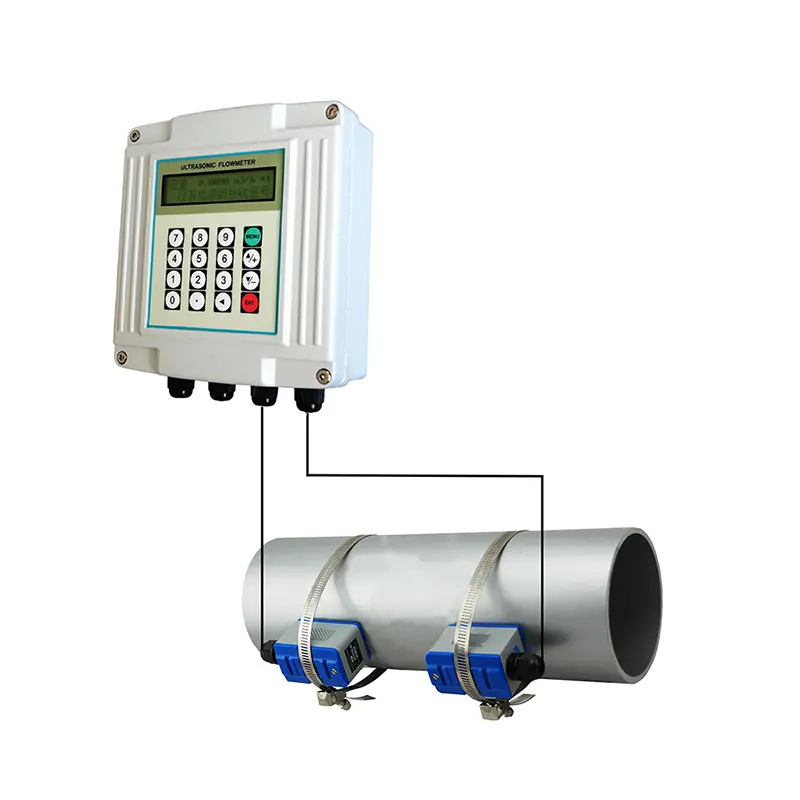

The wall mount Ultrasonic Water Flow Meter is a kind of clamp on Transit Time Flow Meter on pipes providing non-contacting, bi-directional flow measurement from 0.03m/s to 10m/s. Clamp on ultrasonic flow meter display is widely used in water, seawater, industrial sewage, acid and alkali solution, alcohol, beer, and other single and uniform liquids that can conduct ultrasonic waves.

Resources

Datasheet

File Name	Time	Type	Download
PWF-U2000W Wall mount Ultrasonic Flow Meter	Sep 23, 2025	PDF

Technical Parameters

Model	PWF-U2000W
Pipe Diameter	DN15~DN6000mm
Accuracy	±1.0%FS
Signal Output	4-20mA/Pulse/RS485/Relay
Power Supply	DC8~36V or AC85~264V
Display	LCD
Working Temp.	Converter: -20~60℃; Sensor -30~160℃
Protection Level	Transmitter IP65; Sensor IP65/68
Housing Material	Cast aluminum
Liquid Velocity	0~±10m/s
Sensor Installation Method	Clamp on/Insertion type/Pipe section
Transmitter Installation	Wall mounted
Cable Length	2*5 meters
Heat/Energy measurement	Available to connect 3-wire PT100 platinum resistor
Recording Function	Last 64 days/ 64 months/ 5 years
