Differential Pressure
Differential pressure transmitter suitable for measuring liquid, gas or steam pressure as well as liquid level in an open or closed tank. Differential pressure transducers measure the difference between two applied pressures. These transducers generally have a high and a low pressure port. This last value is critical for a plethora of process control applications, providing insights into the ongoing efficacy of pressure vessel containers and gas flow systems. One common instance is differential pressure sensor for filter monitoring. As the filter gets clogged, the differential pressure increases.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

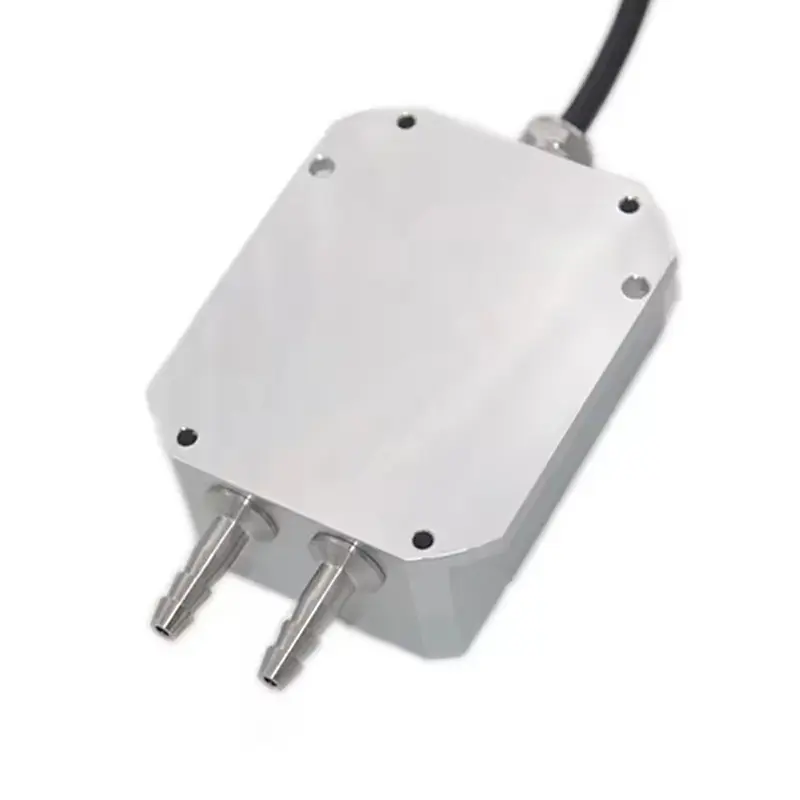

PWP301 Micro Air Differential Pressure Transmitter
Features
- MEMS micro-pressure sensor chip
- Digital temperature compensation
- Protection class IP66
- For dry gas <5kPa or liquid ≥ 5kPa
Applications
- HAVC systems
- Wind pipe pressure measurement
- Dust removal equipment
- Purification plant
- Leak detection device
- Wind machine
- Blow down expander
Advantages
- Advanced circuit linearity
- Compact and easy to install
- Anti-surge, reverse polarity protection
- Improved temperature drift performance and stability.

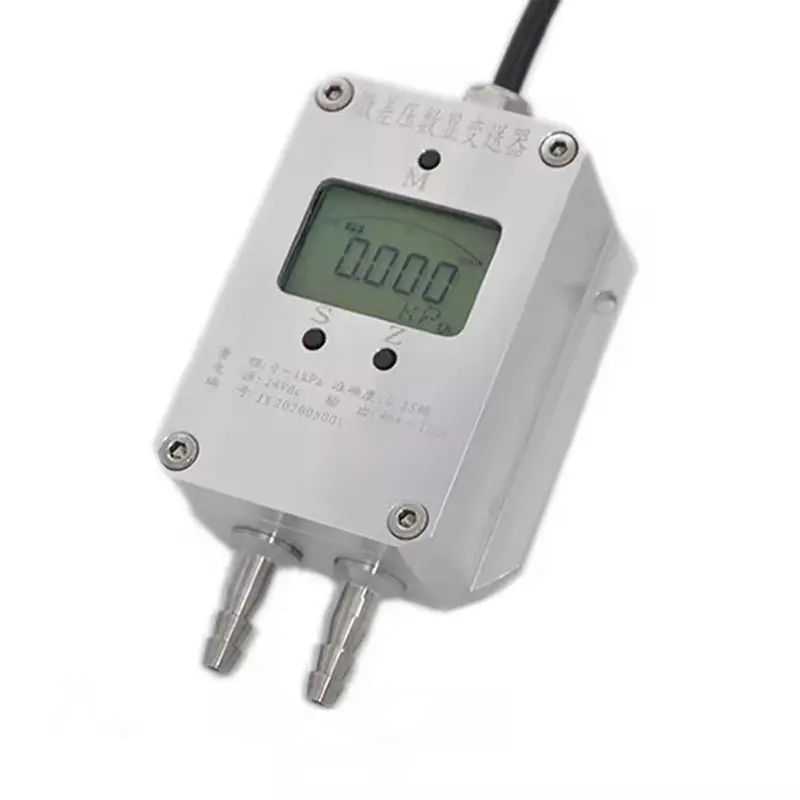

The micro differential pressure transmitter uses silicon MEMS micro-pressure chip, provides an accurate solution for low range from 0Pa to ±100Pa or 100kPa. It features full digital calibration, no moving potentiometer, is a differential pressure transmitter with local display.
Resources
Datasheet
| File Name | Time | Type | Download |
|---|---|---|---|
| PWP301 Micro Air Differential Pressure Transmitter | Sep 25, 2025 |
Technical Parameters
| Model | PWP301 |
| Pressure Type | Differential pressure |
| Pressure Range | 0Pa~±100Pa …100kPa |
| Safe Overload | ≤200%FS |
| Electrical Connection | Directly cable outlet |
| IP Rating | IP66 |
| Indicator | 4-bits LCD display |
| Accuracy | ±1.0%FS typical; ±0.5%FS, ±0.25%FS optional |
| Signal Output | 4-20mA/ 0-5V/0-10V/I2C/ RS485 Modbus RTU |
| Power Supply | 3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC/15-30VDC |
| Response Time | ≤3ms |
| Medium Compatible | <5kPa, non-corrosive airs ≥5kPa, liquids compatible with SS316L and silicone |
| Long-term Stability (%FS/year) | ≤1.0%FS |
| Compensation Temp. | 0℃~+50℃ |
| Working Temp. | -40℃~+85℃ |
| Storage Temp. | -40℃~+85℃ |
| Body Material | Aluminum |
| Max Static Pressure | ≤100kPa |
