Melt Pressure

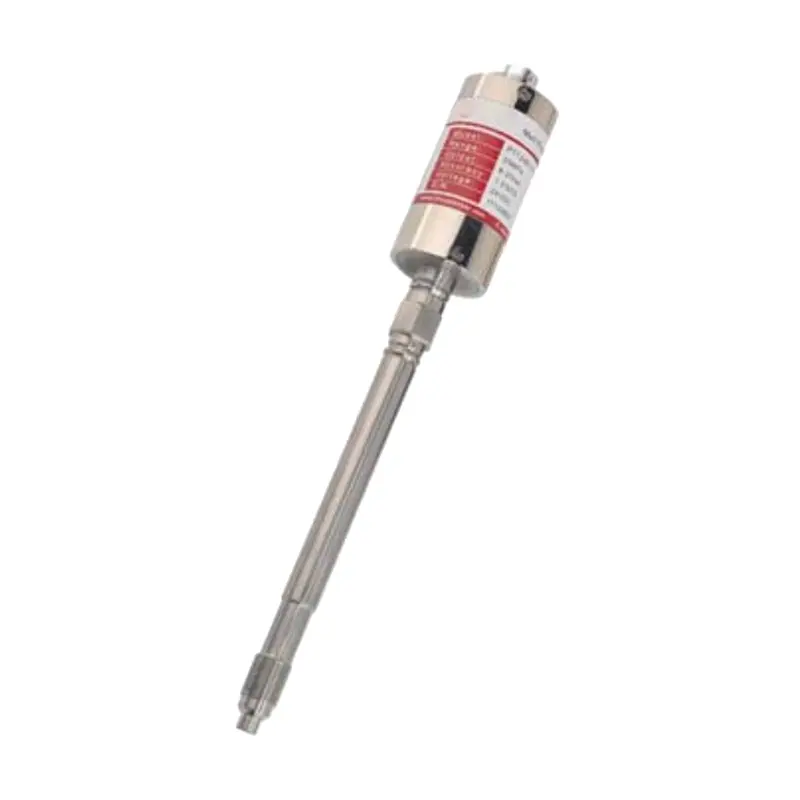

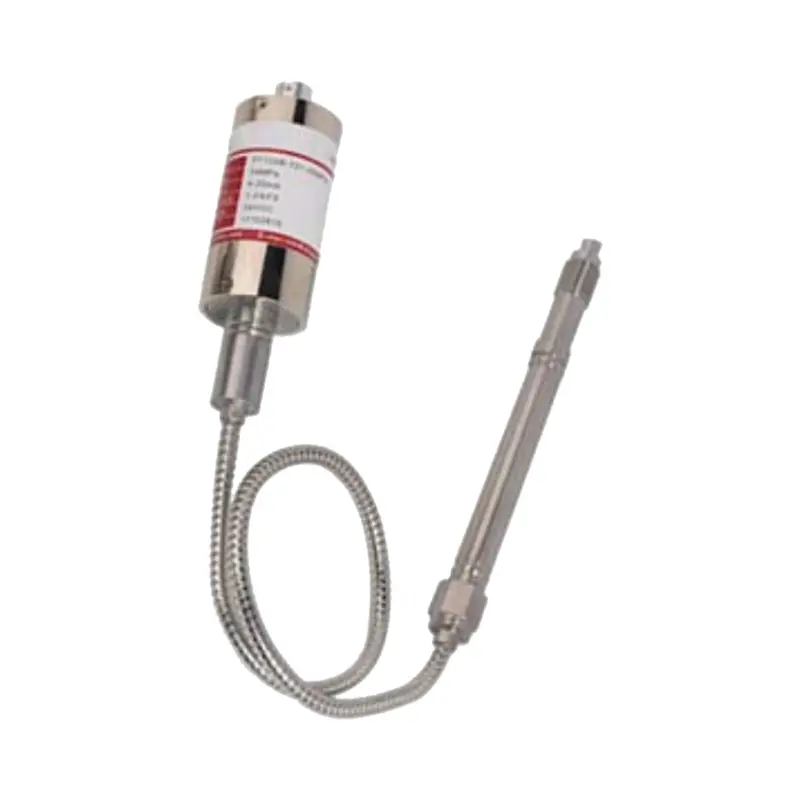

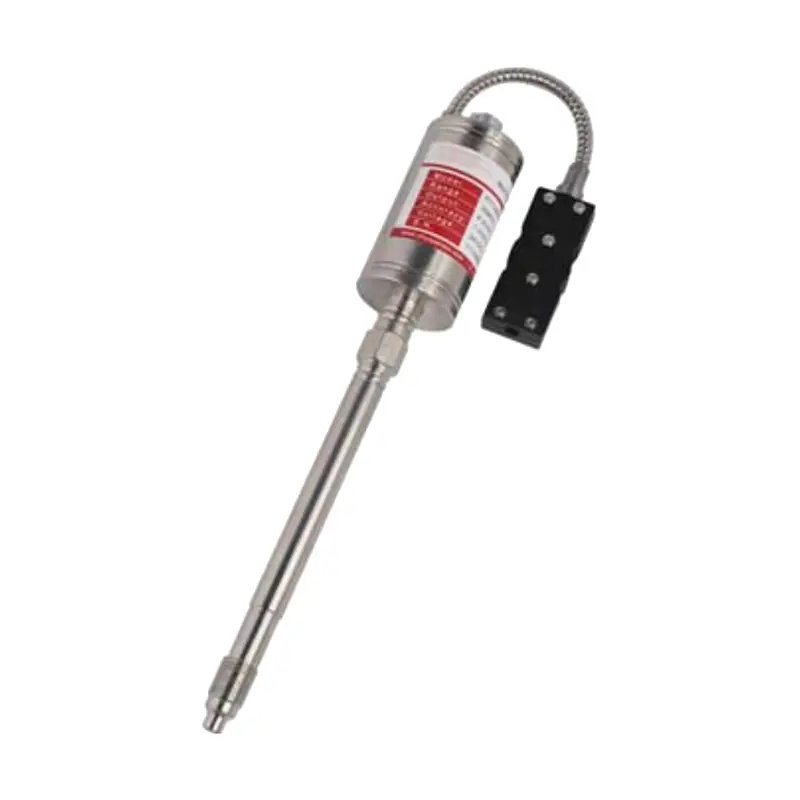

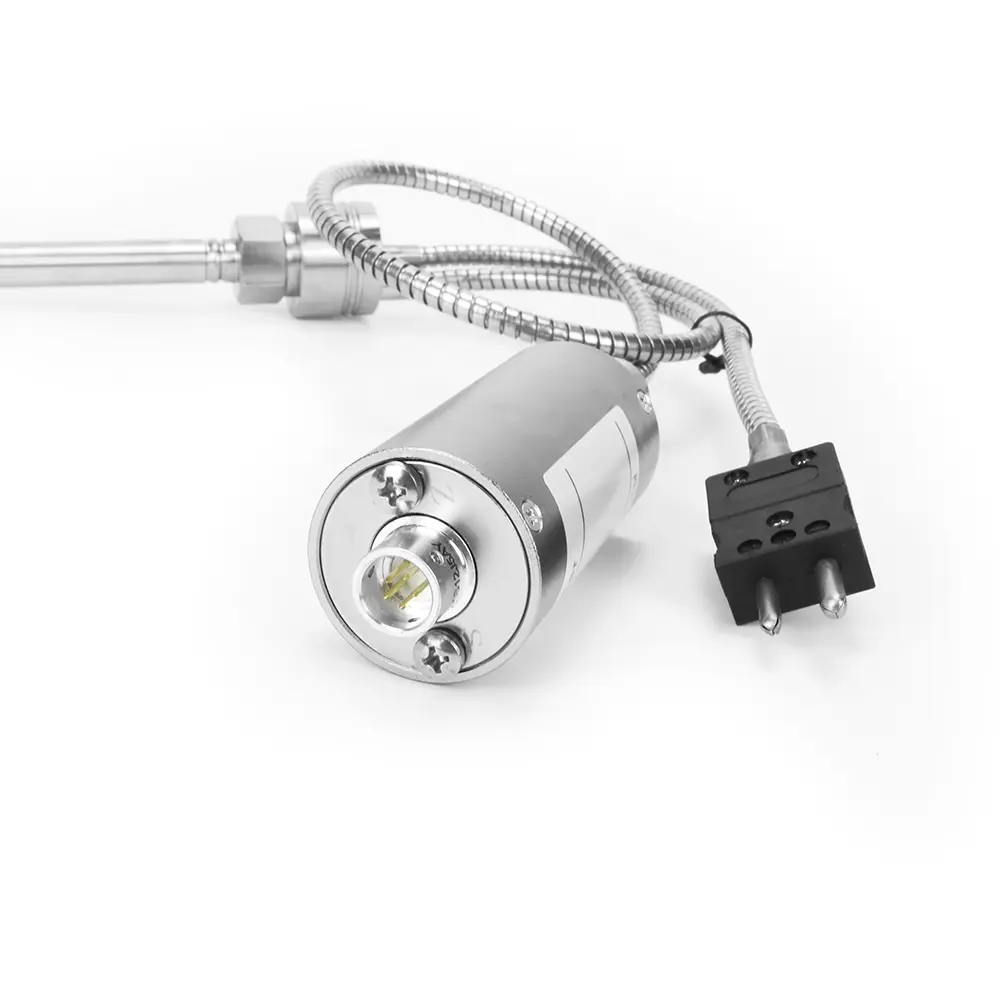

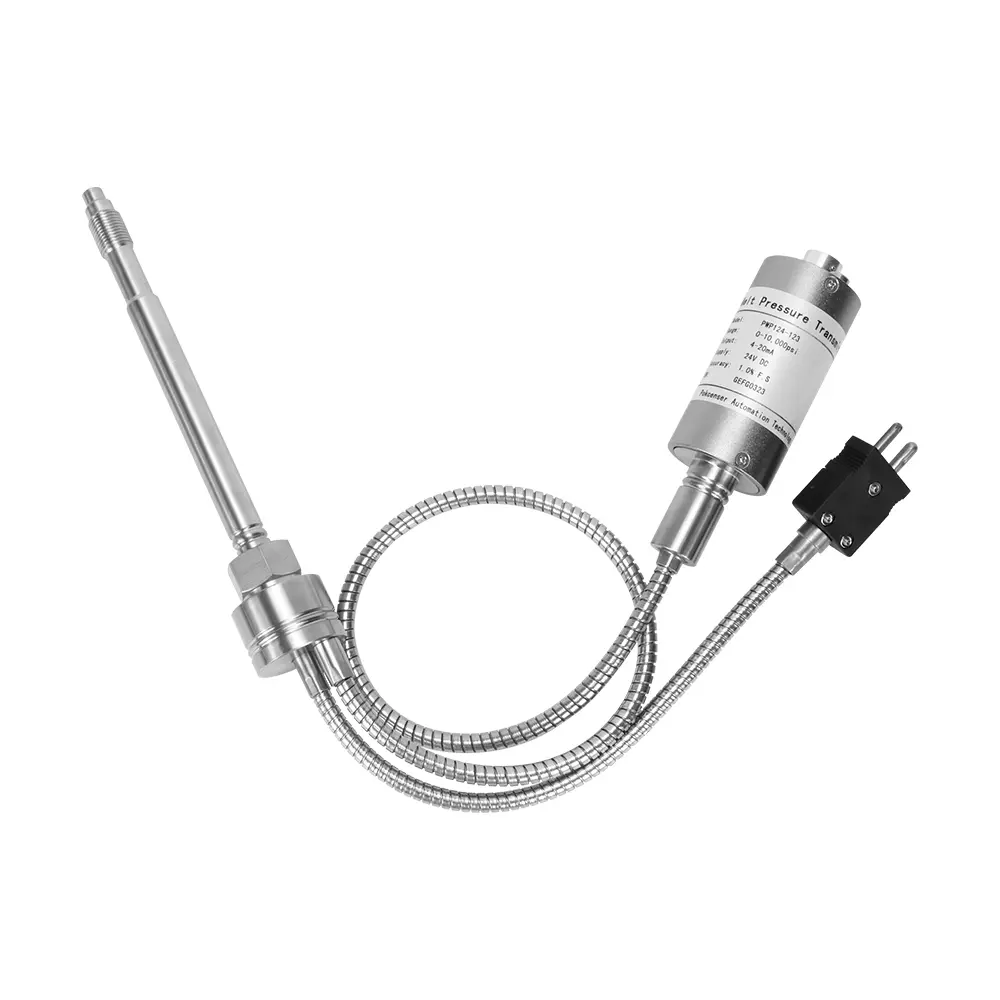

High temperature melt pressure transmitter is a straight rod/soft cable melt pressure transmitter. Some models equipped with a temperature measuring thermocouple to achieve the same-point measurement of pressure and temperature. Widely used in plastic extrusion machines, chemical fiber and rubber manufacturing equipment, as well as other high temperature fluids, pressure and temperature process control monitoring. Maximum operation temperature up to 400℃ plastic extrusion machine pressure transmitter, 3.33 mV/V melt pressure sensor.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492
PWP124 High Temperature Melt Pressure Sensor &Transducer
Features
- Internal 80% calibration signal
- 15-5PH diaphragm material
- Maximum temperature resistance 400℃
- Large measuring range 150MPa
- Both pressure and temperature measurement
Applications
- Plastic extrusion machine
- Rubber manufacturing equipment
- Chemical fiber drawing equipment
- High temperature systems
- High pressure systems
- Laboratory equipment
- Petro-chemical application
- Medicine, food processing, packaging equipment
Advantages
- Good stability and repeatability
- Various pressure connection to suit the equipment
- Accuracy ±0.5%FS, ±0.25%FS optional
The melt pressure transmitter with rigid stem construction or capillary is designed for extrusion machine or fiber equipment. It is capable for dual output melt pressure transmitter pressure temperature when used in injection molding melt pressure sensor with thermocouple.
Resources
Datasheet
| File Name | Time | Type | Download |
|---|---|---|---|
| PWP124 High Temperature Melt Pressure Sensor &Transducer | Sep 25, 2025 |
Technical Parameters
| Model | PWP124-111; PWP124-112; PWP124-121; PWP124-123 |
| Pressure Type | Relative (gauge) pressure |
| Pressure Range | 0~500psi...20000psi / 0MPa~3.5MPa …150MPa |
| Accuracy | ±0.5%FS, ±0.25%FS |
| Safe Overload | 1.2 times Full Range |
| Burst Pressure | 1.5 times Full Range |
| Electrical Connection | 5 pins plug; 6 pins plug |
| IP Rating | IP65 |
| Signal Output | 3.33mV/V, 2mV/V, 4-20mA, 0-5V, 0-10V |
| Power Supply | 6-12VDC; 12-36VDC |
| Medium Temperature | 0℃~400℃ |
| Diaphragm Material | Coated 15-5PH Stainless Steel |
| Repeatability (%FS) | ±0.2%FS |
| Process Connection | 1/2”-20UNF, M14x1.5, M18x1.5, M22x1.5, G3/4, or others |
| Thermocouple Type | J, K, E, PT100 optional |
| Explosion Proof | Exd II CT5 |
