Differential Pressure

Differential pressure transmitter suitable for measuring liquid, gas or steam pressure as well as liquid level in an open or closed tank. Differential pressure transducers measure the difference between two applied pressures. These transducers generally have a high and a low pressure port. This last value is critical for a plethora of process control applications, providing insights into the ongoing efficacy of pressure vessel containers and gas flow systems. One common instance is differential pressure sensor for filter monitoring. As the filter gets clogged, the differential pressure increases.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

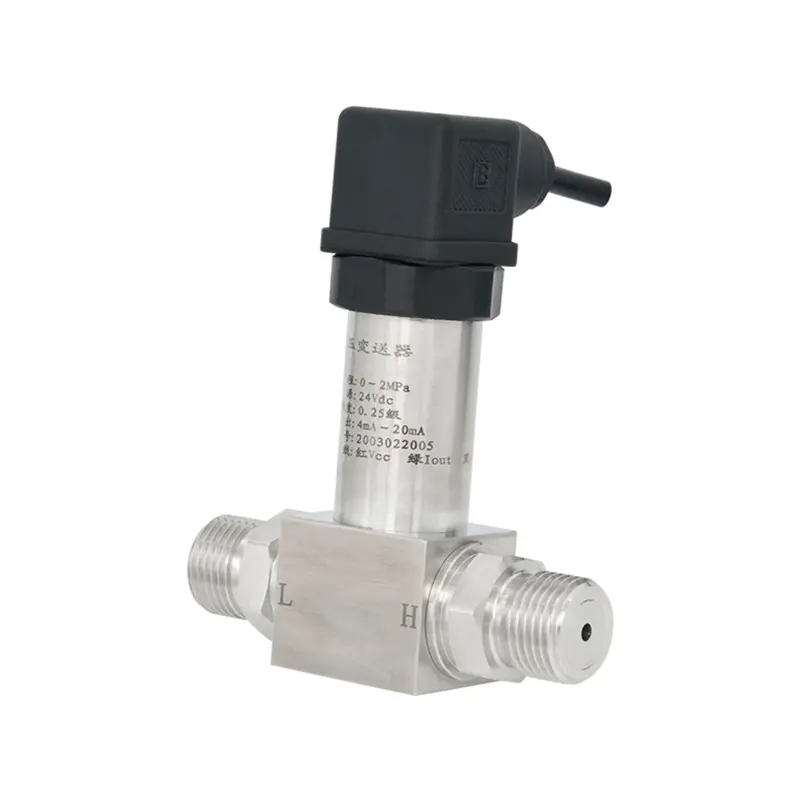

PWP300 Universal Type Differential Pressure Transmitter

Features

Pressure ranges from -0.1MPa to 3.5MPa
Fully 316L welded robust construction
EMC protection, over voltage protection
Accuracy: ±0.5%FS

PWP300 Universal Type Differential Pressure Transmitter

Applications

Water treatment
Coal & mine
Petrochemical, chemical industry
Petroleum, oilfield
Environmental protection
Medicine
Shipbuilding

Request Price PDF Download

Advantages

High stability, low drift
Long-term stability
Strongly compatible with air, oil, hydraulic and water pressure

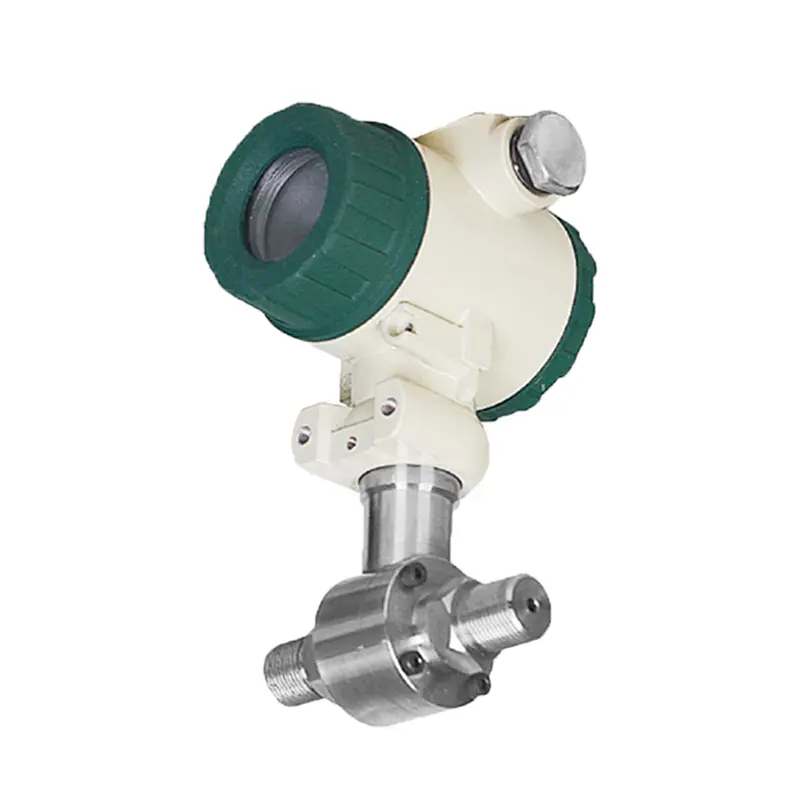

Explosion proof available with Exd and Exia

The high accuracy differential pressure transmitter can be used for a variety of applications. It is a silicon sensing element mounted within a high integrity seal assembly that is fully isolated from the pressure media by a welded 316L stainless steel diaphragm. It is an ideal differential pressure transmitter for process control.

Resources

Datasheet

File Name	Time	Type	Download
PWP300 Universal Type Differential Pressure Transmitter	Sep 25, 2025	PDF

Technical Parameters

Model	PWP300
Pressure Type	Differential pressure
Pressure Range	-0.1MPa ... 0kPa~10kPa …3.5MPa
Safe Overload	≤200%FS
Electrical Connection & IP Rating	DIN43650 Hirschmann Connector... IP65 M12*4pins connector... IP67 Directly outlet cable... IP67
Accuracy	±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional
Signal Output	4-20mA/ 0-5V/0-10V/0.5-4.5V/I2C/ RS485 Modbus RTU
Power Supply	3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC/15-30VDC
Response Time	≤3ms
Long-term Stability (%FS/year)	≤0.5 for 0.5%FS
Compensation Temp.	0℃~+50℃(≤200kPa), -10℃~+70℃(>200kPa)
Working Temp.	-30℃~+80℃
Storage Temp.	-20℃~+80℃
Body Material	SUS304 stainless steel, optional 316L
Explosion Proof	Exia II CT6 (optional)
Protection Level	IP65/IP67
Max Static Pressure	≤20MPa
Pressure Connect Port	M20x1.5 male, G1/4” male, 1/4”NPT male, G1/2”male, 1/2” NPT, male and female optional
