Heavy-duty Type

Sputtered thin film pressure sensor offers exceptional 0.25% FS accuracy in pressure ranges from 0 bar to 2,500bar, safe overload 40MPa. Features an all welded stainless steel constructions without O-rings. A robust internal design ensures that the transducers can survive high levels of vibration. Ideal for hydraulic and pneumatic systems, heavy duty machinery. A lot of successful applications with compact sputtered thin film pressure transducer and heavy duty pressure transducer 30000 psi.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

PWP330 Hydraulic Pressure Sensor

Features

  • Accuracy ±0.25%FS
  • Wide choice of pressure range up to 250MPa
  • High elasticity stainless steel 17-4PH measuring element
  • All welded stainless steel constructions
  • Customized sputtered thin film sensor core can work at -196℃ or temperature higher than +120℃

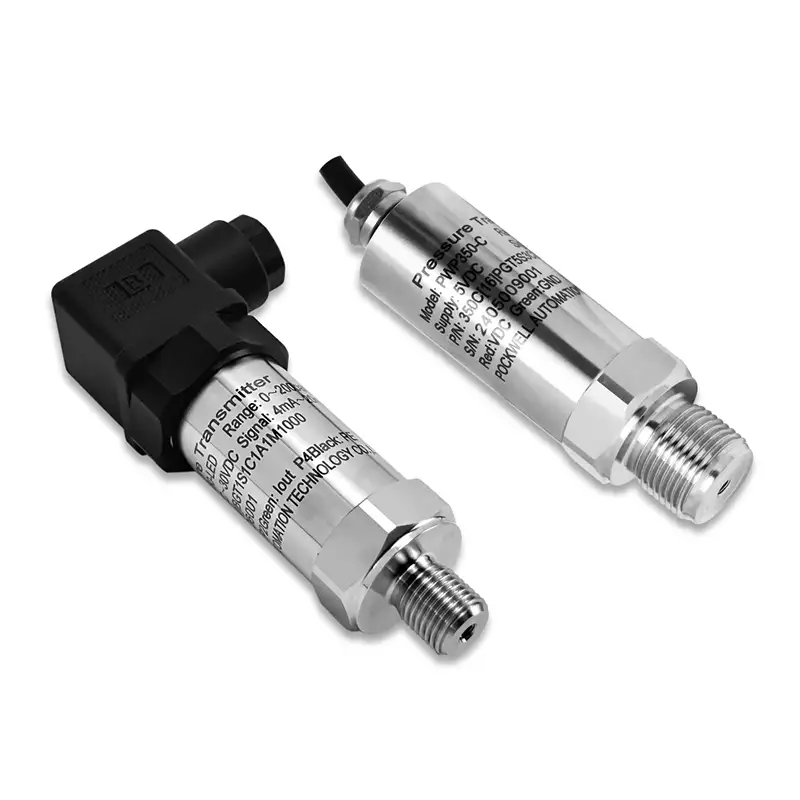

PWP330 Hydraulic Pressure Sensor

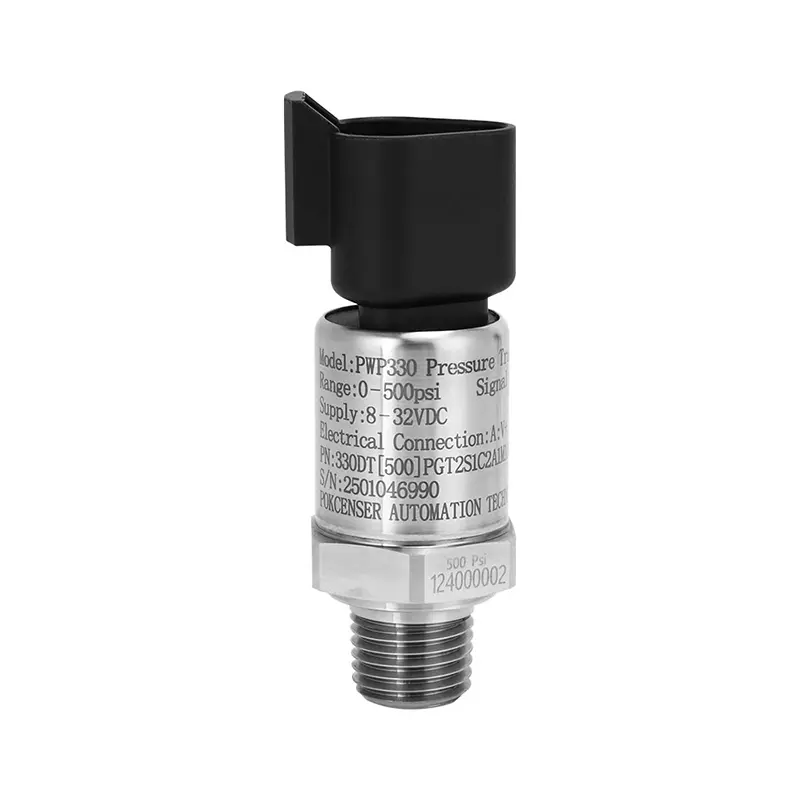

PWP330 Hydraulic Pressure Sensor

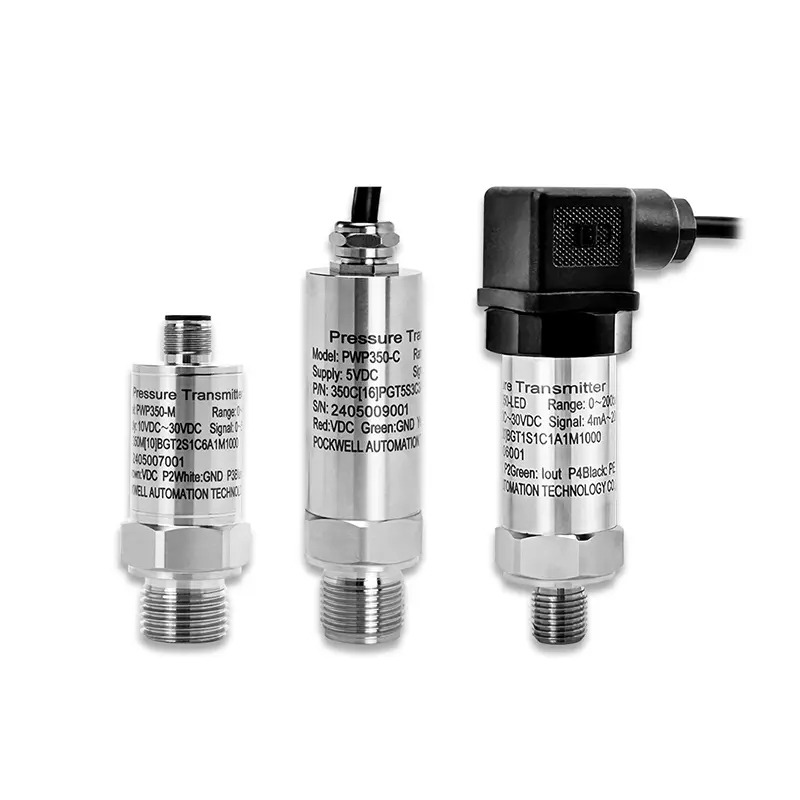

PWP330 Hydraulic Pressure Sensor

Applications

  • Hydraulic and pneumatic systems
  • Metallurgy
  • Oxygen service
  • Chemical industry
  • Oil&gas pipeline network, refining
  • Coal and mine
  • Shipping and aerospace
  • Oil engine and generator units
Request Price PDF Download

Advantages

  • Impact-resistant, high-temperature-resistant
  • Long-term stability and high reliability
  • No oil fill-Prevents thermal instability & leakage
  • A high level of EMC protection

The compact sputtered thin film pressure transducer is hydraulic system thin film pressure transducer. It’s high overload thin film pressure sensor robust design offers exceptional 0.25% FS accuracy in pressure ranges from 0 bar to 2,500bar, a perfect solution for hydraulic pressure measurement applications.

Resources

Datasheet

File NameTimeTypeDownload
PWP330 Hydraulic Pressure SensorSep 25, 2025PDF

Technical Parameters

ModelPWP330
Pressure TypeRelative (gauge) /Absolute pressure
Pressure Range0MPa~1MPa …250MPa
Safe Overload≤200%FS (0~60MPa);       ≤150%FS (70~250MPa)
Burst Pressure≤300%FS
Electrical Connection & IP RatingM12*4pins connector... IP67
DEUTSCH DT04-3P...IP66
DIN43650 Hirschmann Connector... IP65
Directly outlet cable... IP67
Accuracy±0.5%FS, ±0.25%FS, ±0.1%FS by customized
Signal Output4-20mA/0.5-4.5V/0-5V/0-10V
Power Supply5VDC/8-32VDC/12-30VDC
Response Time≤3ms
Long-term Stability (%FS/year) ≤0.5 for 0.5%FS accuracy
Working Temp.Medium -40℃~+125℃, Environmental -40℃~+85℃
Storage Temp.-40℃~+85℃
Body MaterialSUS304 stainless steel, 316L optional
Material of Diaphragm17-4PH stainless steel
Pressure Connect PortM20x1.5 male, G1/4” male, 1/4”NPT male, 1/8”NPT male, G1/2”male, 1/2” NPT, male and female optional
