Thermocouple Temperature Sensor

Armored thermocouple temperature sensors are widely used in various production processes to directly measure the temperature of liquid, steam and gas media and solid surfaces within the range of -40 to 1600°C. Thermocouple sensors are mainly composed of junction boxes, terminal blocks, protective tubes, insulating sleeves, and hot electrodes. The temperature sensor adopts a fully welded structure and a high-strength stainless steel shell. It is widely used in automated temperature measurement and control systems.

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

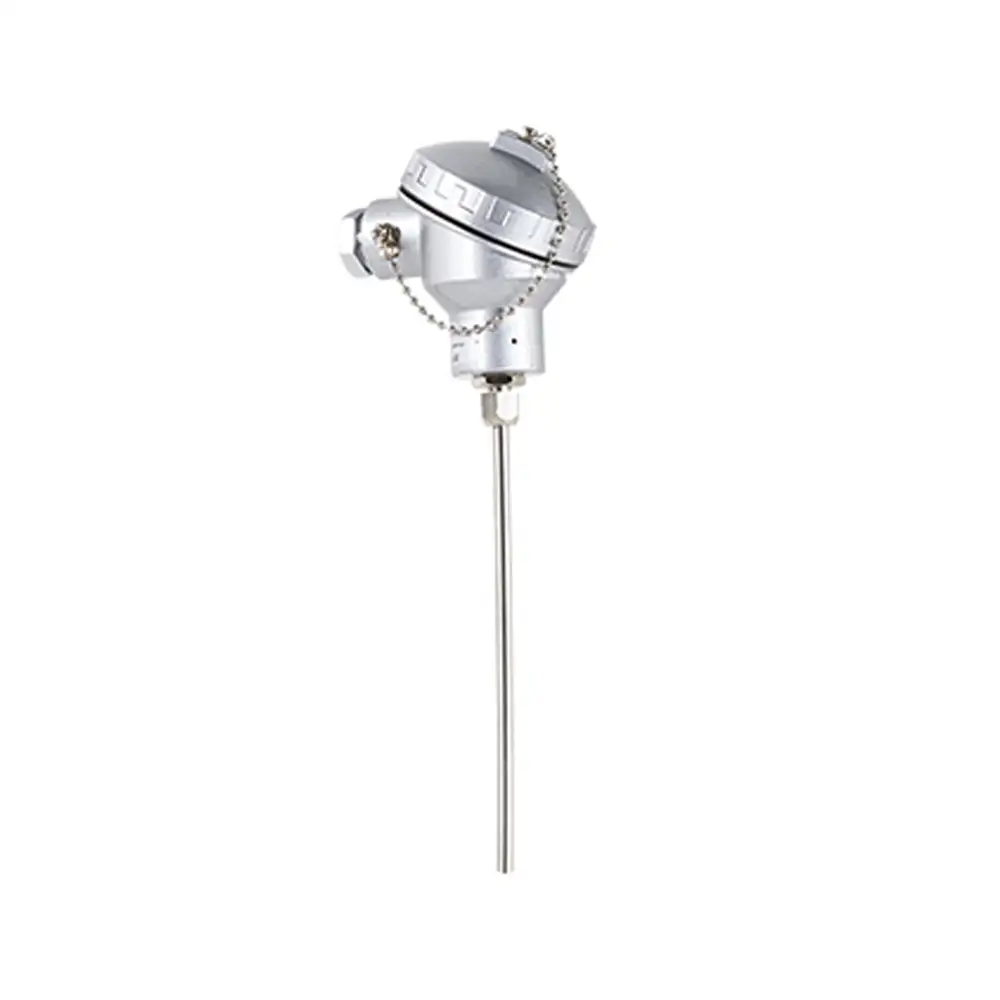

PWT4400 Armored Thermocouple Temperature Sensor

Features

K, N, E, J, T, S type thermocouple
Universal for fluid, steam, gas and solid
Max 1100℃
Probe diameter optional
Variety installations methods

PWT4400 Armored Thermocouple Temperature Sensor

Applications

Petroleum machinery
Chemical machinery
Electric power
Boiler
Natural gas
Agricultural
Automatic temperature measurement

Request Price PDF Download

Advantages

High accuracy I and II class
Good pressure and vibration resistance
Fast response
Easy installation
Good mechanical strength

The armored thermocouple temperature sensors offers reliable temperature measurement for extreme conditions, especially High Temp Type K Thermocouple Probes is used as high temperature sensor 1000℃ application. Thermowell temperature sensor are mainly composed of junction boxes, terminal blocks, protective tubes, insulating sleeves, and hot electrodes.

Resources

Datasheet

File Name	Time	Type	Download
PWT4400 Armored Thermocouple Temperature Sensor	Sep 26, 2025	PDF

Technical Parameters

K (Ⅰclass )	-40~+375℃, ±1.5℃
N (Ⅰclass )	-40~+375℃, ±1.5℃
E (Ⅰclass )	-40~+375℃, ±1.5℃
J (Ⅰclass )	-40~+375℃, ±1.5℃
T (Ⅰclass )	-40~+125℃, ±1.5℃
S (Ⅰclass )	0~+1100℃, ±1℃
