Safety in Hazardous Areas: Using Explosion-Proof Sensors

Safety is the highest priority in industries where hazardous gases, vapors, and dust are present. From offshore oil rigs to chemical processing plants and grain silos, one spark could cause a catastrophic explosion. That is why companies rely on explosion-proof sensors to ensure reliable monitoring without introducing risks.

Below will tell you what explosion-proof sensors are, how hazardous areas are classified, and why they are essential for protecting people, assets, and the environment.

What are Explosion-Proof Sensors?

Explosion-proof sensors are designed to operate safely in environments with flammable gases, vapors, or dust. Their robust housings prevent internal sparks or hot surfaces from igniting the surrounding atmosphere.

Unlike standard sensors, they are engineered with flameproof enclosures, heavy-duty seals, and certified components that meet strict international safety standards such as ATEX (European Union), IECEx (global standard), and UL/CSA(North America).

It is important not to confuse explosion-proof sensors with intrinsically safe sensors. Explosion-proof devices contain potential ignition sources within a flameproof housing, while intrinsically safe devices limit energy to prevent sparks altogether. Both approaches improve safety, but explosion-proof designs are often preferred for high-risk areas like oil refineries or gas pipelines.

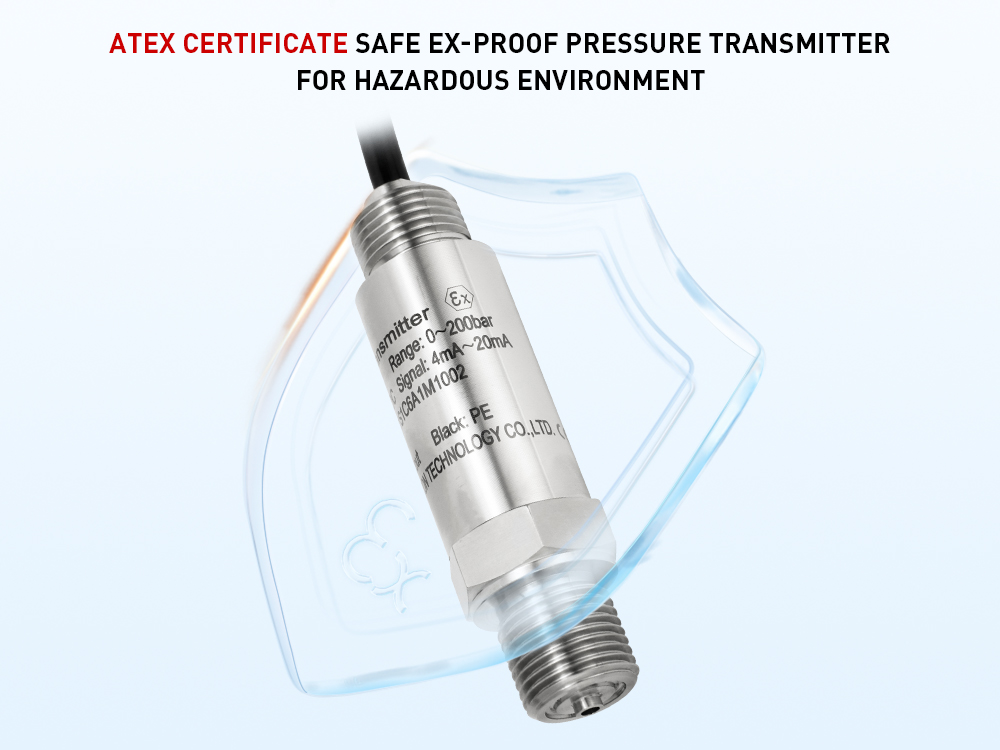

ATEX Certified Explosion-Proof Pressure Transmitter

Hazardous Areas Classification

To understand where hazardous area sensors are required, it’s necessary to know how areas are classified.

ATEX / IECEx Zones (Europe & International)

• Zone 0: An explosive atmosphere is present continuously (e.g., inside fuel tanks).
• Zone 1: Explosive atmosphere is likely to occur during normal operation (e.g., near pump seals).
• Zone 2: Explosive atmosphere is unlikely but possible for short periods.

NEC Class/Division (North America)

• Class I, Division 1: Hazardous gases/vapors present during normal operations.
• Class I, Division 2: Hazardous gases/vapors present only under abnormal conditions.

Choosing the correct explosion-proof sensor depends on the classification of the installation area.

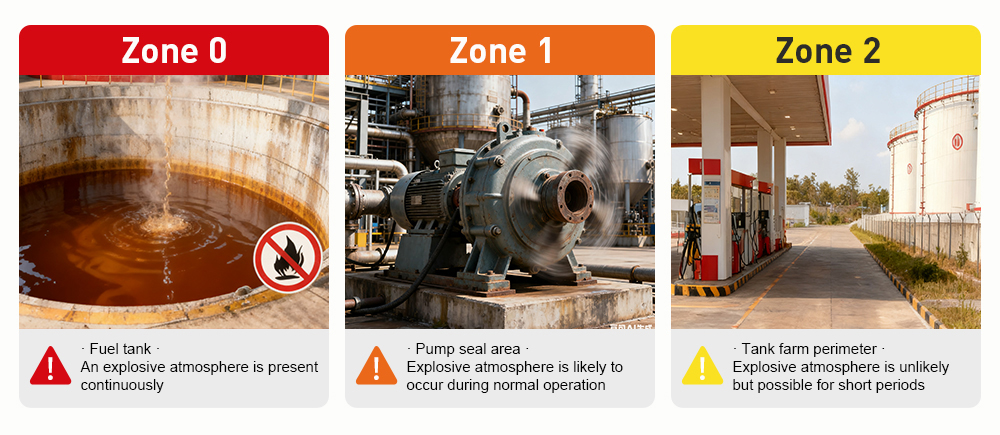

ATEX Hazardous Area Classification Zones

Key Features of Explosion-Proof Sensors

1. Rugged Housing & Flameproof Enclosure
   Built from stainless steel or aluminum alloy with sealed joints to prevent ignition.
2. Certified Compliance
   Look for ATEX, IECEx, UL, or CSA certifications to ensure international approval.
3. Wide Operating Temperature Range
   From freezing Arctic conditions to hot refineries, explosion-proof sensors must remain stable.
4. Long-Term Reliability
   Resistant to dust, humidity, corrosion, and vibration, ensuring continuous monitoring with minimal downtime.

Applications of Explosion-Proof Sensors

Oil & Gas Industry

Explosion-proof pressure sensors and level sensors monitor pipelines, tanks, and offshore drilling rigs, preventing leaks and accidents.

Chemical Processing Plants

Explosion-proof gas detectors measure toxic vapors, while explosion-proof temperature sensors protect reactors and storage tanks.

Mining Operations

Methane gas monitoring is critical for miner safety. Explosion-proof sensors ensure early detection of dangerous gas buildups.

Food & Grain Industry

Grain dust explosions are a known hazard in silos and mills. Explosion-proof sensors for dust detection reduce risks in these facilities.

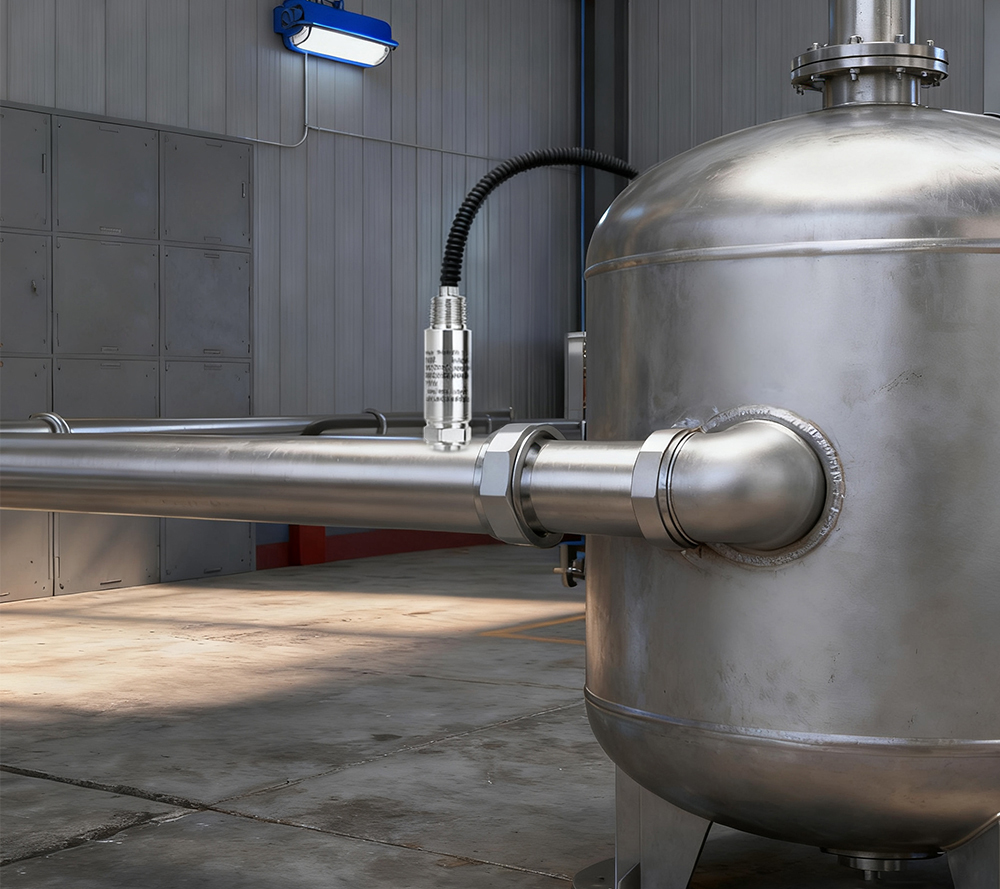

Explosion-Proof Pressure Sensor Installation

Benefits of Using Explosion-Proof Sensors

• Enhanced Safety: Prevents ignition in explosive atmospheres.
• Regulatory Compliance: Meets international safety standards.
• Reduced Downtime: Avoids costly shutdowns due to unsafe equipment.
• Long-Term Cost Savings: Fewer replacements, less maintenance, higher uptime.

Selection Guide: How to Choose the Right Explosion-Proof Sensor

When selecting an explosion-proof sensor, consider:

Sensor Type

• Explosion-proof temperature sensor (monitoring heat in hazardous tanks).
• Explosion-proof pressure sensor (oil pipelines, chemical reactors).
• Explosion-proof level sensor (storage tanks, silos).
• Explosion-proof gas detector (methane, hydrogen, VOCs).

Certification

• Ensure compliance with ATEX, IECEx, UL, or CSA, depending on your region.

Output Signal

• Choose between 4–20mA, Modbus, HART, or wireless protocols, based on your control system.

Maintenance and Installation

• Look for sensors designed with easy calibration and minimal maintenance needs.

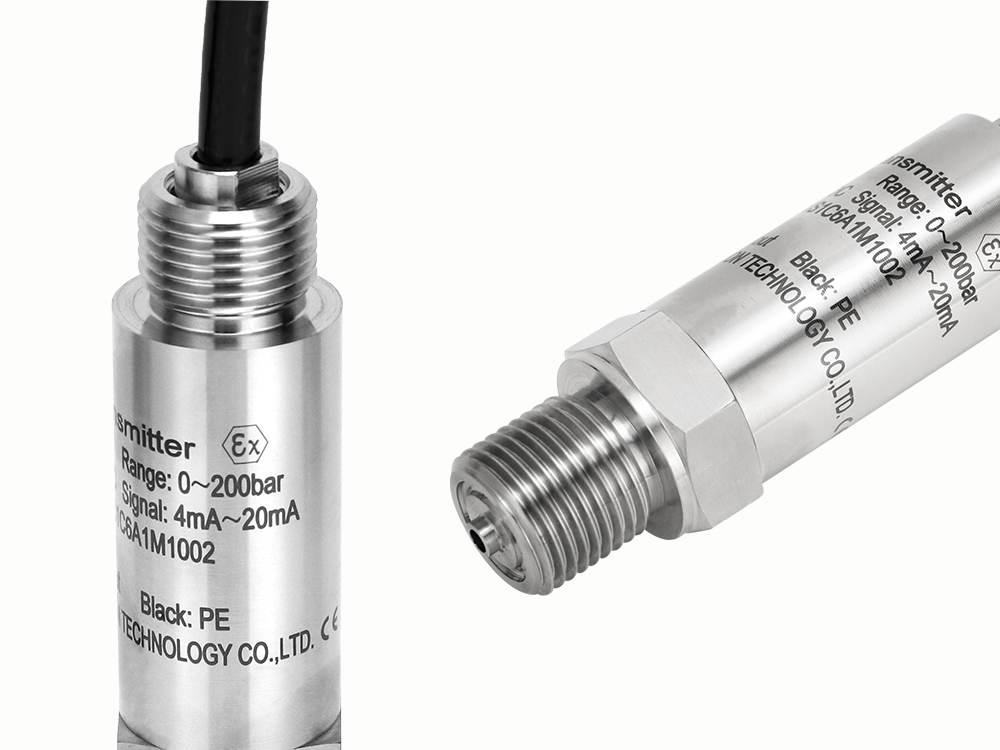

Explosion-Proof Pressure Transmitter Close-Up View

Conclusion

In hazardous areas, safety and compliance are non-negotiable. By using explosion-proof sensors, industries such as oil and gas, mining, and food processing can reduce risks, protect workers, and meet strict regulatory standards.

The right explosion-proof temperature, pressure, level, or gas sensor ensures reliable monitoring in explosive atmospheres, helping your business operate with confidence and security.

At Pokcensertech, we are dedicated to supporting industrial safety with reliable, certified solutions. We provide expertise in sourcing and applying explosion-proof sensors for hazardous environments.

Looking for explosion-proof sensors manufacturer? Contact us today for expert guidance and tailored solutions for your industry.

Frequently Asked Questions (FAQ)

Q1: What’s the difference between explosion-proof and intrinsically safe sensors?

 Explosion-proof sensors contain ignition sources within flameproof housings, while intrinsically safe sensors limit energy to prevent sparks.

Q2: Do all hazardous areas require explosion-proof sensors?

 Not always. Zone/Division classification determines whether explosion-proof, intrinsically safe, or standard sensors are required.

Q3: How do I maintain explosion-proof sensors?

Perform regular inspections, ensure enclosures remain sealed, and follow manufacturer calibration schedules.

Q4: Which certifications should I look for?

ATEX (EU), IECEx (global), UL/CSA (North America) are the most common.

Q5: Can explosion-proof sensors work in both dust and gas environments?

 Yes, but the certification must specifically cover both types of hazards. Always confirm before installation.
