Capacitive Level Sensors: Principles & Best Use Cases

Liquid and solid level measurement presents unique challenges across process industries, from managing corrosive chemicals to monitoring sticky food products and detecting powders in storage silos. While many level sensing technologies exist, capacitive level sensors offer a versatile solution that handles difficult materials and challenging conditions where other technologies struggle. Understanding how capacitance level measurement works and identifying the best applications helps engineers and plant managers select the optimal technology for their specific needs.

How Capacitive Level Sensors Work: Understanding the Principles

Capacitive level sensors operate on the fundamental principle of capacitance—the ability of a system to store electrical charge. In its simplest form, a capacitor consists of two conductive plates separated by a dielectric material (insulator). The capacitance value depends on three factors: the surface area of the plates (A), the distance between them (d), and the dielectric constant (ε) of the material between the plates, expressed in the formula: C = ε × A / d.

In a capacitive liquid level sensor, the probe itself acts as one electrode, while the tank wall (for metal tanks) or a reference electrode (for non-conductive tanks) serves as the second electrode. The process material between them acts as the dielectric. As liquid level rises or falls, the dielectric between the electrodes changes—from air (dielectric constant ≈ 1) to the process material (with a higher dielectric constant), causing a measurable change in capacitance.

RF admittance level sensors represent an advanced form of capacitive level measurement technology that uses radio frequency signals to measure not just capacitance but also conductance (the inverse of resistance). This RF capacitance level switch technology effectively compensates for material buildup on the probe—a common challenge in sticky or coating applications—by distinguishing between actual level changes and coating effects.

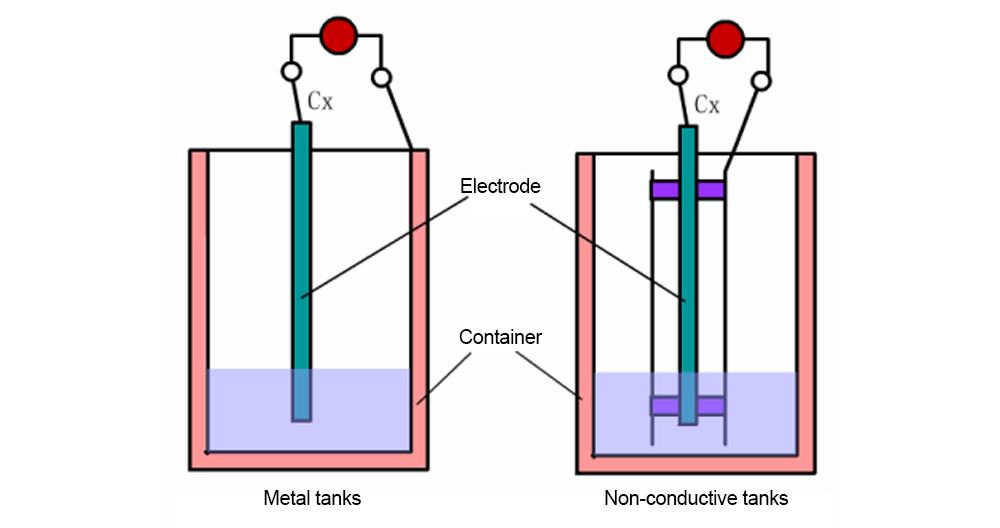

Figure 1. Basic working principle of capacitive level sensors — measuring capacitance between an electrode and container wall in metal or non-conductive tanks.

Types of Capacitive Level Sensors for Different Applications

Capacitive probe level sensors come in various configurations to suit different measurement requirements. Rod-style probes are the most common, featuring a single stainless steel or PTFE-coated rod that extends into the tank. These continuous capacitive level sensors provide analog output proportional to level height, making them ideal for inventory management and process control.

Capacitive point level sensors act as switches, providing discrete on/off signals when material reaches a specific height. These capacitive level switches are commonly used for high-level alarms, low-level warnings, and pump control applications. Multiple switches at different heights can provide multi-point level indication.

Coaxial capacitive level transmitters feature a probe within a probe design, where the inner and outer conductors form the capacitor. This configuration provides better shielding from external interference and more consistent performance with highly conductive materials.

Non-contact capacitive sensors represent a specialized category that can measure level through non-metallic tank walls without process contact. These sensors work by detecting capacitance changes in the material inside the container, making them useful for sealed vessels or applications where process penetration is undesirable.

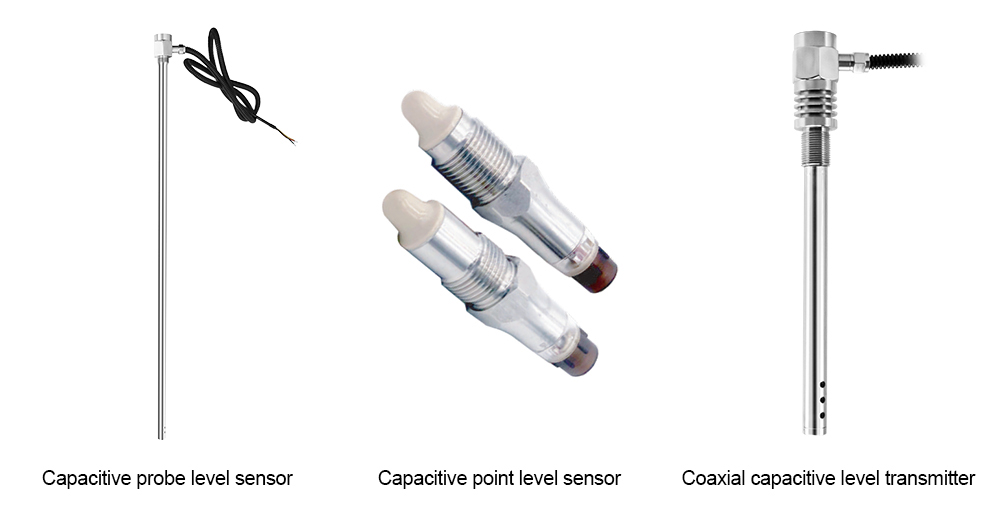

Figure 2. Common configurations of capacitive level sensors — probe-type, point-level, and coaxial transmitters for liquids, powders, and granular materials.

Key Advantages of Capacitive Level Measurement Technology

Capacitive level sensors contain no moving parts, unlike float switches or mechanical level indicators. This solid-state design delivers exceptional reliability and longevity, even in harsh process conditions. The absence of mechanical components eliminates wear-related failures and reduces maintenance requirements significantly.

Versatility across material types represents another major advantage. Capacitive liquid level sensors work with both conductive and non-conductive liquids, from water and acids to oils and solvents. They also handle solids including powders, granules, and pellets. This makes capacitance level measurement one of the few technologies suitable for interface detection between immiscible liquids, such as oil-water separation.

Capacitive level detectors remain unaffected by process pressure, temperature fluctuations, or material density variations within reasonable ranges. Unlike pressure-based level measurement, density changes don’t affect reading accuracy. The technology also handles viscous, sticky materials that would quickly foul mechanical sensors.

Installation flexibility is significant. Capacitive probe level sensors mount through standard threaded connections or flanges, require minimal space, and in some applications can measure through tank walls. The simple two-wire design of many capacitive level switches simplifies wiring and reduces installation costs.

Best Use Cases: Where Capacitive Level Sensors Excel

In chemical processing, RF admittance level sensors reliably monitor corrosive liquids, solvents, and aggressive chemicals that would damage or destroy mechanical sensors. The ability to coat probes with chemically resistant materials like PTFE or ceramic extends their use to even the most challenging chemical applications.

Food and beverage production leverages capacitive level measurement for monitoring sticky products like syrups, honey, chocolate, and sauces. Capacitive level transmitters with sanitary tri-clamp connections and FDA-approved materials ensure hygienic operation while handling products that would coat and disable mechanical level switches. Granular materials like sugar, flour, and grain in storage silos are effectively monitored with capacitive point level sensors.

Pharmaceutical manufacturing demands the precision and cleanliness that capacitive liquid level sensors provide. The technology’s ability to work in sterile environments, combined with validation-friendly designs and materials, makes it ideal for monitoring API solutions, buffer tanks, and sterile water systems.

The plastics and polymer industry uses capacitive level sensors extensively for monitoring plastic pellets in storage silos, detecting resin levels in mix tanks, and controlling powder feeders. The technology’s immunity to dust and ability to work through plastic vessel walls provides unique advantages in these applications.

Wastewater treatment facilities employ RF capacitance level switches for monitoring clarifiers, settling tanks, and lift stations. The sensors’ resistance to fouling and ability to function in turbulent, aerated conditions makes them more reliable than ultrasonic or float-based technologies in these demanding applications.

Figure 3. Example of capacitive level measurement in a mobile liquid storage system such as a tanker truck.

Comparing Capacitive Sensors with Other Level Technologies

When comparing capacitive level sensors to float switches, the advantages become clear. Float switches have moving parts that fail, cannot handle thick or coating materials, and require sufficient liquid buoyancy. Capacitive level switches have no moving parts, handle virtually any liquid or solid, and mount in any orientation.

Ultrasonic level sensors work well for clean liquids in calm conditions but struggle with foam, turbulence, vapor, and coating materials. Capacitive level measurement works reliably regardless of surface conditions, making it superior for challenging applications, though ultrasonic sensors offer longer measurement ranges for large tanks.

Radar level sensors provide excellent non-contact measurement for large storage tanks but come at significantly higher cost. Capacitive level transmitters offer better value for smaller vessels and applications where probe contact is acceptable. Radar also struggles with low dielectric materials where RF admittance level sensors excel.

Pressure-based level measurement requires knowledge of fluid density and is affected by density variations. Capacitance level measurement is immune to density changes, making it more reliable for applications where density varies with temperature, concentration, or mixing.

Critical Factors Affecting Capacitive Level Sensor Performance

The dielectric constant of the process material fundamentally determines capacitive level sensor sensitivity and range. Materials with higher dielectric constants (water ≈ 80, many solvents 2-40) provide stronger signals and easier detection than low-dielectric materials like oils and hydrocarbons (ε = 2-4). Most capacitive level detectors require a minimum dielectric constant of 1.5-2.0 for reliable operation.

Tank construction material and wall thickness affect measurement, especially for non-contact capacitive sensors. Metal tanks provide natural grounding, while plastic or fiberglass tanks require reference electrodes or special probe designs. Thick-walled vessels may require higher-sensitivity settings or different probe configurations.

Material buildup on the probe—a phenomenon called coating or fouling—can affect accuracy in basic capacitive level sensors. However, RF admittance level sensors actively compensate for coating effects, maintaining accuracy even when significant buildup occurs. Regular cleaning or self-cleaning probe designs minimize this issue.

Temperature and pressure extremes require appropriate probe materials and electronic specifications. While capacitance level measurement itself is relatively immune to these factors, physical components must withstand process conditions. Most industrial capacitive sensors operate from -40°C to 150°C, with special designs available for more extreme conditions.

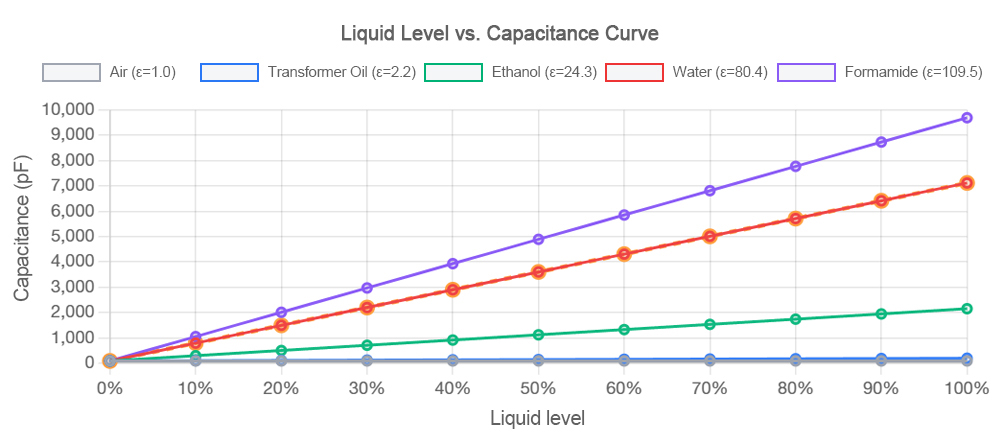

Figure 4. Capacitance changes with liquid level and dielectric constant — demonstrating sensitivity differences between various process materials.

Selection Guidelines for Capacitive Level Sensors

Begin selection by characterizing your process material. Identify the dielectric constant, conductivity, viscosity, and tendency to coat or foam. For low-dielectric materials (ε < 5), specify RF admittance level sensors with enhanced sensitivity. For conductive materials, ensure the probe has appropriate insulation.

Determine measurement requirements: point level detection or continuous measurement? Capacitive level switchesprovide simple on/off control at specific heights, while capacitive level transmitters deliver analog signals for continuous monitoring and control. Multiple capacitive point level sensors can provide economical multi-point indication.

Select probe material based on chemical compatibility and temperature requirements. Stainless steel 316L suits most applications, but consider Hastelloy for highly corrosive environments, PTFE coating for sticky materials, or ceramic for abrasive slurries. Ensure all wetted materials meet process requirements and any sanitary or purity standards.

Consider tank characteristics when choosing installation method. Top-mounted probes work for most applications, while side-mounted or bottom-mounted configurations suit special cases. For non-metallic tanks, select models with built-in reference electrodes. Non-contact capacitive sensors work through tank walls but require non-metallic construction.

Output signal selection depends on control system requirements. Two-wire 4-20mA loop-powered designs simplify wiring, while relay outputs suit direct pump control. Digital protocols (HART, Modbus, PROFIBUS) enable remote configuration and diagnostics.

Installation and Commissioning Best Practices

Install capacitive probe level sensors away from tank inlets, agitators, and other sources of turbulence or direct material impact. Maintain minimum clearances from tank walls as specified by manufacturers—typically 50-100mm—to prevent false readings from proximity effects.

Choose probe length to extend into the material at its lowest desired detection point, with additional length for mounting hardware. For continuous capacitive level sensors, ensure the probe spans the full measurement range. For capacitive level switches, position the probe tip at the desired switching height.

Proper grounding is essential for reliable operation. Metal tanks provide natural ground reference, but ensure good electrical continuity. Non-metallic tanks require reference electrodes or grounded metal rods installed near the sensing probe. Follow manufacturer grounding recommendations precisely to avoid measurement errors.

Sensitivity adjustment accommodates different dielectric constants and application conditions. Most RF capacitance level switches feature adjustable sensitivity, either via potentiometer or digital configuration. Start with manufacturer recommendations based on material dielectric constant, then fine-tune based on actual performance.

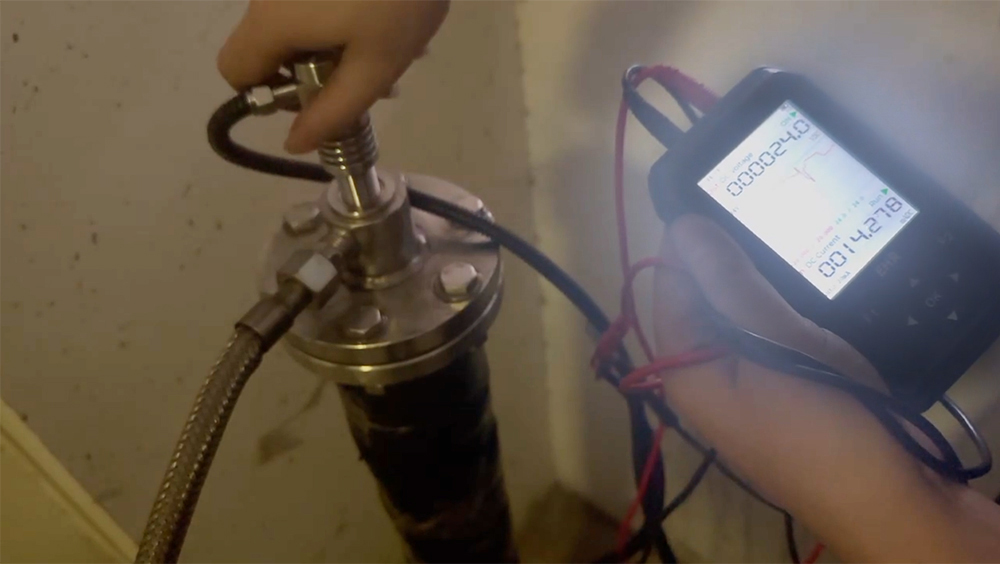

Figure 5. Field calibration and inspection of a capacitive level transmitter to ensure accuracy and reliable performance.

Troubleshooting and Maintenance for Optimal Performance

False alarms or erratic readings often indicate coating buildup on basic capacitive level sensors. Clean probes periodically using appropriate methods for the material—warm water for food products, solvents for oils, or mechanical cleaning for heavy buildup. RF admittance level sensors resist coating effects but still benefit from periodic inspection.

Sensitivity drift over time may result from electronic component aging or changing process conditions. Re-calibrate capacitive level transmitters annually or whenever process materials change significantly. Many modern capacitive level detectors include self-diagnostic features that identify calibration needs.

If a capacitive level switch fails to operate, verify power supply voltage, check for damaged cables or loose connections, and confirm the probe isn’t damaged or excessively coated. Use manufacturer diagnostic tools or test modes to verify sensor function independently of process conditions.

Preventive maintenance for capacitance level measurement systems is minimal but important. Inspect probes quarterly for damage, corrosion, or excessive coating. Verify mounting hardware remains tight. Test switch function monthly in critical applications. Document sensitivity settings and calibration data for future reference.

Innovation and Future Trends in Capacitive Level Sensing

Smart capacitive level sensors with microprocessor-based electronics provide advanced features including automatic sensitivity adjustment, built-in diagnostics, and multi-point calibration. These intelligent devices adapt to changing process conditions and alert operators to potential issues before failures occur.

Wireless capacitive level transmitters eliminate wiring costs and enable monitoring in remote or mobile tanks. Battery-powered designs with ultra-low power consumption operate for years, transmitting data via WirelessHART, LoRaWAN, or cellular networks.

Multi-point capacitive probe level sensors integrate multiple sensing elements in a single probe, providing level profiling and improved accuracy. This approach reduces installation penetrations while delivering more comprehensive level information.

IoT integration connects industrial capacitive sensors to cloud platforms for centralized monitoring, data analytics, and predictive maintenance. Machine learning algorithms analyze historical performance to optimize sensitivity settings and predict maintenance needs.

Looking for reliable level measurement solutions for challenging applications? Our range of capacitive level sensors, RF admittance level switches, and capacitive level transmitters handles the toughest materials and conditions your process presents. From corrosive chemicals to sticky food products and dry bulk powders, we have the expertise and products to ensure accurate, reliable level monitoring.

Contact our application engineers today for technical consultation, custom sensor recommendations, or to request samples and pricing for capacitive level measurement solutions tailored to your specific application.

FAQs About Capacitive Level Sensors

How do capacitive level sensors work?

Capacitive level sensors measure changes in electrical capacitance between a probe and ground (or reference electrode) as material level changes. As the dielectric material (process liquid or solid) rises or falls around the probe, capacitance changes proportionally, providing level indication.

What materials can capacitive level sensors measure?

Capacitance level measurement works with both conductive and non-conductive liquids, including water, oils, solvents, acids, and bases. They also measure solids like powders, granules, and pellets. The material must have a dielectric constant above approximately 1.5-2.0.

What is the difference between capacitive and RF admittance level sensors?

RF admittance level sensors are advanced capacitive level sensors that measure both capacitance and conductance using radio frequency signals. This allows them to compensate for material coating on the probe, providing more reliable measurement in sticky or fouling applications.

Do capacitive level sensors work with low dielectric constant materials?

Yes, but materials with low dielectric constants (< 5) like oils and hydrocarbons require higher-sensitivity capacitive level detectors or RF capacitance level switches specifically designed for low-dielectric applications.

How do you prevent coating from affecting capacitive level sensor accuracy?

Use RF admittance level sensors which actively compensate for coating, apply PTFE or ceramic coating to probes, implement regular cleaning schedules, or use self-cleaning probe designs. In many applications, proper sensitivity adjustment minimizes coating effects.

Can capacitive level sensors measure through tank walls?

Yes, non-contact capacitive sensors can measure level through non-metallic (plastic, fiberglass, glass) tank walls. However, wall material, thickness, and dielectric properties affect measurement range and sensitivity.

What is the typical accuracy of capacitive level measurement?

Capacitive point level sensors typically provide switching accuracy of ±10-25mm, while continuous capacitive level transmitters offer accuracy of ±0.5% to ±1.0% of full scale, depending on installation conditions and material characteristics.

How do capacitive level sensors compare to ultrasonic sensors?

Capacitive level sensors work reliably with foam, turbulence, and coating materials that challenge ultrasonic sensors. However, ultrasonic sensors offer non-contact measurement and longer ranges. Choose based on specific application requirements.
