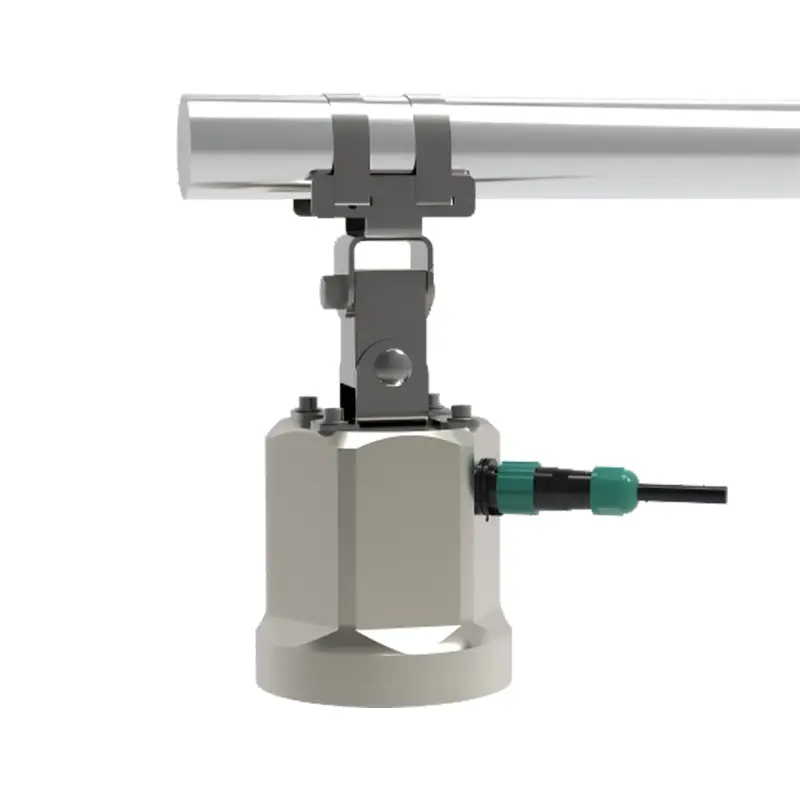

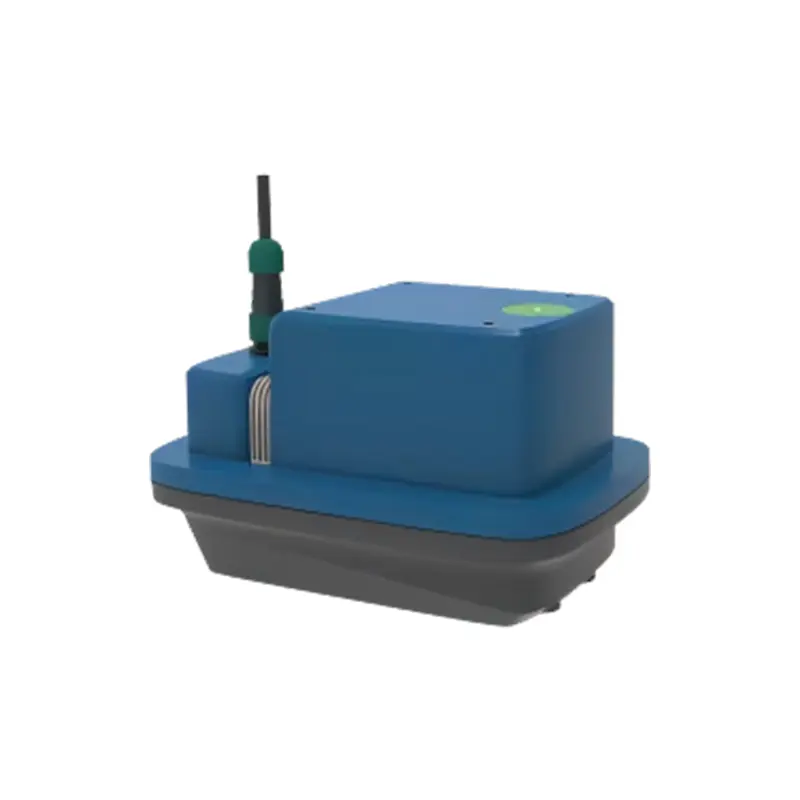

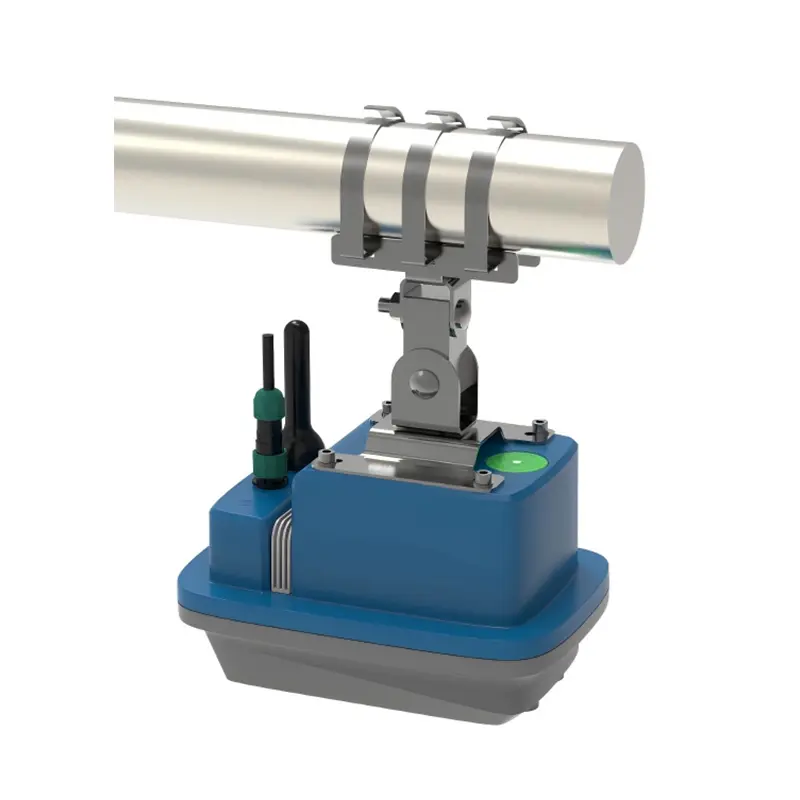

PD300 Radar Water Level Transmitter

Features

Fully waterproof design IP68;
Anti-reverse connection and lightning protection design;
Multiple trigger modes: periodic, trigger, manual, automatic;
Low system power consumption, compatible with solar power supply;
Built-in low-power Bluetooth

Applications

Hydrological survey of rivers, lakes, reservoirs
Water level monitoring of rivers, irrigation canals, flood control
Water level monitoring of urban flood control, waterlogging
Monitoring of rainstorm floods in mountainous areas
Tidal seas level monitoring
Underground pipe network

Request Price PDF Download

Advantages

Very simple installation, very little civil engineering
SDI-12 digital communication optional
Monitoring can also be carried out under high flow conditions during flood season
Light weight and compact structure, wind resistant and anti-shake ability
Built-in angle attitude sensor, which can sense the installation tilt and facilitate installation and debugging

The radar water level meter is a 80GHz FMCW radar non-contact water level sensor for reservoirs, tidal seas, lakes, rivers...with IP68 waterproof, compact and low power consumption. Flat antenna design avoids the hidden dangers of insect nesting and web building and fog affecting radar signals. It is an ideal solar radar level sensor for outdoor use.

Resources

Datasheet

File Name	Time	Type	Download
PD300 Radar Water Level Transmitter	Nov 20, 2025	PDF

Technical Parameters

Model	PD300
Measuring Range	15m/40m/70m/110m
Accuracy	±3mm; ±0.05%FS
Resolution	1mm
Angle Sensor Accuracy	±0.1°
Blind Area	20cm(typical)
Radar Antenna	Planar microstrip array antenna
Radar Frequency	80GHz
Beam Angle	8°
Bluetooth Version	4.2 and above
Bluetooth Module	Internal built-in, for local parameter setting, data viewing, etc Transmission Power +8dBm Receive sensitivity -95dBm at 0.1%BER
Digital Communication	RS485 Modbus RTU(typical), RS232 and SDI-12 (optional)
Analog Output(optional)	4-20mA
Power Supply	7-32VDC; 5.5-32VDC(optional)
Consumption(DC12V)	Standby ＜1mA; Working ≤ 35mA
Working Temperature	-35 ~ 70℃
Storage Temperature	-40 ~ 70℃
Protection Level	IP68
Anti-Lightning Level	6KV
Housing Material	Aluminum alloy, ASA plastic
