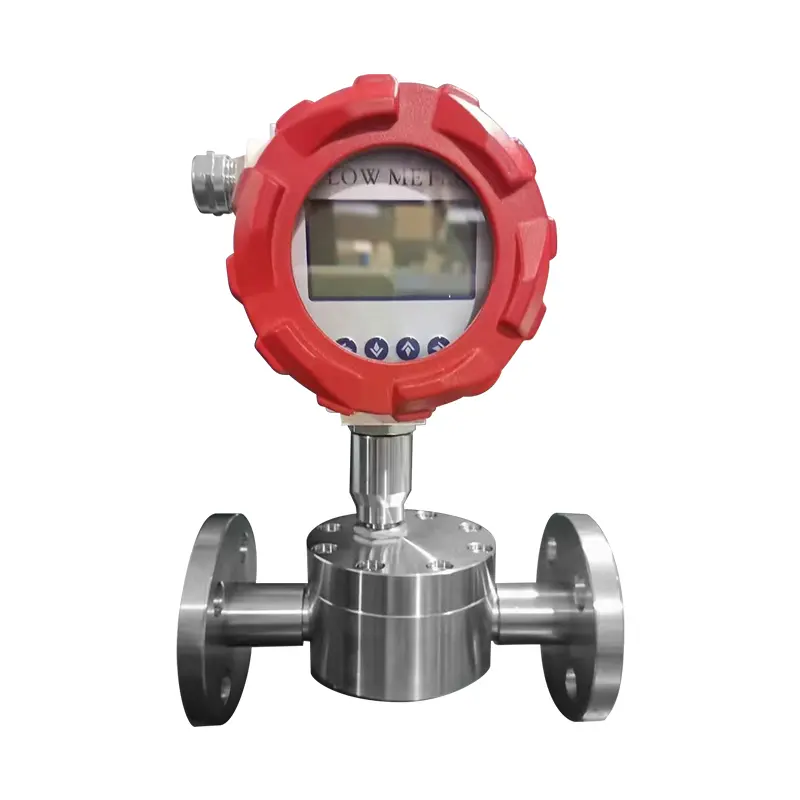

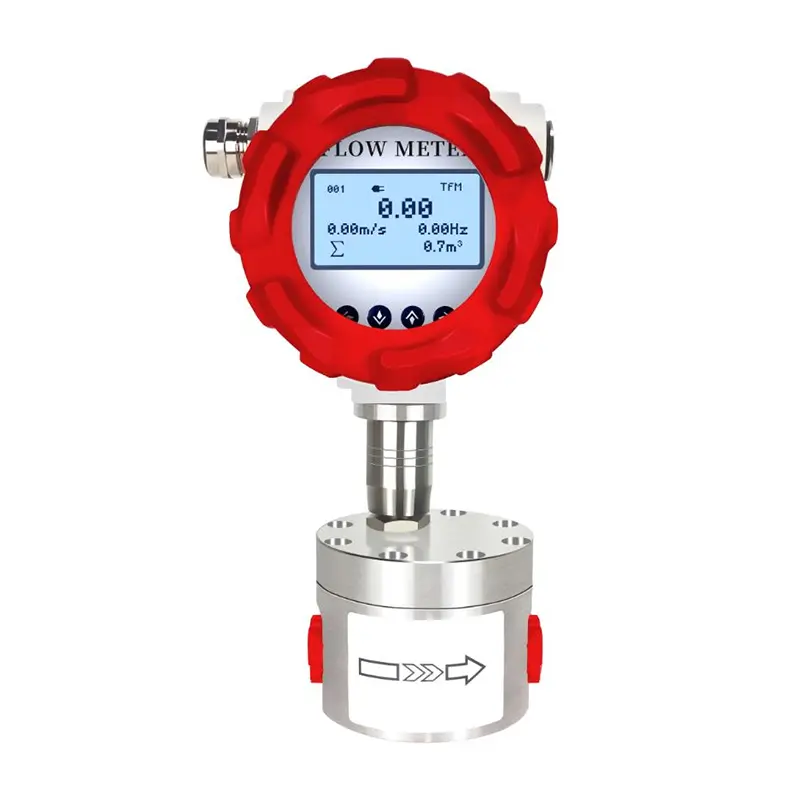

PWF-GF Gear Flow Meter

Features

• Available for strong corrosive liquid (sulfuric acid, hydrofluoric acid, etc.).
• Available for high viscosity medium (syrup, pitch and honey).
• High resolution (10-16P/rpm)
• Multiple signal output types (pulse, analog quantity, RS485 and Hart).

Advantages

• Capable to measure micro flow( GF02 measuring range 0.6-50 l/h)
• High measuring precision and repeatability(read value: ±0.5%, repeatability: 0.1%)
• High and low temperature resistant(-196℃-200℃)
• Wide range ratio of 1: 150

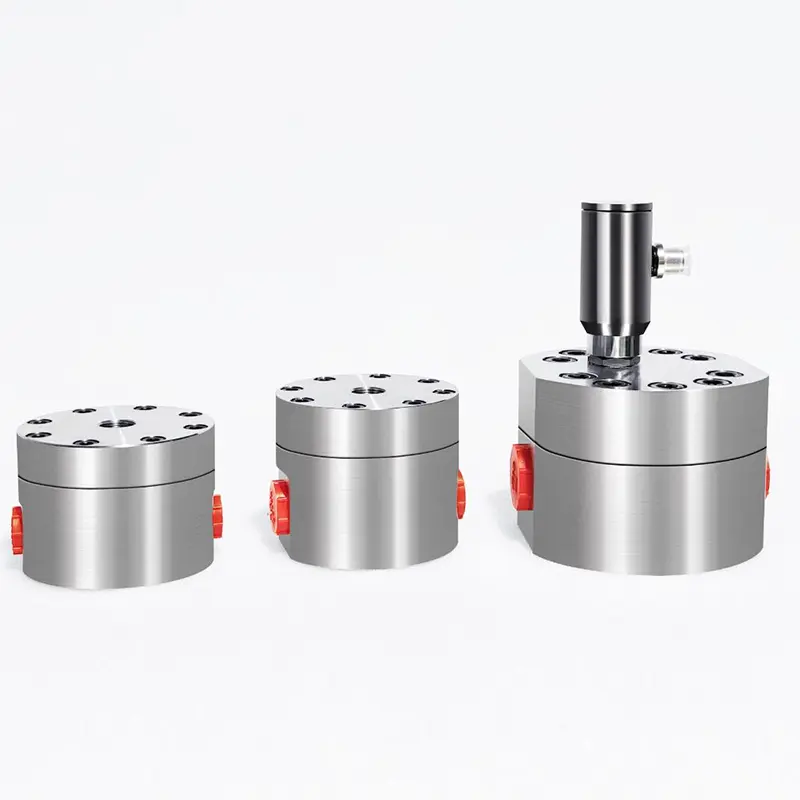

Gear Flow Meter, also known as positive displacement flowmeter (PD Flowmeter for abbreviation), is featured by relatively high precision among flow instruments. The gear flowmeter applies the pressure difference, generated by the liquid while it flows through the flowmeter chamber, to push an air of gears to be engaged, and such two gears are exactly matching with each other and are enclosed in a precision machined chamber. The total volume of liquid is measured by the number of times of repetitive charge of the liquid into and and discharge from the chamber.
