PWF-LTF Liquid Turbine Flow Meter
Features
- Meter diameter: DN4~DN200
- Accuracy: ±0.5%FS
- Range Ratio: 1:10, 1:15, 1:20
- External and battery power supply
- Connection: Flanged, threaded, clamped and wafer
- Measuring media: Water, diesel, oil, alcohol, pure water, non-corrosive no impurity liquids
Applications
- Petroleum processing
- Building automation and municipal
- Chemical industry
- Metallurgy
- Marine and ship
- Food and beverage
- Power generation
Advantages
- Economical price
- High accuracy and highly repeatable
- Simple and firm structure, easy to install and maintain
- Universal mounting positions
- Wide operating range
- Minimal pressure-drop
- Compact and durable design

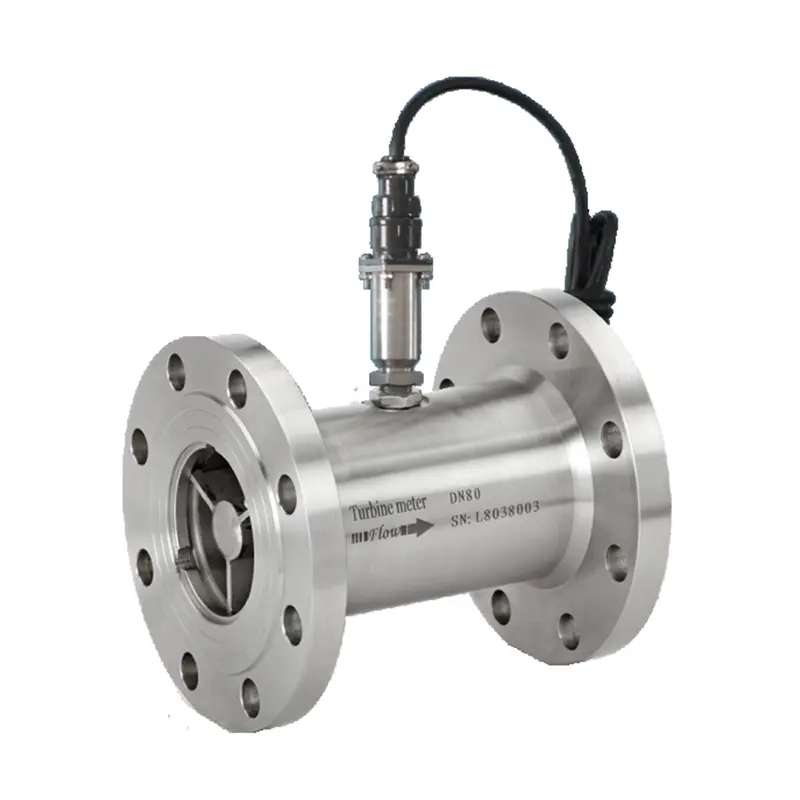

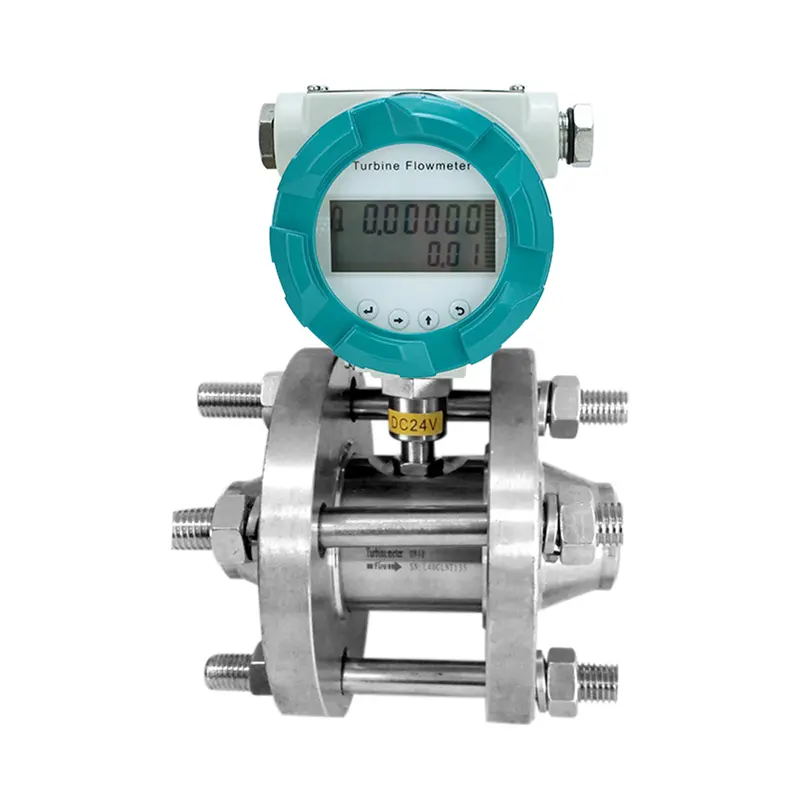

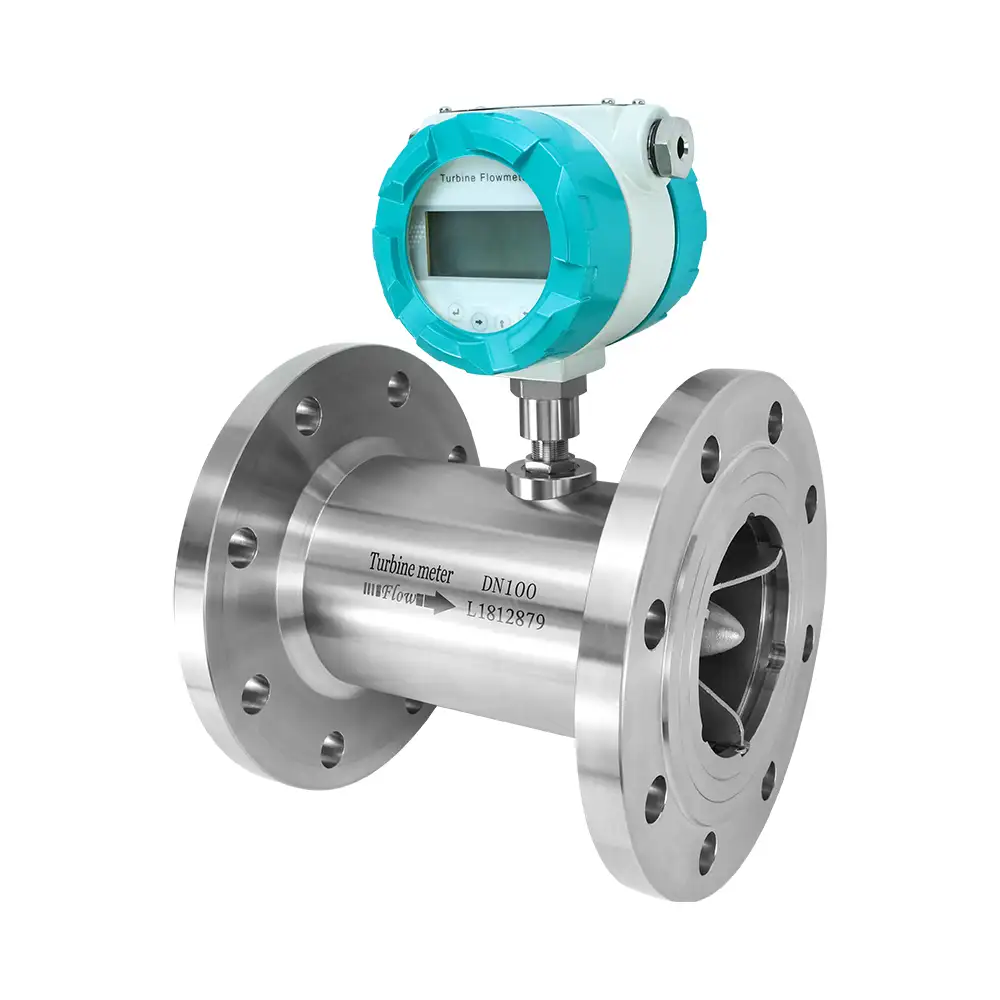

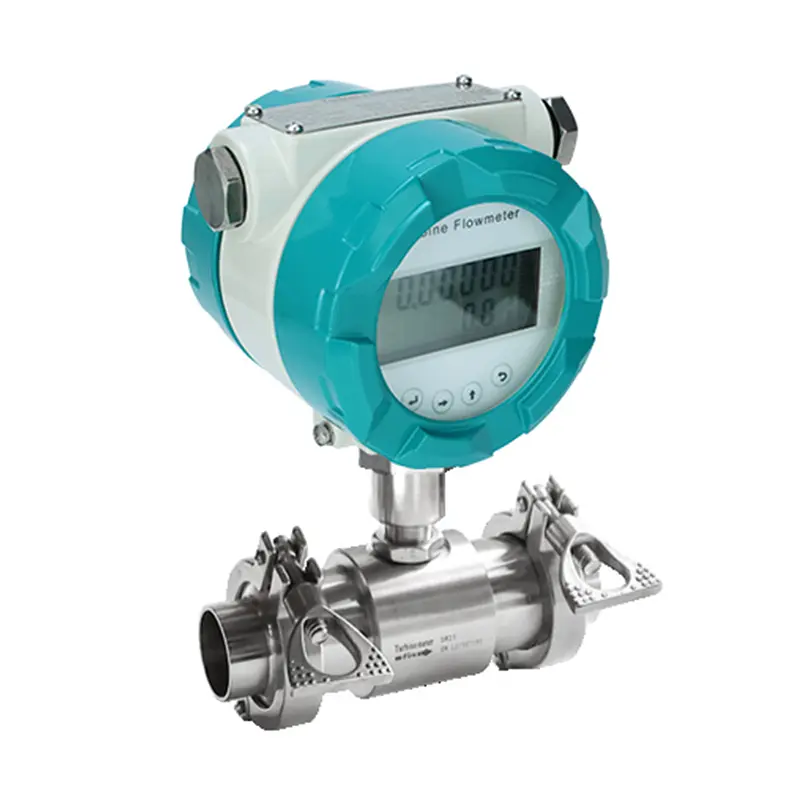

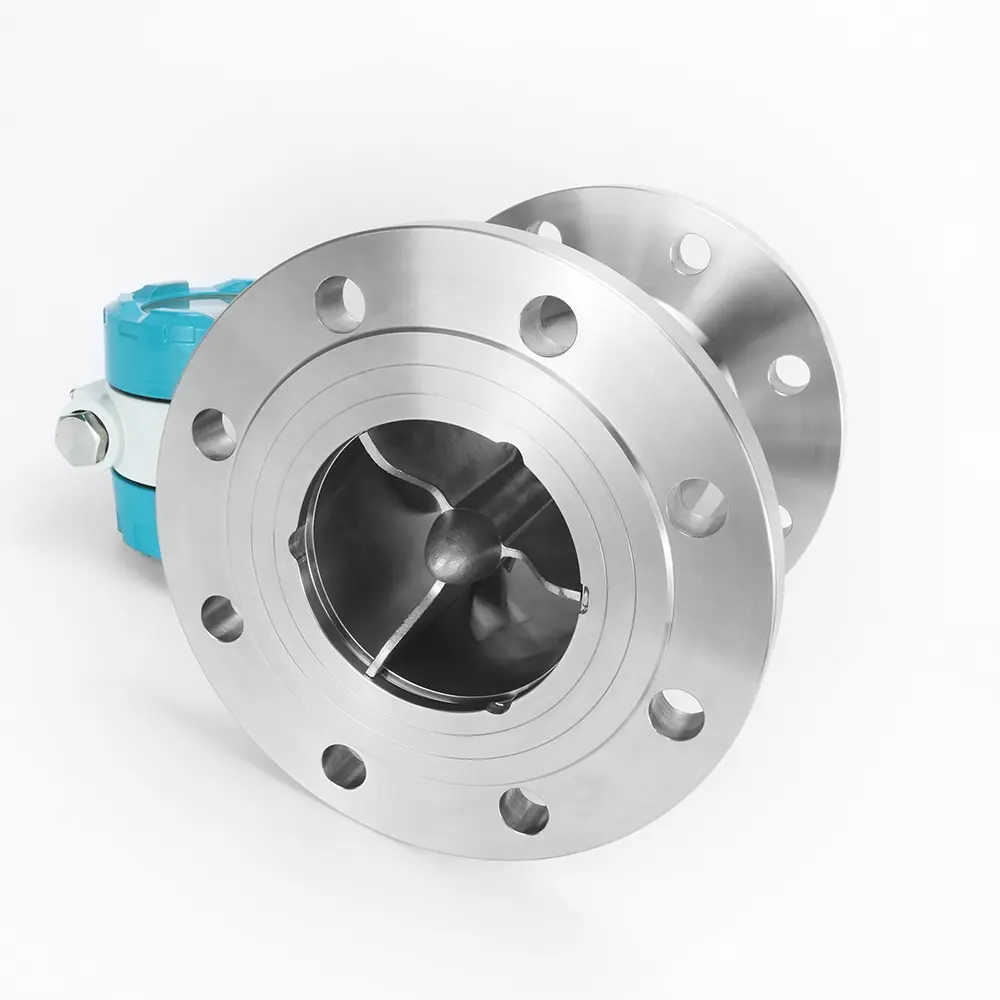

Liquid turbine flow meter is a precision flow measuring instrument that measures the flow rate and total volume of impurity-free and non-corrosive liquids. Especially an ideal solution to be industrial turbine flow meter for diesel and turbine flow meter for custody transfer. Pokcenser provides pulse output turbine flow meter without display, or 4-20mA output with Hirschmann connector, or LCD display with RS485 communication and explosion proof to suit for variety requirements.
Resources
Technical Parameters
| Model | PWF-LTF |
| Meter Diameter | DN4-DN200mm |
| Measurable Medias | Oil, diesel, fuel, LPG, water, seawater, alcohol etc |
| Accuracy | ±0.5%FS |
| Signal Output | 4-20mA/Pulse/RS485/HART |
| Power Supply | 24VDC/220VAC/3.6V Battery |
| Display | LCD |
| Working Temp. | -20℃~150℃ |
| Working Pressure | 0.6MPa-6.3Mpa |
| Protection Level | IP65 |
| Housing Material | SUS304 and 316L optional |
| Rotor Material | 2Cr13, duplex steel optional |
| Flange Material | SUS304, SS316 optional |
| Enclosure Material | Die-cast aluminum alloy |
| Bearing&Shaft Material | Carbon steel coated with Tungsten carbide |
| Installation Method | Threaded/Flanged/Clamp on/Insertion type |
| Electrical Connection | Hirschmann connector or 3-core cable M20*1.5 female |
| Explosion Proof | ExdIICT6 Gb (Optional) |
