Chemical industry is a vast industry that incorporates all different types of product producing industries whose generation is based on heavy use of chemicals. The chemical industry creates an immense variety of products which impinge on virtually every aspect of our lives.
While the Chemical Industry is faced with many challenges. Some of these challenges arise due to the hazardous nature of the chemicals that are being used. Hazardous chemicals must be handled carefully and disposed of in a particular way to ensure that they do not cause damage to the environment or to people.
Pokcenser provides pressure, level, flow and temperature measuring instruments for the chemical industry, ensuring process safety, reliability and easy maintenance.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

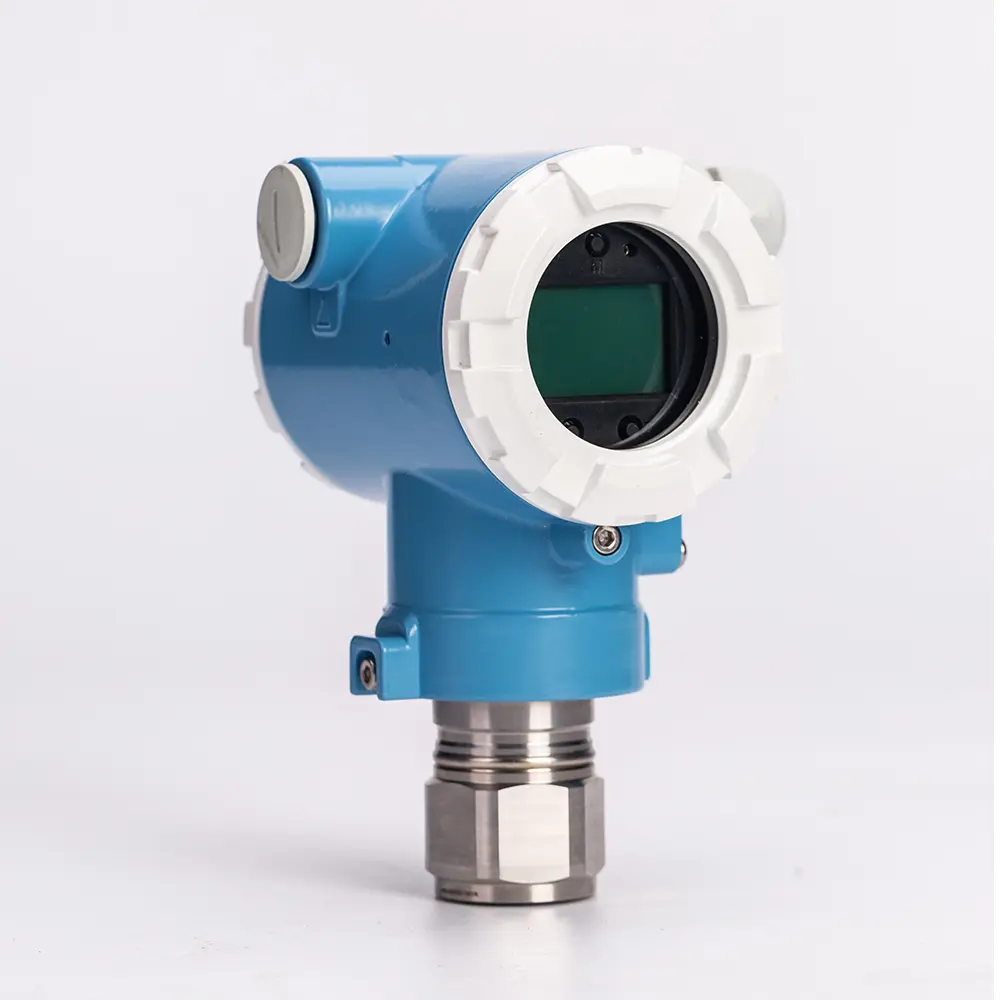

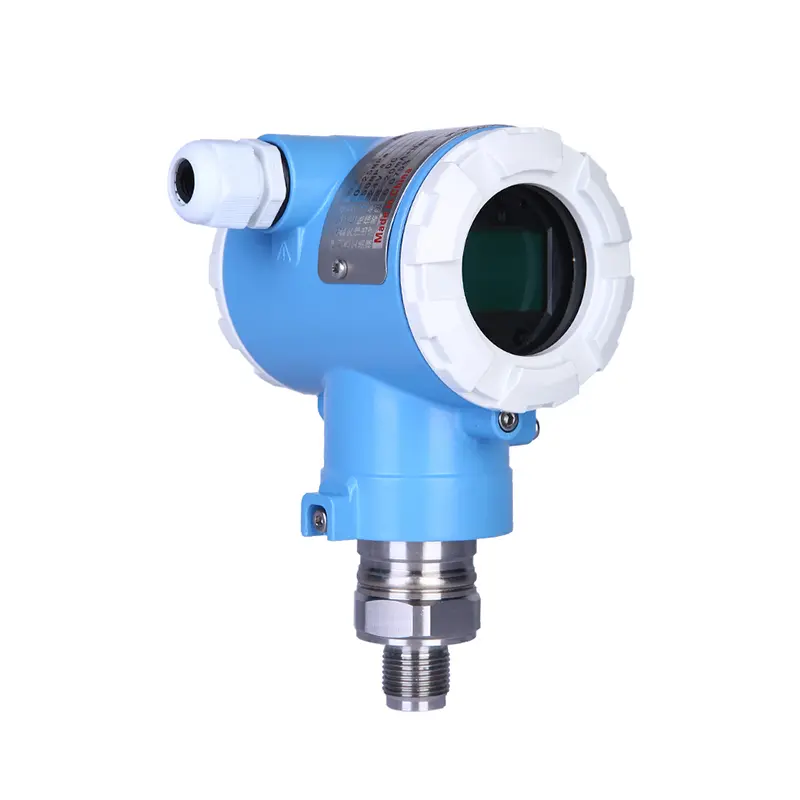

PWP3051P Intelligent Monocrystalline Silicon Pressure Transmitter
Features
- Powerful 24-bit ADC achieves high precision.
- Innovative dual compensation technology
- High-strength cast aluminum housing design: Anti-vibration and anti-shock, long-term stability ±0.1%/3 years
- Process connection options: Thread, flat diaphragm flange, cylinder flange, with capillary, etc., suitable for different working conditions.
- Variety choices for diaphragm and filled oil for different mediums.
Applications
- Hazardous area
- Sanitary liquids
- Differential pressure of gases, steams
- Fuel, heavy oil
- Petroleum and Chemicals
- HVAC
Advantages
- Accuracy: ±0.075%F.S.
- Explosion proof: Exd II CT6 Gb, Exia II CT6 Ga.
- Support HART, FF, Profibus PA, Profibus DP protocol.
- Adjustable range and zero point: Large flexibility, accuracy guaranteed.
- Capable in various medias and conditions.
- Measure Gauge or Absolute
This silicon pressure transmitter with 4-20ma output/HART, the central sensing unit adopts the world's leading high-precision silicon pressure sensor technology and packaging process. The monocrystalline pressure transmitter for level monitoring is widely used in industrial process.
Resources
Datasheet
| File Name | Time | Type | Download |
|---|---|---|---|
| PWP3051P Intelligent Monocrystalline Silicon Pressure Transmitter | Sep 25, 2025 |
Technical Parameters
| Model | PWP3051P |
| Measuring Medium | Liquid, gas, steam |
| Pressure Type | Gauge, absolute |
| Accuracy | ±0.05%FS, ±0.075%FS, ±0.1%FS |
| Stability | ±0.1%/3 years |
| IP Rating | IP67 |
| Display | LCD, OLED |
| Signal Output | 4-20mA/HART |
| Power Supply | 12-36VDC |
| Medium Temperature | -40℃ ~120℃ |
| Ambient Temperature | -40℃ ~85℃ |
| Diaphragm Material | 316L, Hastelloy C, Tantalum, Monel, Titanium, Nickel |
| Filling Fluid | Silicone oil, fluorine oil, high-temperature silicone oil, etc. |
| Process Connection Material | SUS304, 316L |
| Explosion Proof | Exd Ⅱ CT6, Exia Ⅱ CT4, Exia Ⅱ CT6 |
| Mounting Bracket | Optional |
| Manifolds | Available |
