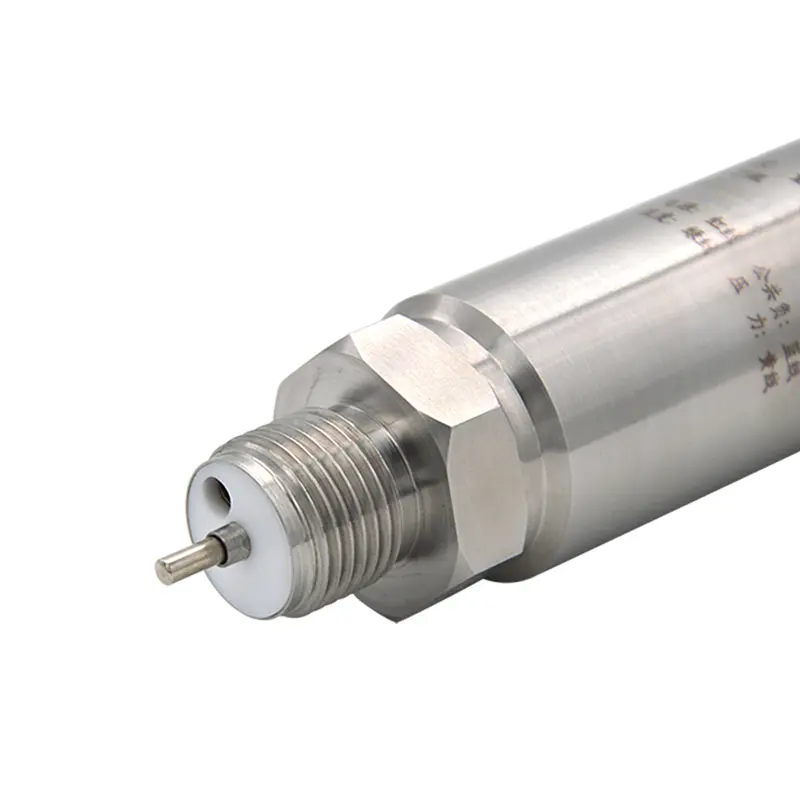

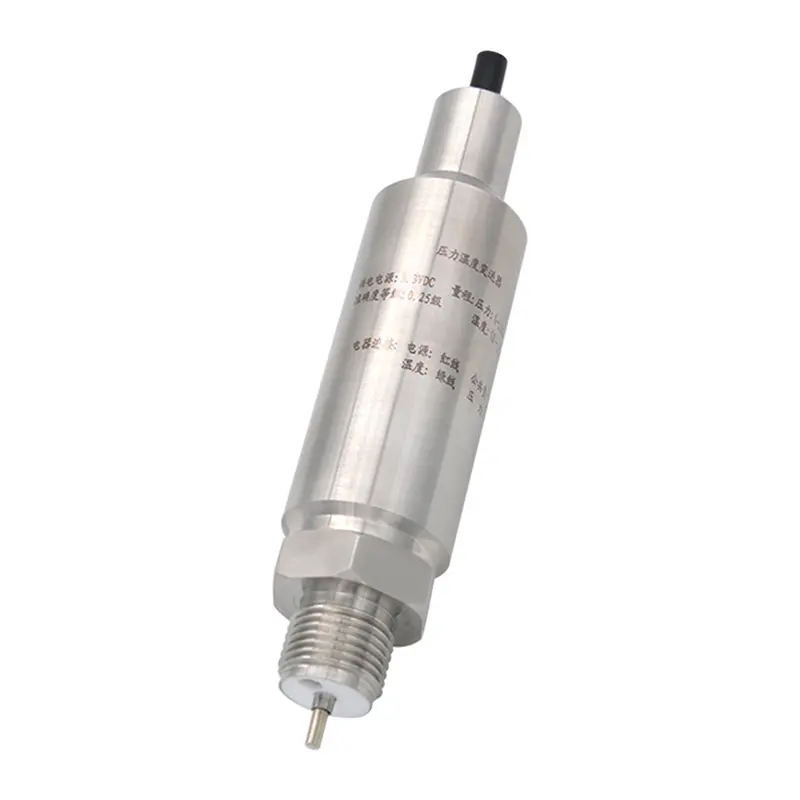

PWP350-PT Dual Pressure&Temperature Transducer
Features
- Dual pressure and temperature output
- Equipped with 3 intelligent protection: Over-voltage, over-current and polarity protection.
- With a fully welded stainless steel housing
- Pressure range -100KPa～0kPa～10kPa …100MPa
- Temperature range -20℃～100℃
Applications
- Power station
- Coal & mine
- Chemical industry
- Petroleum
- Agriculture, hydrology
- Shipbuilding, metallurgy
- Industrial process control
Advantages
- High stability, low drift
- Full sealed high stability impact design
- Variety choices for outputs, electrical connector and pressure port
- High measurement accuracy, fast response speed, stable output and reliable performance.
Dual combined pressure and temperature sensor adopts high-reliability silicon piezoresistive pressure sensor and PT100 temperature sensor, realize dual output temperature and pressure transducer for media temperature at -20℃~+100℃.
Resources
Technical Parameters
| Model | PWP350-PT |
| Pressure Type | Relative (gauge) /Absolute pressure/Sealed gauge pressure |
| Pressure Range | -0.1MPa ... 0kPa~10kPa …100MPa |
| Temperature range | -20℃~+100℃(can be customized) |
| Accuracy | Pressure: ±0.5%FS(Typical), ±0.25%FS Temperature: ±1.0℃(Typical), ±0.5℃ |
| Safe Overload | ≤200%FS(<10MPa); ≤150%FS(≥10MPa) |
| Electrical Connection &IP Rating | Directly outlet cable... IP67 DIN43650 Hirschmann Connector... IP65 |
| Signal Output | Dual 4-20mA, Dual 0-5V/0-10V, RS485 Modbus |
| Power Supply | 12-30VDC/8-24VDC/5-30VDC |
| Response Time | ≤3ms (10%~90%) |
| Housing Material | SUS304 |
| Repeatability (%FS) | ±0.1%FS/±0.05%FS |
| Process Connection | M20x1.5 male, G1/2" male, M30x1.5 male |
| Compensation Temp. | 0℃~+50℃(≤200kPa), -10℃~+60℃(>200kPa) |
| Explosion Proof | Exia II CT6 (optional) |
