Chemical industry is a vast industry that incorporates all different types of product producing industries whose generation is based on heavy use of chemicals. The chemical industry creates an immense variety of products which impinge on virtually every aspect of our lives. While the Chemical Industry is faced with many challenges. Some of these challenges arise due to the hazardous nature of the chemicals that are being used. Hazardous chemicals must be handled carefully and disposed of in a particular way to ensure that they do not cause damage to the environment or to people. Pokcenser provides pressure, level, flow and temperature measuring instruments for the chemical industry, ensuring process safety, reliability and easy maintenance.
Sales contact
Pokcenser Automation Technology Co., Ltd
Mobile: +86 181 7515 5326
Email: info@pokcenser.com
Tel: +86-731-8229 9492

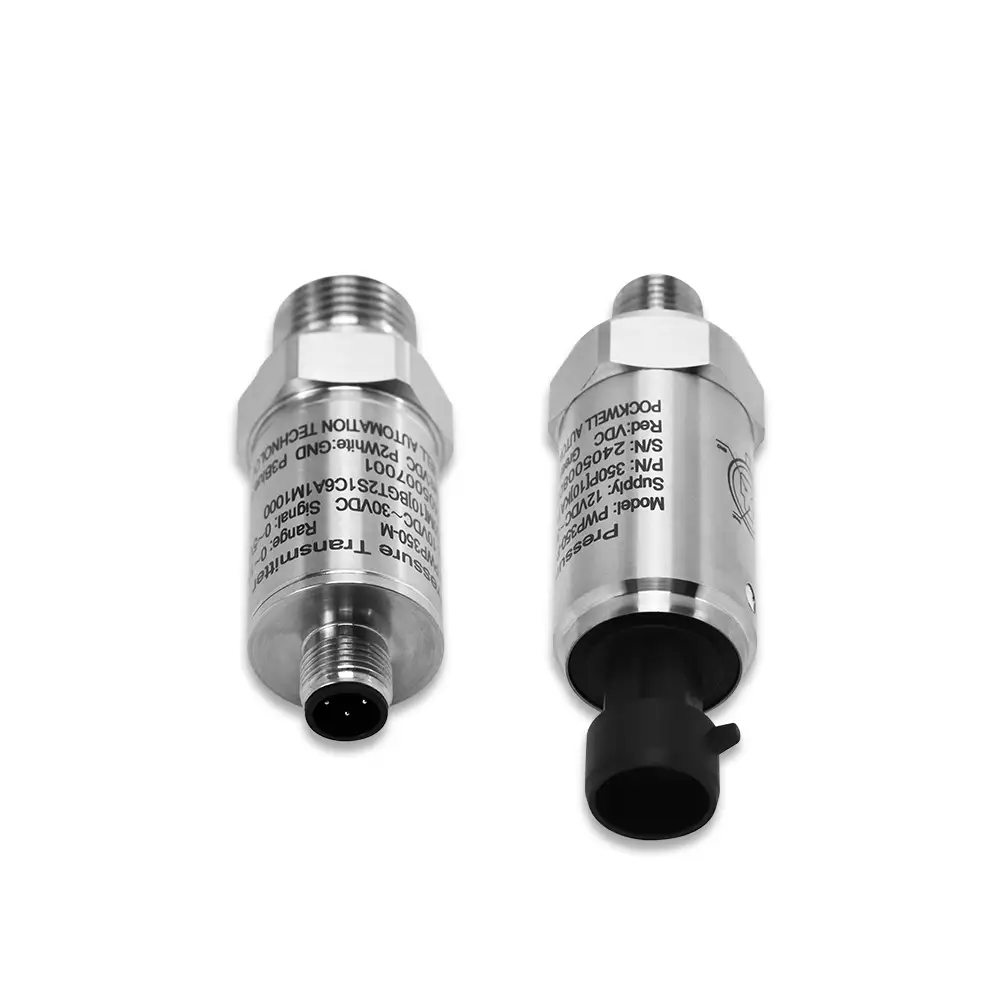

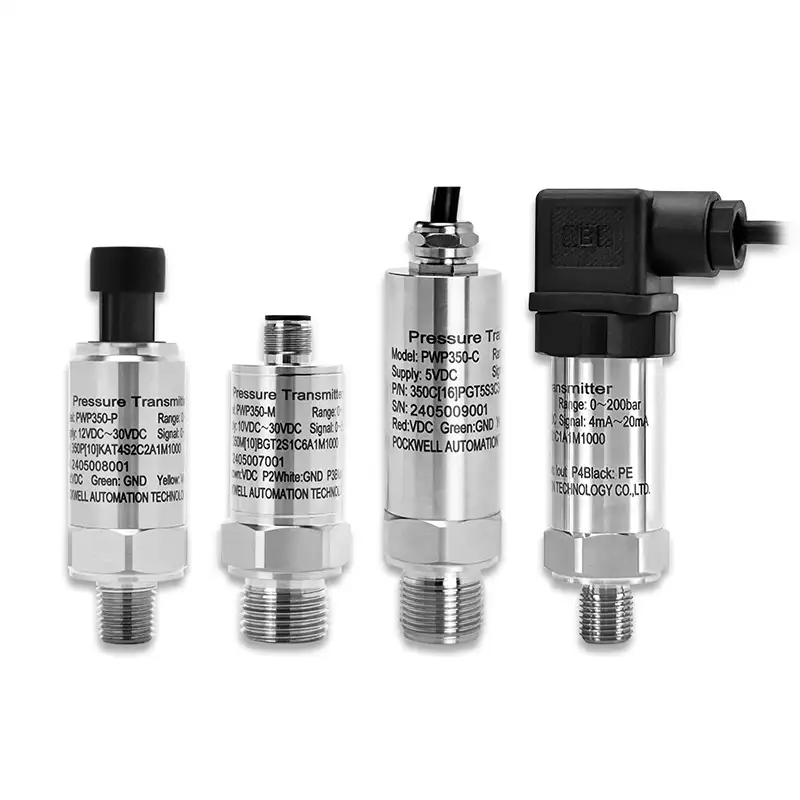

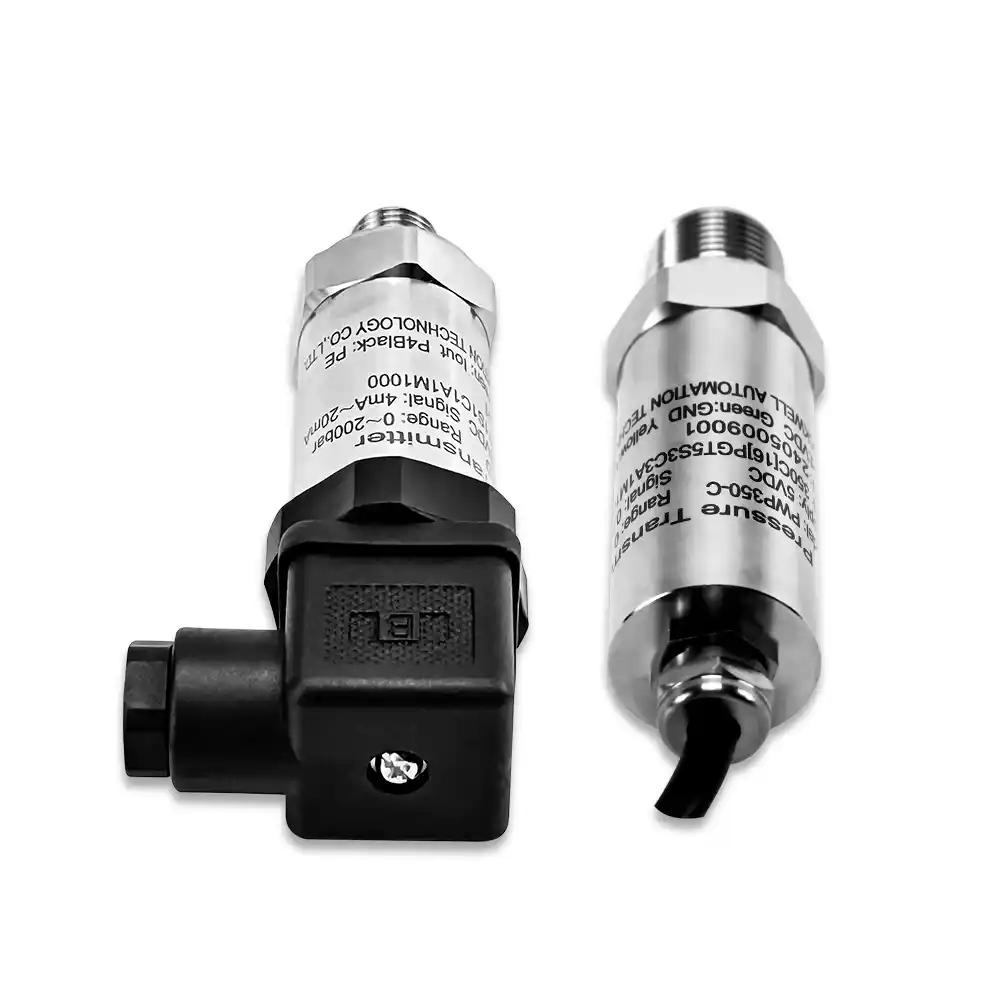

PWP350 Universal Industrial Pressure Sensor
Features
- High accuracy: 0.5%F.S., 0.25%F.S. and 0.1%F.S.
- SUS304 housing and 316L diaphragm: Robust, anti-corrosion
- 3ms fast response
- Large measuring range: Max 100MPa
- PVE plastic material connector: Flame retardant, pressure resistant, anti-corrosive
- Signal output choices: 4~20mA, 0~5VDC, 0~10VDC, I2C, RS485
Applications
- Water treatment
- Coal & mine
- Chemical industry
- Petroleum
- Pumps and compressors
- Agricultural irrigation
- Shipbuilding
Advantages
- Suits almost all industrial applications
- Strongly compatible with air, oil, hydraulic and water pressure
- Equipped with 3 intelligent protection
- High stability, low drift
- Variety choices for structure, outputs, electrical connectors and pressure ports.
The industrial pressure sensor applies imported high quality piezoresistive pressure sensor chip with a fully welded stainless steel housing. Equipped with 3 intelligent protection: Over-voltage, over-current and reverse wiring protection. Strongly compatible with air, oil, hydraulic and water pressure. A perfect air pressure transducer for industrial applications.
Resources
Technical Parameters
| Model | PWP350 |
| Pressure Type | Relative (gauge) /Absolute pressure/Sealed gauge pressure |
| Pressure Range | -0.1MPa ... 0kPa~10kPa …100MPa |
| Safe Overload | ≤200%FS(<10MPa); ≤150%FS(≥10MPa) |
| Burst Pressure | 300%FS |
| Electrical Connection & IP Rating | DIN43650 Hirschmann Connector... IP65 Packard Connector... IP65 Directly outlet cable... IP67 M12*4pins connector... IP67 |
| Accuracy | ±0.5%FS, ±0.25%FS, ±0.1%FS optional |
| Signal Output | 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I²C, RS485 |
| Power Supply | 3.3/5VDC, 5-30VDC, 5VDC, 8-24VDC, 12-30VDC |
| Response Time | ≤3ms (10%~90%) |
| Long-term Stability (%FS/year) | ≤0.5 for 0.5%FS accuracy |
| Compensation Temp. | 0℃~+50℃(≤200kPa), -10℃~+70℃(>200kPa) |
| Working Temp. | -40℃~+85℃ |
| Storage Temp. | -40℃~+85℃ |
| Explosion Proof | Exia II CT6 optional |
| Pressure Connect Port | M20x1.5 male, G1/4” male, 1/4”NPT male, 1/8”NPT male, G1/2”male, 1/2” NPT, male and female optional |
