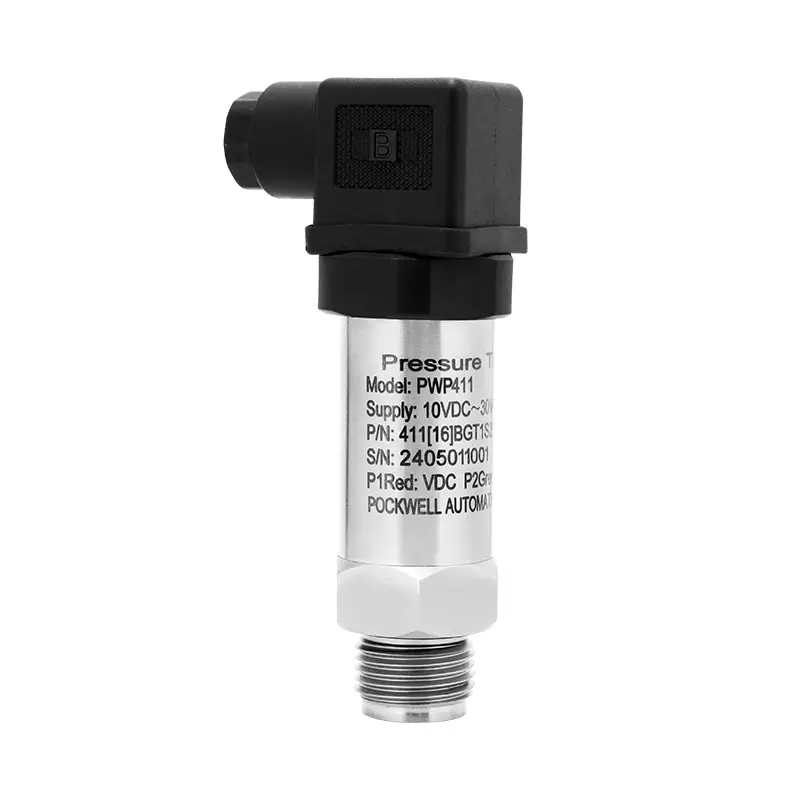

PWP411 Sanitary Pressure Sensor with Flush Diaphragm

Features

Flush design prevents clogging
Sanitary or Clean-in Place applications
Wide temperature range -40...+150℃
Measuring range up to 7MPa(Customizable)
Process connection in high-end stainless steel G1/2” or Tri-clamp 1-1/2”

PWP411 Sanitary Pressure Sensor with Flush Diaphragm

Applications

Food, dairy and beverage processing
Filling and packing machinery
Cleaning systems
Hydraulic fluids
Waste water treatment
Level measurement
Dosing of glues, adhesives, foams and other viscous media

Request Price PDF Download

Advantages

Food graded
Capable in high temperature application
Free of dead space and easy to clean
Media changeable

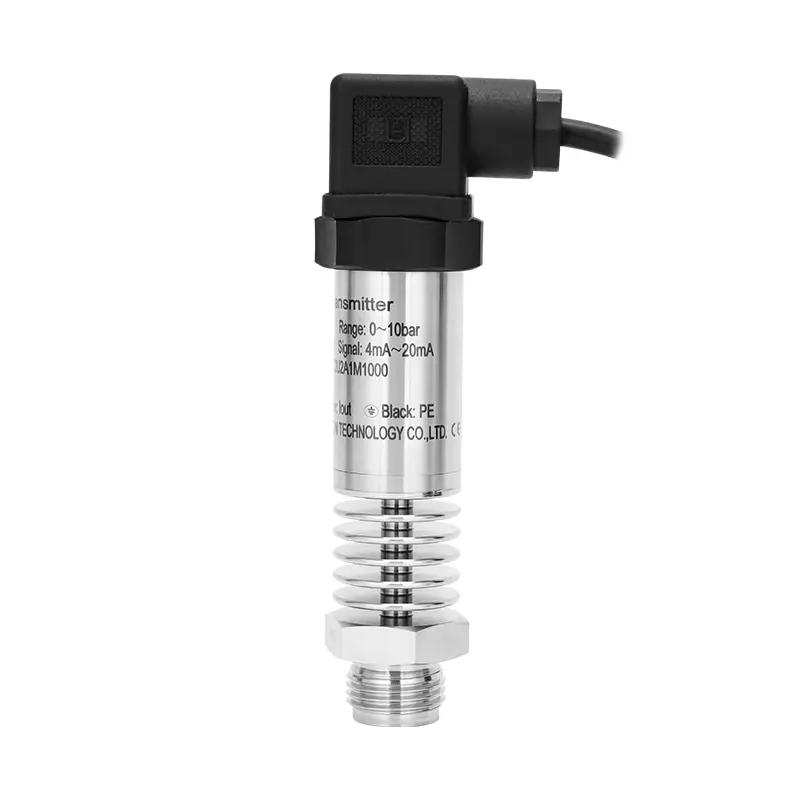

This food grade pressure sensor is a flush diaphragm type pressure transmitter. With an integrated cooling element it can work in high medium temperatures up to 150℃. Low-maintenance and trouble-free hygienic pressure level transmitter is thus also guaranteed in critical applications with frequently changing media.

Resources

Datasheet

File Name	Time	Type	Download
PWP411 Sanitary Pressure Sensor with Flush Diaphragm	Sep 25, 2025	PDF

Technical Parameters

Model	PWP411
Pressure Type	Relative (gauge) /Absolute pressure/Sealed gauge pressure
Pressure Range	-0.1MPa ... 0kPa~10kPa …7MPa
Safe Overload	≤200%FS
Electrical Connection	DIN43650 Hirschmann Connector/M12*4pins/Directly outlet cable
Accuracy	±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional
Signal Output	4-20mA/0.5-4.5V/0-5V/0-10V/I2C/RS485
Power Supply	3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC/15-30VDC
Response Time	≤3ms
Long-term Stability (%FS/year)	≤0.5 for 0.5%FS accuracy
Compensation Temp.	0℃~+50℃(≤200kPa), -10℃~+60℃(>200kPa)
Working Temp.	-20℃~+85℃(Typical); -20℃~+150℃(With cooling element)
Storage Temp.	-40℃~+85℃
IP Rating	IP65/IP67
Process Connection	G1/2” male, G1” male, M20 x 1.5 male
