Radar Level Sensor

Pokcenser provides full range of high accuracy radar level sensor which apply Frequency Modulated Continuous Wave (FMCW), which has a higher operating frequency and a shorter wavelength, particularly suitable for not only liquid but also solid applications. Despite 80GHz technology for unbeatable level accuracy, they can conquer the most harsh conditions like high temperature up to 300℃, pressurized tanks, powder and dust environment silos, corrosive chemical solvents, long measuring range of 120 meters, etc. IP67/IP68 protection grade, and narrowest 3°antenna beam angle, makes it less impact from interference in the installation environment. No matter radar level sensor for liquids, or radar level sensor for solids, we get one for you!

Sales contact

Pokcenser Automation Technology Co., Ltd

Mobile: +86 181 7515 5326

Email: info@pokcenser.com

Tel: +86-731-8229 9492

Get A Quote

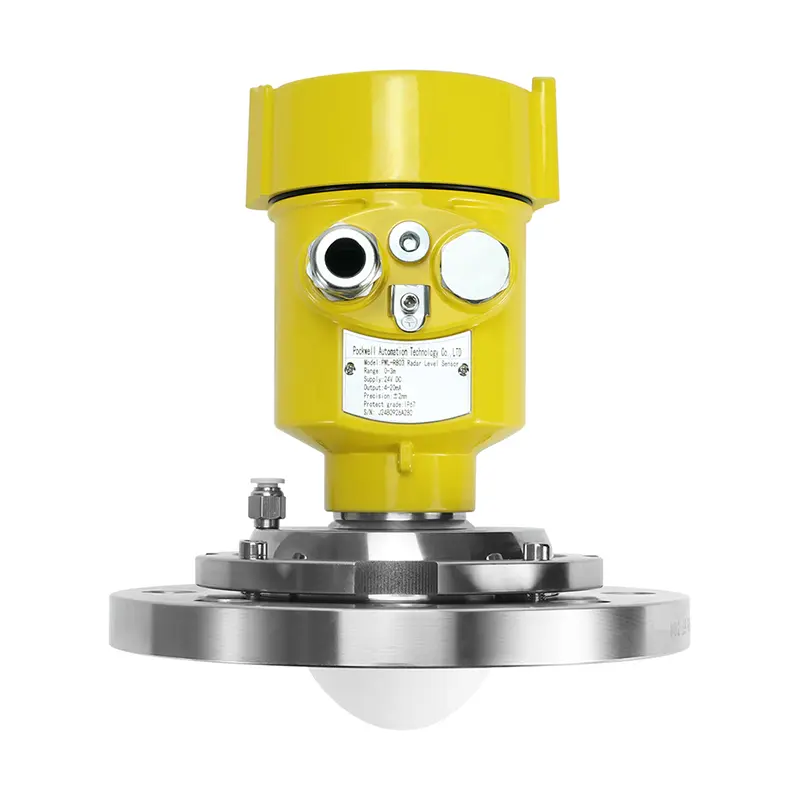

PWL-R803 Solids Radar Level Sensor

Features

76-81GHz FMCW radar
IP67 protection level
Support HART, RS485 Modbus RTU protocol
Accuracy ±1mm/±5mm/±10mm
Cast aluminum and SUS304 enclosure optional
Large lens antenna with universal flange blowing function

Applications

Strong dust and powder environment
Cement silos
Grain barn and silos
Plastic pellets tanks
Fish flour powder tolvin

Request Price PDF Download

Advantages

Suitable for dust and powder application.
Millimeter wave RF chip, higher signal-to-noise ratio, smaller blind area
5GHz working frequency bandwidth, higher resolution and precision
Narrowest 3°antenna beam angle, less impact from interference in the installation environment, and more convenient for installation
Optional intrinsically safe and explosion-proof, safe and reliable

A stable and high accuracy non contact radar level sensor for grain storage as well as radar level sensor for powder materials with universal flange and air blowing function, a robust and perfect choice for cement silo level sensor and grain bin level sensor.

Resources

Datasheet

File Name	Time	Type	Download
PWL-R803 Solids Radar Level Sensor	Apr 13, 2026	PDF

Technical Parameters

Model	PWL-R803
Application	Strong dust, solids, powder, block
Measuring Range	0.08 ~35m (For liquids) 0.3 ~60m (For solids) 0.6 ~ 120m (For solids and liquids)
Blind Zone	0.25-1.2m (According to the range)
Accuracy	±1mm for range ≤ 10m ±5mm for range 11~30m ±10mm for range >30m
Signal Output	4-20mA/RS485/HART
Power Supply	12~24VDC

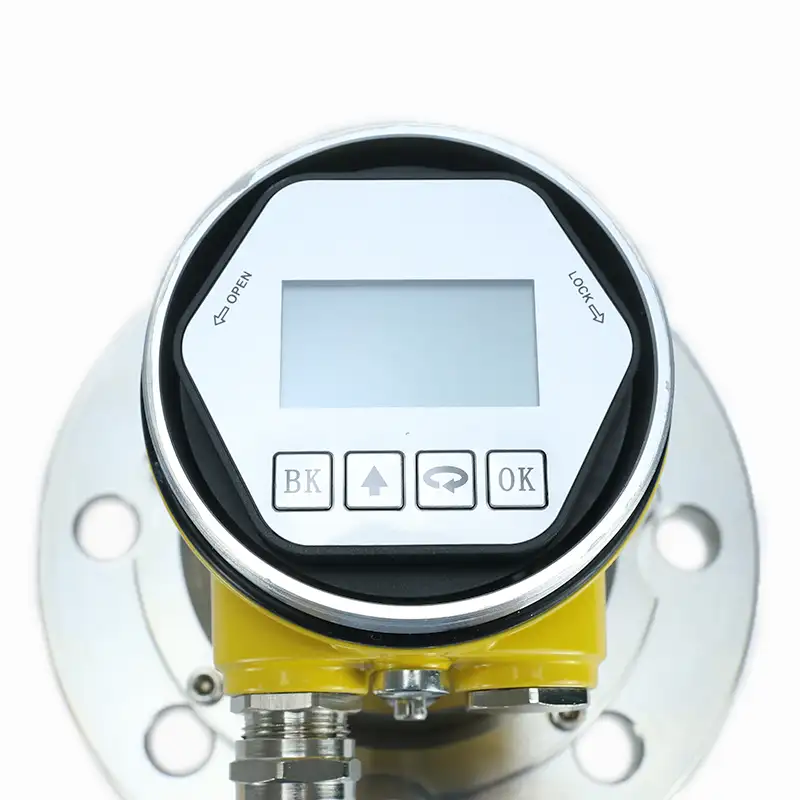

Display	With
Beam Angle	3°
Working Temp.	-30~100℃
Working Pressure	-0.1 ~ 0.1MPa
Antenna Type	Large lens antenna
Protection Level	IP67
Enclosure	Aluminum alloy, stainless steel
Housing Material	SUS304
Antenna Material	PTFE

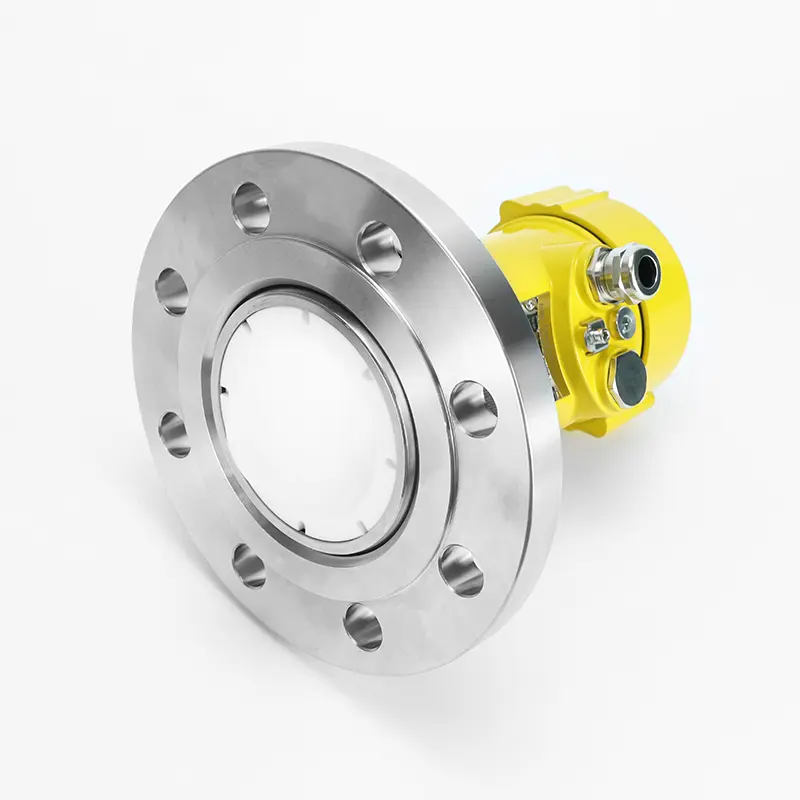

Installation Method	Universal flange
Explosion-proof	ExibIIC T6 Gb
