PWP412-F Submersible Fuel Level Sensor

Features

  • High accuracy of ±0.5%FS, ±0.25%FS, ±0.1%FS
  • ATEX, intrinsically safe explosion-proof
  • Level&Temperature integral measurement
  • IP68 water-proof

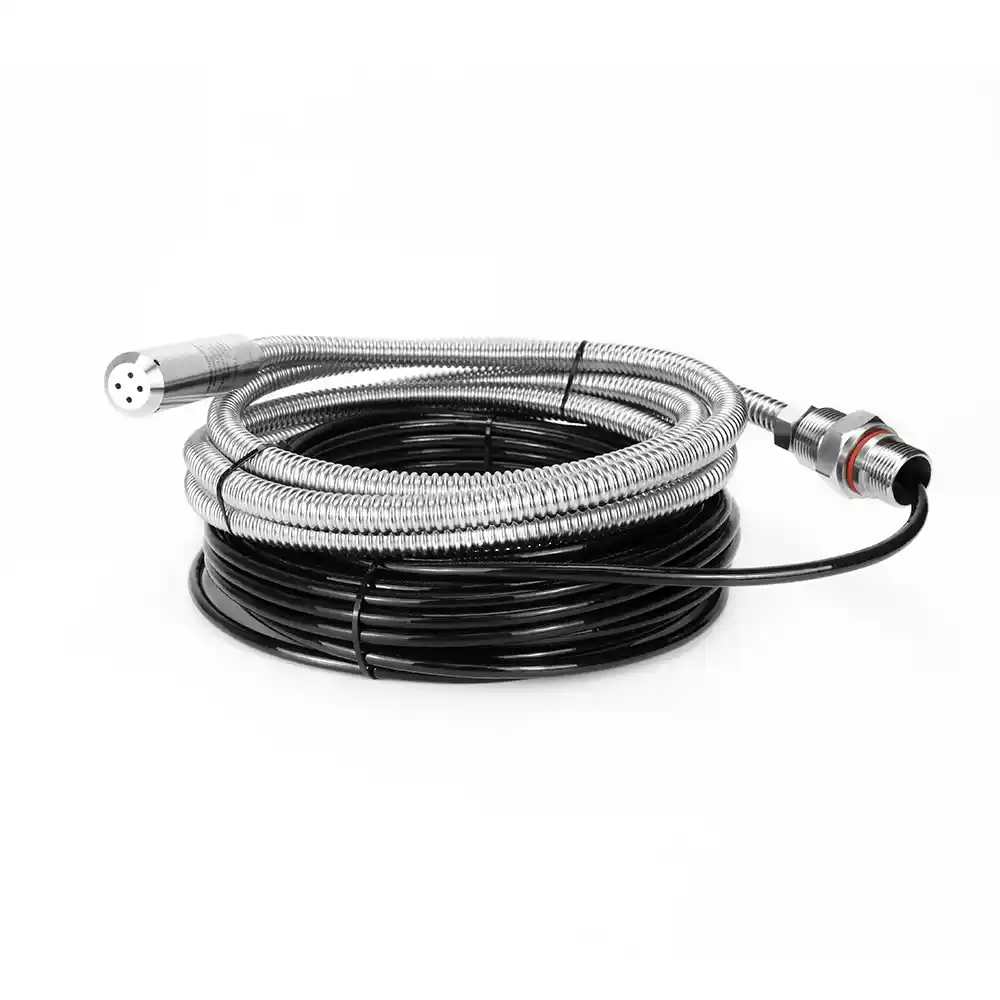

  • Polyurethane cable for diesel, PUR cable covered by corrugated SUS304 tube for gasoline

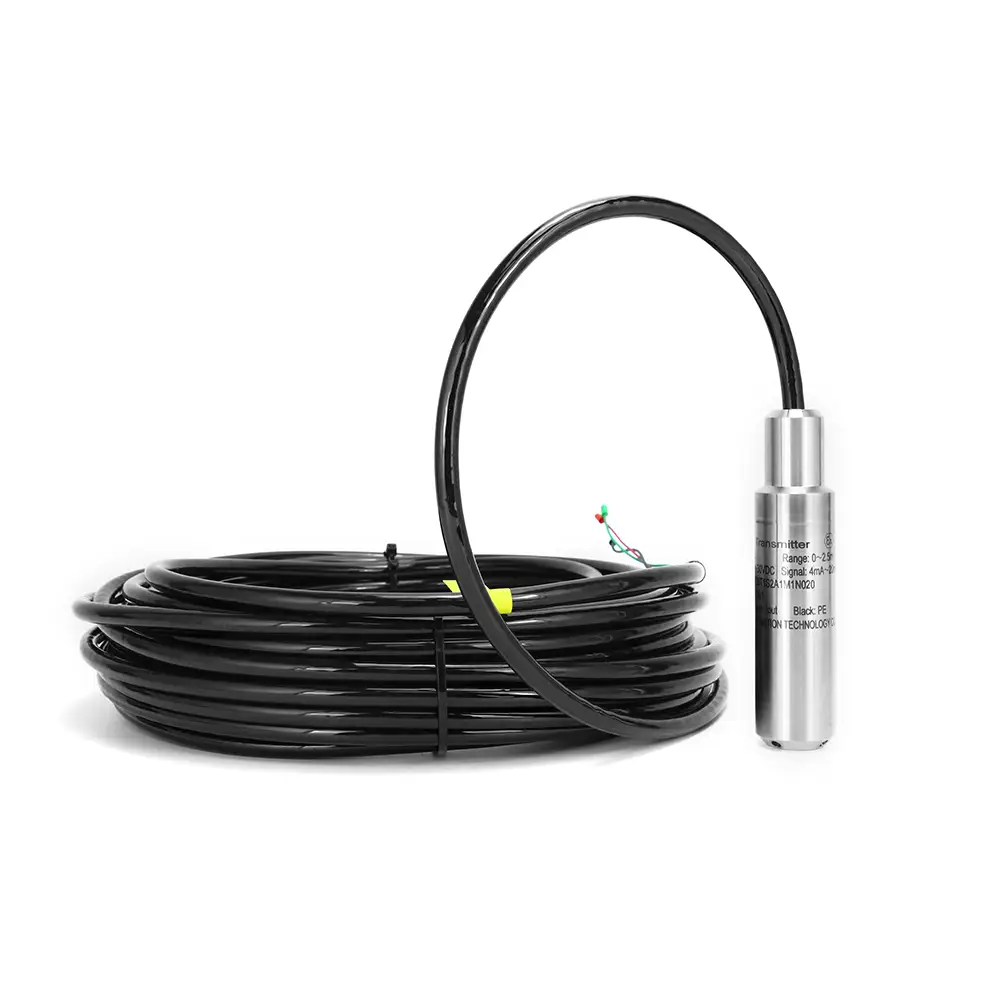

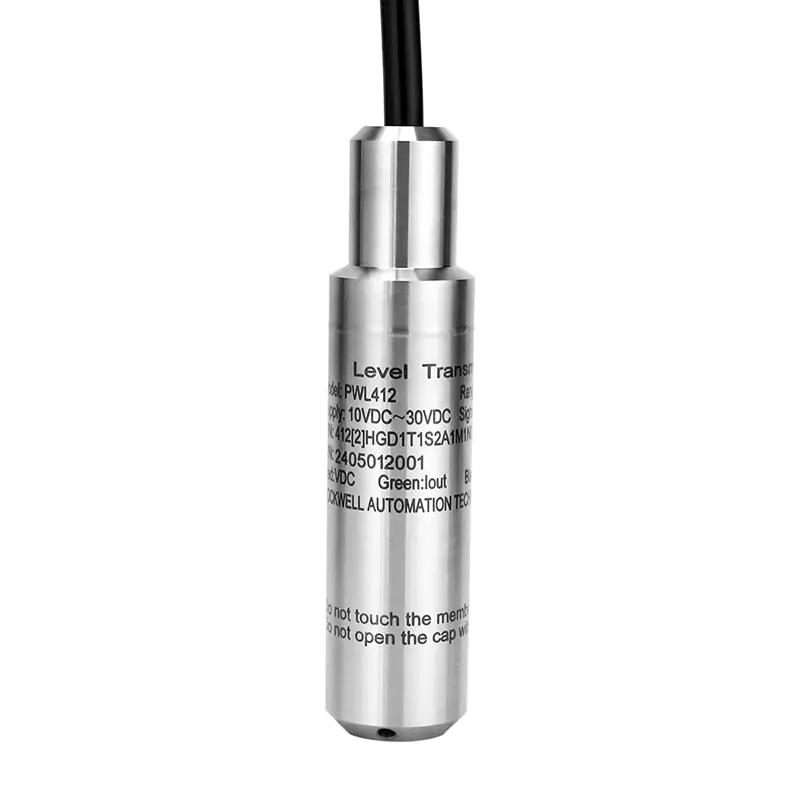

PWP412-F Submersible Fuel Level Sensor
PWP412-F Submersible Fuel Level Sensor
PWP412-F Submersible Fuel Level Sensor
PWP412-F Submersible Fuel Level Sensor

Applications

  • Monitoring of diesel & gasoline fuel storage tanks
  • Chemical and Petrochemical industry
  • Level measurement in fuel trucks
  • Fuel reservoir
  • Liquids measurement in tanks and vessels
  • Level measurement in oil tanks
  • Calibration instrument
Request Price PDF Download

Advantages

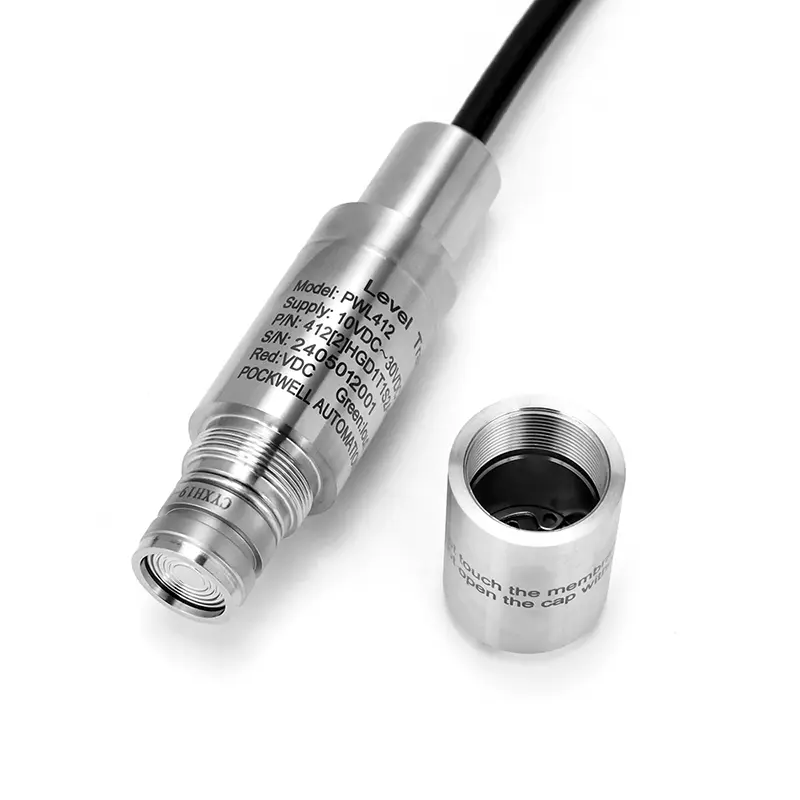

  • Unique filter design in the nose cap for accurate measurement from impurity and particles
  • Reliable, precise measurement, long-term stability
  • Cost-effective way for product and shipping freight
  • Eliminate both power supply surges and lightning ground strike transients with incorporated lightning and surge protection
  • CE, and ATEX approved

Submersible Fuel Level Sensor is a low-cost liquid level sensor for fuel tanks. It uses a high-performance diffused silicon piozoresistive pressure sensor as sensing element, accurately measure the static pressure of the liquid that is proportional to the liquid level depth. It can be integral with a temperature sensor for both continuous level and temperature measurement for fuel tanks.

Resources

Datasheet

File NameTimeTypeDownload
PWP412-F Submersible Fuel Level SensorSep 24, 2025PDF

Technical Parameters

ModelPWP412-F
Pressure Level Range0m~0.5m...30m Fuel/0-0.05 bar...3bar
Electrical ConnectionDirectly cable outlet
Accuracy±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional
Signal Output4-20mA/0.4-4.5V/0-5V/0-10V/I2C/RS485/HART
Power Supply3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC/15-30VDC
Response Time≤3ms
Medium CompatibleLiquid compatible with SUS304
Long-term Stability≤0.5%FS/year (for 0.5%FS accuracy)
Zero Temp. Drift≤0.05%FS/℃(for 0.5%FS accuracy)
Compensation Temp.0℃~+50℃(typical), -10℃~+60℃(optional)
Working Temp.Media -30℃~+65℃, environmental -40℃~+70℃
Storage Temp.-40℃~+70℃
Explosion ProofExia II CT6
IP RatingIP68
Cable MaterialPU, PTFE or FEP
