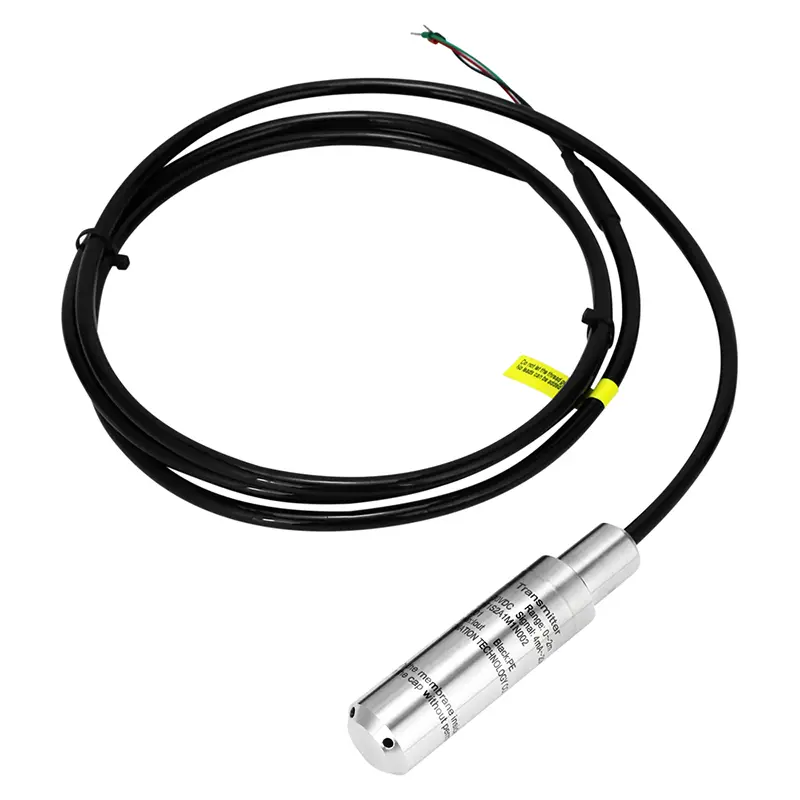

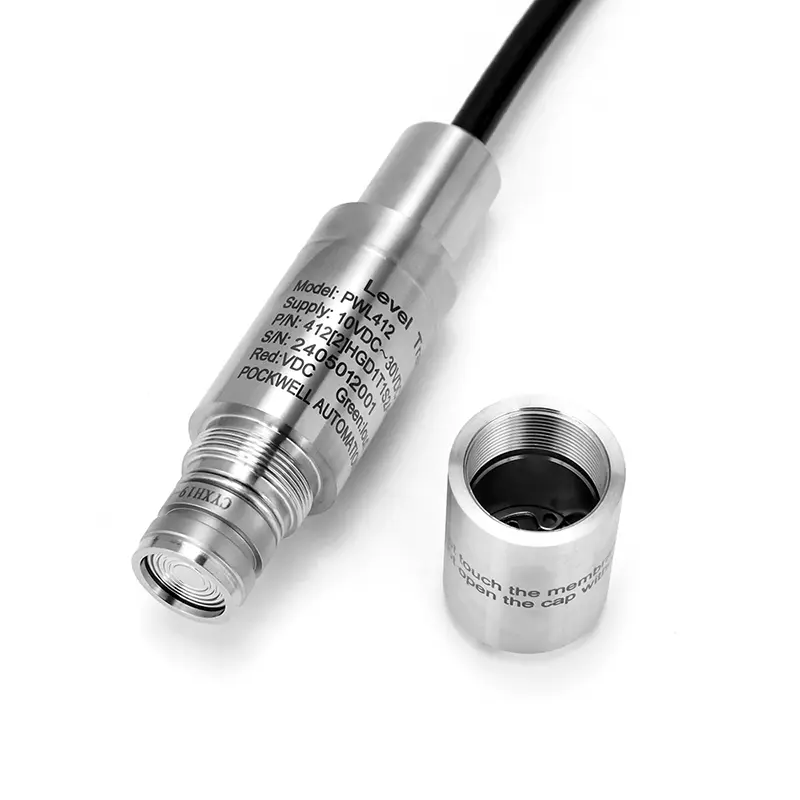

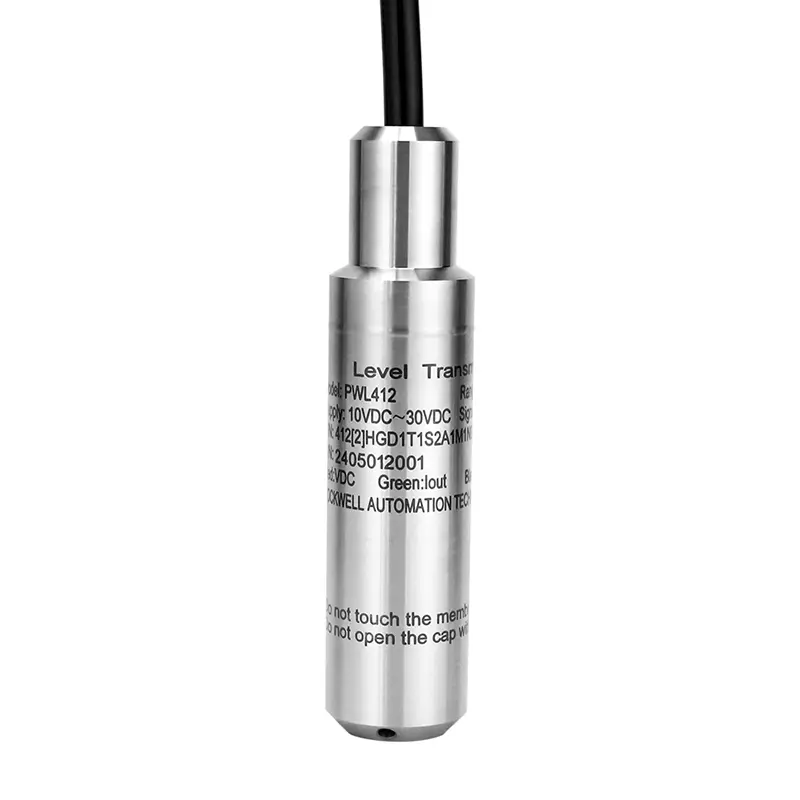

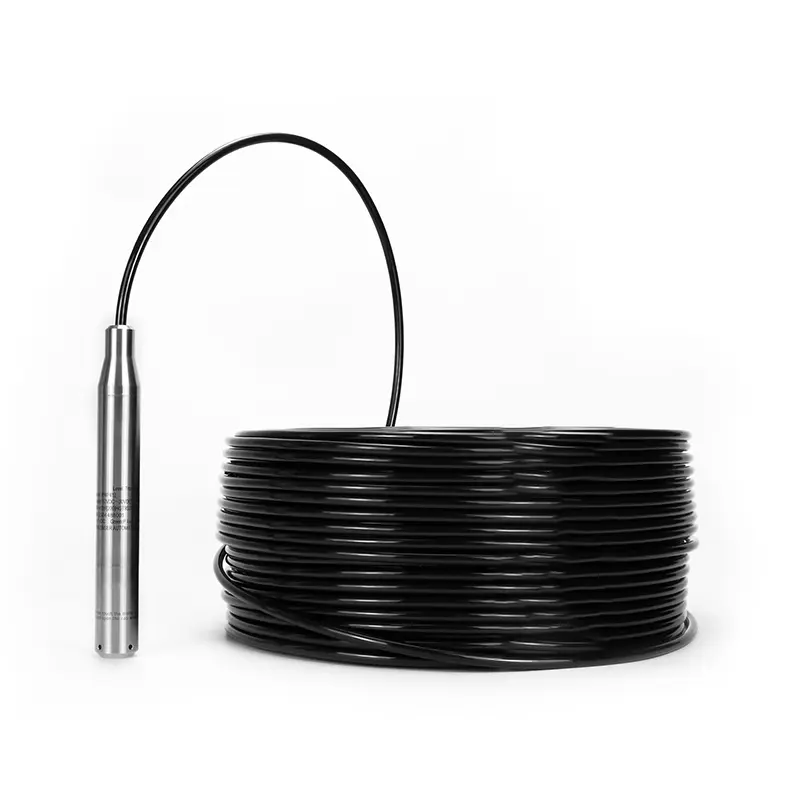

PWP412-W Submersible Water Level Transmitter
Features
- ±0.5%, ±0.25%, ±0.1% Accuracy
- Measuring range 0-1000m
- Built-in lightning protection and anti-interference module, to be used outdoors for harsh environment
- Customizable diaphragm, body and cable, suitable for seawater and other corrosive liquids
- IP68 water-proof
Applications
- Surface water monitoring
- Deep well and ground water monitoring
- Liquids measurement in tanks and vessels
- Environmental monitoring applications
- Remote flood monitoring
- Pressure switch and hydraulic system
- Irrigation equipment
Advantages
- Reliable, precise measurement, long-term stability
- Eliminates particulate or water droplets from entering the transducer using maintenance-free filter
- Insensitive to foam and viscosity
- Constructed for years of trouble free service with welded 316 SS body and 316 SS nose cap
- Eliminate both power supply surges and lightning ground strike transients with incorporated lightning and surge protection
Submersible Pressure Level Transmitters are high performance hydrostatic pressure level sensors that measure hydrostatic pressure for level and depth in water and seawater. It adopts an imported high-quality piezoresistive sensor, robust 316L stainless steel housing and air vented tube cable with maintenance-free filter, making it a reliable and cost-effective solution for a wide of industrial level measurement applications.
Resources
Technical Parameters
| Model | PWP412-W |
| Pressure Level Range | 0m~0.5m...300m H2O/0-0.05 bar...30bar Max 1000m H2O |
| Electrical Connection | Directly cable outlet |
| Accuracy | ±0.5%FS(Typical), ±0.25%FS, ±0.1%FS optional |
| Signal Output | 4-20mA/0.4-4.5V/0-5V/0-10V/I2C/RS485/HART |
| Power Supply | 3.3VDC/5VDC/8-24VDC/10-30VDC/12-30VDC/15-30VDC |
| Response Time | ≤3ms |
| Medium Compatible | Liquid compatible with SS316L |
| Long-term Stability | ≤0.5%FS/year (for 0.5%FS accuracy) |
| Zero Temp. Drift | ≤0.05%FS/℃(for 0.5%FS accuracy) |
| Compensation Temp. | 0℃~+50℃(typical), -10℃~+60℃(optional) |
| Working Temp. | Media -30℃~+65℃, environmental -40℃~+70℃ |
| Storage Temp. | -40℃~+70℃ |
| IP Rating | IP68 |
| Cable Material | PE, PU or FEP |
