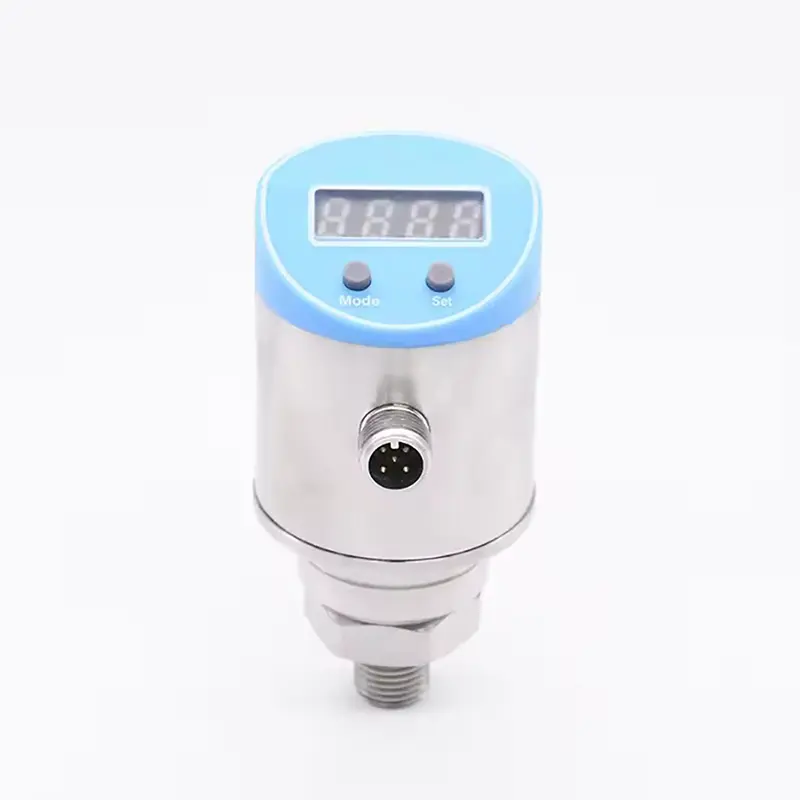

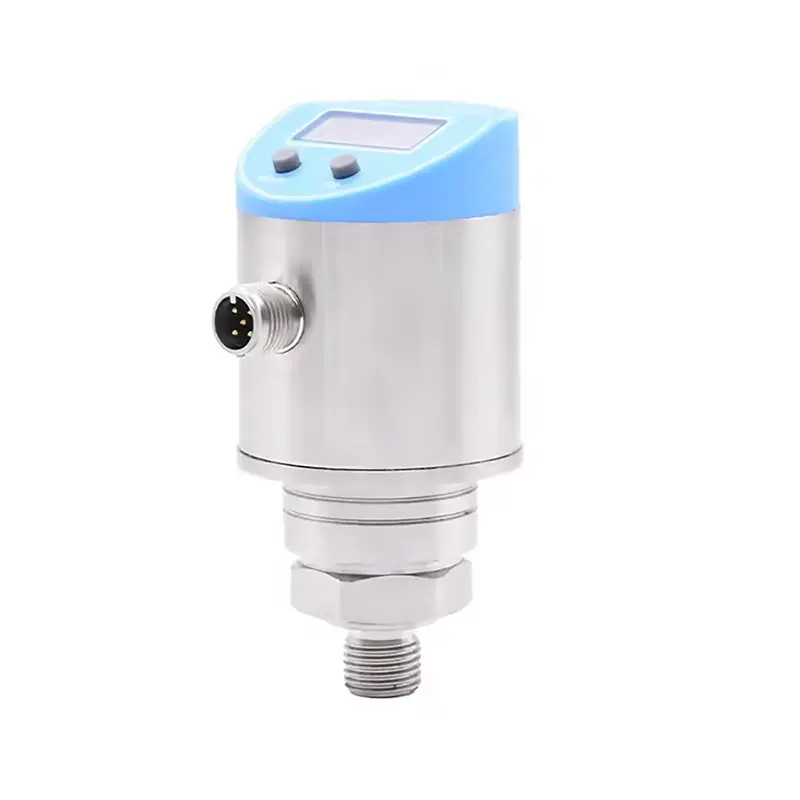

PWP70 Digital Pressure Switch

Features

  • Accuracy: ±0.1%FS, ±0.25%FS, ±0.5%FS
  • 150% safe overload
  • Indicator: 4 bits LED display
  • Operation method: Can rotate 0~350°
  • Output: Switch + Current( 2xPNP/NPN+4mA~20mA)
  • Optional diaphragm materials for different medias

Applications

  • Coal & Mine
  • Environmental protection
  • Chemical industry
  • Oil & Gas
  • Hydraulic pressure control
  • Pharmaceutical, medical
  • Water services

Advantages

  • High stability and reliability
  • Output high and low level
  • Regulation without dead zone
  • Side display and indicator is intuitive
  • Size is small, button operation
  • Switching point adjustable over the full range

The compact digital pressure switch with led is an intelligent pressure switch that integrates pressure measurement, display and control. The digital pressure switch with analog output 4-20mA has the advantages of wide measurement range, good stability, anti-interference, etc. This digital pressure switch with pnp output can rotate 0-350°.

Resources

Datasheet

File NameTimeTypeDownload
PWP70 Digital Pressure SwitchSep 25, 2025PDF

Technical Parameters

ModelPWP70
Pressure TypeRelative (gauge) /Absolute pressure
Pressure Range-0.1MPa...0kPa~10kPa …40MPa
Accuracy±0.5%FS, ±0.25%FS, ±0.1%FS
Safe Overload≤1.5 times
IP RatingIP66
Display4 bits LED display
Signal OutputSwitch + Current ( 2xPNP/NPN+4mA~20mA)
Power Supply24VDC
Electrical ConnectionM12-5pins / GX12-5pins Connector
Pressure PortM22x1.5, M18x1.5, M14x1.5, M10x1.0
Display Operation MethodCan rotate 0~350°
Material of Diaphragm316L, Titanium, Hastelloy, Tantalum Diaphragm
Compensation Temperature0℃~+50℃(≤200kPa), -10℃~70℃(>200kPa)
Medium Temperature-40℃~85℃
Storage Temp.-40℃~+85℃
