Radar Level Sensor vs Ultrasonic Level Sensor: Which Is the Better Choice for Industrial Level Measurement?

When selecting a non-contact level measurement solution, engineers and procurement managers often face a common question:

Should I choose a Radar Level Sensor or an Ultrasonic Level Sensor?

Both technologies are widely used in industrial applications such as water treatment, chemical storage, fuel tanks, grain silos, and wastewater monitoring. However, their performance can vary significantly depending on environmental conditions, measurement range, and process requirements.

Choosing the wrong technology may result in inaccurate readings, increased maintenance costs, process downtime, and unnecessary equipment replacement.

In this guide, Pokcenser compares Radar Level Sensors and Ultrasonic Level Sensors in detail, helping you determine which solution is best suited for your application.

What Is a Radar Level Sensor?

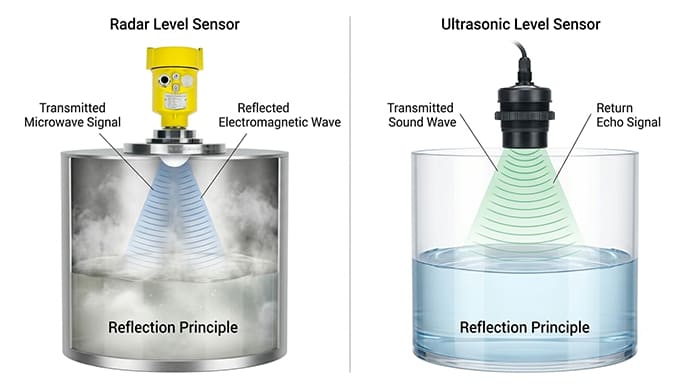

A Radar Level Sensor measures level by transmitting high-frequency microwave signals toward the surface of a liquid or solid material. The sensor receives the reflected signal and calculates the distance based on the time-of-flight principle.

Modern 80GHz FMCW radar technology has become the preferred solution for demanding industrial applications due to its:

• High measurement accuracy
• Strong resistance to vapor and dust
• Long measuring range
• Stable performance in harsh environments
• Low maintenance requirements

Radar level sensors are commonly used in:

• Chemical storage tanks
• Fuel tanks
• Pharmaceutical processing
• Food and beverage production
• Cement silos
• Grain storage facilities
• Water resource monitoring

What Is an Ultrasonic Level Sensor?

An Ultrasonic Level Sensor uses sound waves instead of microwaves. The sensor emits ultrasonic pulses toward the material surface and calculates the level by measuring the return time of the echo.

Ultrasonic sensors are popular because they offer:

• Lower initial investment
• Easy installation
• Reliable performance in clean environments
• Simple maintenance

Typical applications include:

• Water tanks
• Wastewater treatment plants
• Reservoirs
• Irrigation systems
• Open channel monitoring
• Lift stations

For many municipal and environmental projects, ultrasonic technology remains a highly cost-effective solution.

Radar Level Sensor vs Ultrasonic Level Sensor: Key Differences

Feature	Radar Level Sensor	Ultrasonic Level Sensor
Measuring Technology	Microwave	Sound Wave
Typical Accuracy	Up to ±1 mm	±0.5% FS
Effect of Temperature	Minimal	Moderate
Effect of Vapor	Very Low	High
Effect of Dust	Very Low	High
Foam Resistance	Excellent	Limited
Pressure Vessel Applications	Suitable	Not Recommended
Long Distance Measurement	Excellent	Moderate
Maintenance Frequency	Very Low	Low
Initial Purchase Cost	Higher	Lower

While ultrasonic sensors offer attractive pricing, radar sensors generally provide better long-term performance and reliability in industrial environments.

How Environmental Conditions Affect Performance

One of the biggest differences between radar and ultrasonic technologies is their response to environmental factors.

Vapor and Steam

In chemical processing plants, food manufacturing facilities, and heated storage tanks, steam and vapor are common.

Because ultrasonic sensors rely on sound waves traveling through air, changes in air density can significantly affect measurement accuracy.

Radar sensors use electromagnetic waves and are largely unaffected by vapor, making them the preferred choice for these environments.

Dust and Powder

Applications such as:

• Cement silos
• Fly ash storage
• Grain silos
• Plastic pellet storage

often generate large amounts of dust.

Dust can weaken ultrasonic signals and create unstable readings. Radar sensors are far more resistant to dust interference and provide reliable measurements even in challenging bulk solids applications.

Condensation and Foam

Foam and condensation are common in wastewater treatment and chemical storage.

Radar technology generally performs much better under these conditions, reducing false echoes and measurement errors.

Application Comparison: Which Technology Fits Your Industry?

Water and Wastewater Treatment

Recommended Solution: Ultrasonic Level Sensor

For open tanks, reservoirs, sewage systems, and municipal water facilities, ultrasonic sensors offer excellent value.

Advantages include:

• Lower equipment cost
• Easy installation
• Sufficient accuracy for most water applications

Chemical Storage Tanks

Recommended Solution: Radar Level Sensor

Chemical tanks frequently contain:

• Corrosive vapors
• Condensation
• Temperature fluctuations

Radar sensors maintain stable performance despite these challenges.

Oil and Fuel Storage

Recommended Solution: Radar Level Sensor

Fuel storage tanks often experience:

• Vapor accumulation
• Pressure variations
• Condensation

Radar technology provides greater reliability and accuracy over time.

Grain and Cement Silos

Recommended Solution: Radar Level Sensor

Dust and uneven material surfaces make radar the preferred technology for bulk solids level measurement.

Rivers, Reservoirs, and Environmental Monitoring

Both technologies can be effective.

Choose:

• Ultrasonic sensors for budget-sensitive projects
• Radar sensors when maximum accuracy and long-term stability are required

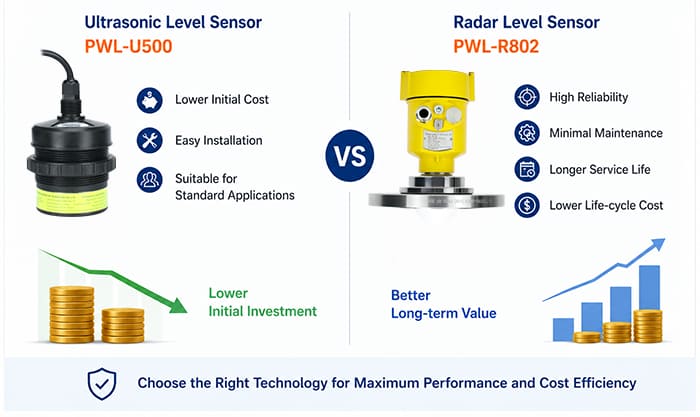

Radar vs Ultrasonic Level Sensor Cost Comparison

Many buyers focus only on the purchase price, but evaluating the Total Cost of Ownership (TCO) provides a more accurate comparison.

Ultrasonic Sensor Costs

Advantages:

• Lower initial purchase cost
• Simple setup
• Cost-effective for standard applications

Potential drawbacks:

• More susceptible to environmental interference
• Increased maintenance in difficult conditions
• Potential measurement instability

Radar Sensor Costs

Advantages:

• Minimal maintenance
• Longer service life
• Higher reliability
• Reduced downtime

Potential drawbacks:

• Higher upfront investment

For critical industrial processes, radar sensors often deliver a lower overall lifecycle cost despite the higher initial purchase price.

How to Choose the Right Level Sensor

Before making a purchasing decision, consider the following questions:

Choose an Ultrasonic Level Sensor If:

✓ Your budget is limited

✓ Measuring clean water or wastewater

✓ No significant vapor or dust is present

✓ Tank pressure is atmospheric

✓ Measurement distance is relatively short

Choose a Radar Level Sensor If:

✓ High accuracy is required

✓ Vapor, steam, or condensation exists

✓ Dusty environments are present

✓ Long measurement range is needed

✓ Measuring chemicals, fuels, or bulk solids

✓ Process reliability is critical

Recommended Pokcenser Solutions

Pokcenser Radar Level Sensors

Ideal for:

• Chemical tanks
• Fuel storage
• Bulk solids silos
• High-temperature applications
• Industrial process automation

Key benefits:

• 80GHz FMCW technology
• High accuracy
• Strong anti-interference capability
• Multiple communication options

Pokcenser Ultrasonic Level Sensors

Ideal for:

• Water treatment
• Reservoir monitoring
• Environmental projects
• Irrigation systems

Key benefits:

• Cost-effective
• Easy installation
• Reliable operation
• Low maintenance

Why Choose Pokcenser?

Pokcenser has more than 10 years of experience in industrial process automation and level measurement solutions.

Customers worldwide choose Pokcenser because we provide:

• Factory-direct pricing
• Professional technical support
• OEM and ODM services
• Fast delivery
• CE-compliant products
• Reliable quality control

Whether you need a radar level sensor for a chemical tank or an ultrasonic sensor for a water treatment facility, our engineering team can help you select the most suitable solution.

FAQs

Which is more accurate: radar or ultrasonic?

Radar sensors generally provide higher accuracy. Modern 80GHz radar technology can achieve accuracy as high as ±1 mm.

Can ultrasonic sensors work in steam environments?

Steam can significantly affect ultrasonic measurements. Radar sensors are recommended for these applications.

Are radar level sensors worth the higher price?

For demanding industrial environments, radar sensors often provide lower maintenance costs and greater reliability, resulting in a better long-term return on investment.

Which sensor is best for grain silos?

Radar level sensors are strongly recommended because they are less affected by dust and uneven material surfaces.

Which sensor should I choose for wastewater treatment?

For most wastewater applications, ultrasonic sensors provide excellent performance and value. However, radar may be preferred where foam, condensation, or high accuracy requirements exist.
