Differential pressure transmitters are among the most versatile instruments used in industrial automation. From measuring liquid levels in closed tanks to monitoring filter conditions and calculating flow rates, differential pressure technology plays a critical role in process control across numerous industries.

Whether operating a chemical plant, water treatment facility, food processing line, HVAC system, or oil & gas installation, understanding how differential pressure transmitters work can help improve efficiency, reduce maintenance costs, and increase operational reliability.

In this guide, we’ll explore the most common differential pressure transmitter applications and explain why Pokcenser differential pressure solutions are trusted by industrial users worldwide.

What Is a Differential Pressure Transmitter?

A differential pressure (DP) transmitter measures the difference between two pressure points.

Instead of measuring a single pressure value, the transmitter continuously calculates the pressure difference between:

• High-pressure side (HP)
• Low-pressure side (LP)

The resulting differential pressure can then be used to determine:

• Liquid level
• Flow rate
• Filter condition
• Airflow
• Pump performance

Because of its flexibility, DP technology remains one of the most widely used measurement methods in industrial automation.

How Does a Differential Pressure Transmitter Work?

The transmitter contains a sensing element that detects the pressure difference between two process connections.

When the pressure changes, the sensor converts the differential pressure into an electrical signal such as:

• 4-20mA
• HART Communication
• RS485 Modbus

This signal is then transmitted to:

• PLC systems
• DCS systems
• SCADA platforms
• Controllers and indicators

Real-time data enables operators to monitor and optimize process performance.

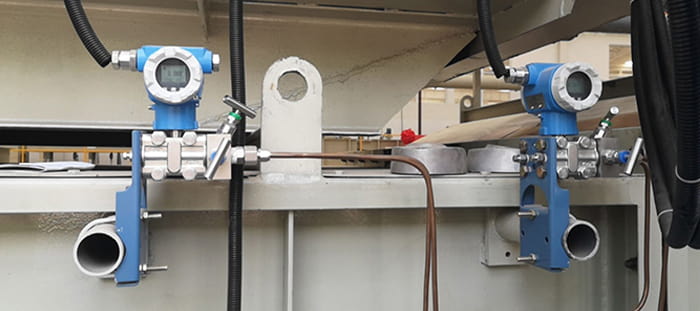

Recommended Product: PWP3051DP Smart Differential Pressure Transmitter

The PWP3051DP is designed for demanding industrial applications requiring high accuracy and long-term stability.

Key Features

• Monocrystalline silicon sensor technology
• High measurement accuracy
• Excellent long-term stability
• HART communication support
• Wide pressure range options
• Strong anti-interference capability

Typical Industries

• Oil & gas
• Chemical processing
• Water treatment
• Power generation
• Food and beverage manufacturing

Recommended Product: PWP301 Differential Pressure Transmitter

The PWP301 provides a reliable and cost-effective solution for general industrial applications.

Key Features

• Stable measurement performance
• Compact design
• Multiple output options
• Easy installation
• Industrial-grade durability

Typical Applications

• HVAC systems
• Air handling units
• Filtration systems
• Water treatment plants
• Industrial process monitoring

Application 1: Tank Level Measurement

One of the most common uses of a differential pressure transmitter is measuring liquid levels in closed tanks.

Why Use DP Level Measurement?

In pressurized vessels, conventional level sensors may be difficult to install or may provide unreliable measurements.

A differential pressure transmitter measures:

Tank Bottom Pressure − Tank Vapor Pressure = Liquid Head Pressure

This method provides accurate level measurement regardless of tank pressure changes.

Typical Applications

• Chemical storage tanks
• LPG tanks
• Process vessels
• Pressurized reactors

Application 2: Filter Monitoring

Filters gradually become clogged as contaminants accumulate.

A differential pressure transmitter can measure the pressure drop across the filter.

Benefits

• Predictive maintenance
• Reduced downtime
• Lower maintenance costs
• Improved process efficiency

As differential pressure increases, operators know the filter requires cleaning or replacement.

Typical Applications

• Water treatment filters
• Air filtration systems
• Industrial process filtration
• HVAC systems

Application 3: Flow Measurement Using Orifice Plates

Differential pressure transmitters are widely used with primary flow elements such as:

• Orifice plates
• Venturi tubes
• Flow nozzles

As fluid passes through a restriction, a pressure drop is created.

The differential pressure is used to calculate flow rate.

Advantages

• Proven technology
• Suitable for high-pressure systems
• Reliable performance
• Widely accepted industrial standard

Common Industries

• Oil & gas
• Steam systems
• Chemical processing
• Power generation

Application 4: Pump Performance Monitoring

Differential pressure measurement can help evaluate pump operation.

Operators can monitor:

• Pump efficiency
• Flow conditions
• Blockages
• Equipment wear

Unexpected pressure changes may indicate developing mechanical problems.

Application 5: HVAC Airflow Monitoring

In HVAC systems, differential pressure transmitters help monitor:

• Air duct pressure
• Filter conditions
• Fan performance
• Clean room pressure

Accurate pressure monitoring helps improve energy efficiency and indoor air quality.

Typical Facilities

• Commercial buildings
• Hospitals
• Pharmaceutical plants
• Data centers

Application 6: Water Treatment Processes

Water treatment facilities rely heavily on differential pressure measurement.

Applications include:

• Membrane filtration monitoring
• Pump station monitoring
• Pipeline pressure management
• Filter condition monitoring

Reliable DP measurement helps reduce maintenance costs while improving operational efficiency.

Why Differential Pressure Technology Remains Popular

Despite the availability of newer measurement technologies, differential pressure transmitters continue to offer several advantages:

Proven Reliability

Used successfully across industries for decades.

High Accuracy

Modern smart transmitters provide excellent measurement performance.

Versatility

A single technology can measure:

• Pressure
• Flow
• Level
• Filter condition

Easy Integration

Compatible with modern PLC, DCS, and SCADA systems.

Why Choose Pokcenser?

Pokcenser has over 10 years of experience in industrial automation and instrumentation.

Our products serve customers in more than 100 countries worldwide.

What We Offer

• CE, ISO, ATEX, and RoHS certified products
• OEM & ODM support
• Professional application engineering
• Fast technical assistance
• Competitive factory pricing
• Complete process automation solutions

Frequently Asked Questions

Q1: What is the difference between a pressure transmitter and a differential pressure transmitter?

A standard pressure transmitter measures one pressure point, while a differential pressure transmitter measures the difference between two pressure points.

Q2: Can a differential pressure transmitter measure tank level?

Yes. DP transmitters are commonly used for level measurement in pressurized and closed tanks.

Q3: Which differential pressure transmitter is best for high-accuracy applications?

The PWP3051DP Smart Monocrystalline Silicon Differential Pressure Transmitter offers excellent accuracy and stability.

Q4: Can DP transmitters be used in HVAC systems?

Yes. They are widely used for airflow monitoring, filter monitoring, and clean room pressure control.

Q5: Are Pokcenser DP transmitters compatible with PLC systems?

Yes. Models support industrial outputs such as 4-20mA, HART, and other communication options depending on configuration.
